Vitodens 100-W, B1HE/B1KE Combi Installation/Service
Function Description
Fault Messages
(continued)
Fault Messages
(continued)
Opening the Junction Box
(continued)

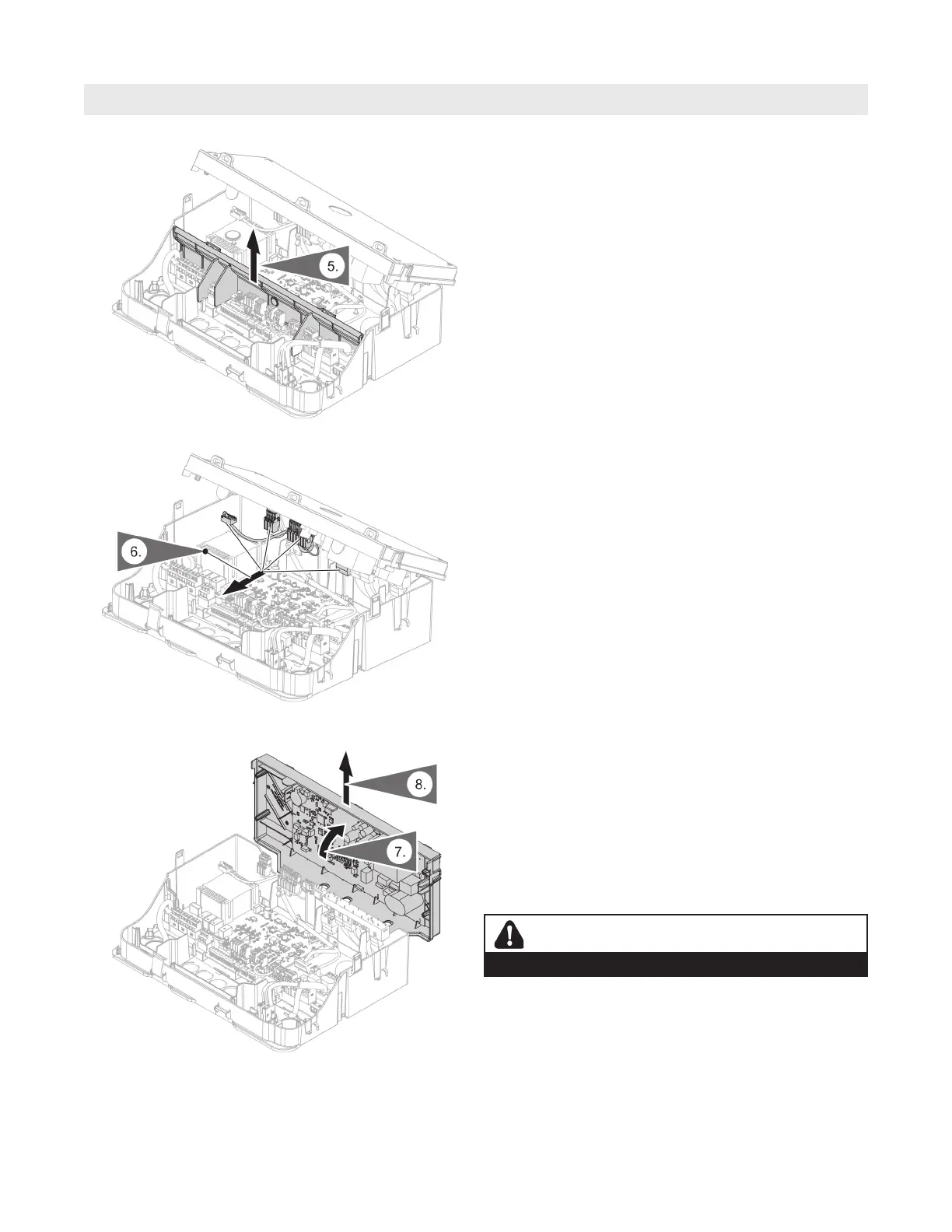

5. Now the separation wall can be removed.
Pull it vertically upwards out of the lateral guides
to its left and right.
6. The cables are now exposed and can be pulled off
the pcbs.
7. The rear cover can then be removed and the circuit
boards are fully visible.
The interlock must be observed.
8. Lift up
Refit in reverse order
When assembling the separation wall, in addition to
the lateral guides, pay attention to the latching with
the rear cover.
WARNING
Errors in assembly can result in a leaking air box.
