41
Note
■
Provide thermal insulation of sufficient thickness on
the pipework to the outdoor air: See table on
page 28.
■
Protect the pipework against damage. Avoid trip haz-
ards.
Wall mounting: Only permissible for types ...A04 to A13
Installation should only be performed with the bracket
set for wall mounting (accessories).
Separate installation instructions for mounting
bracket set for wall-mounting
Danger
Incorrect installation can lead to equipment
damage and personal injury, e.g. if the outdoor
unit falls down or falls over.
Only install the outdoor unit in accordance with
the specifications in these instructions.

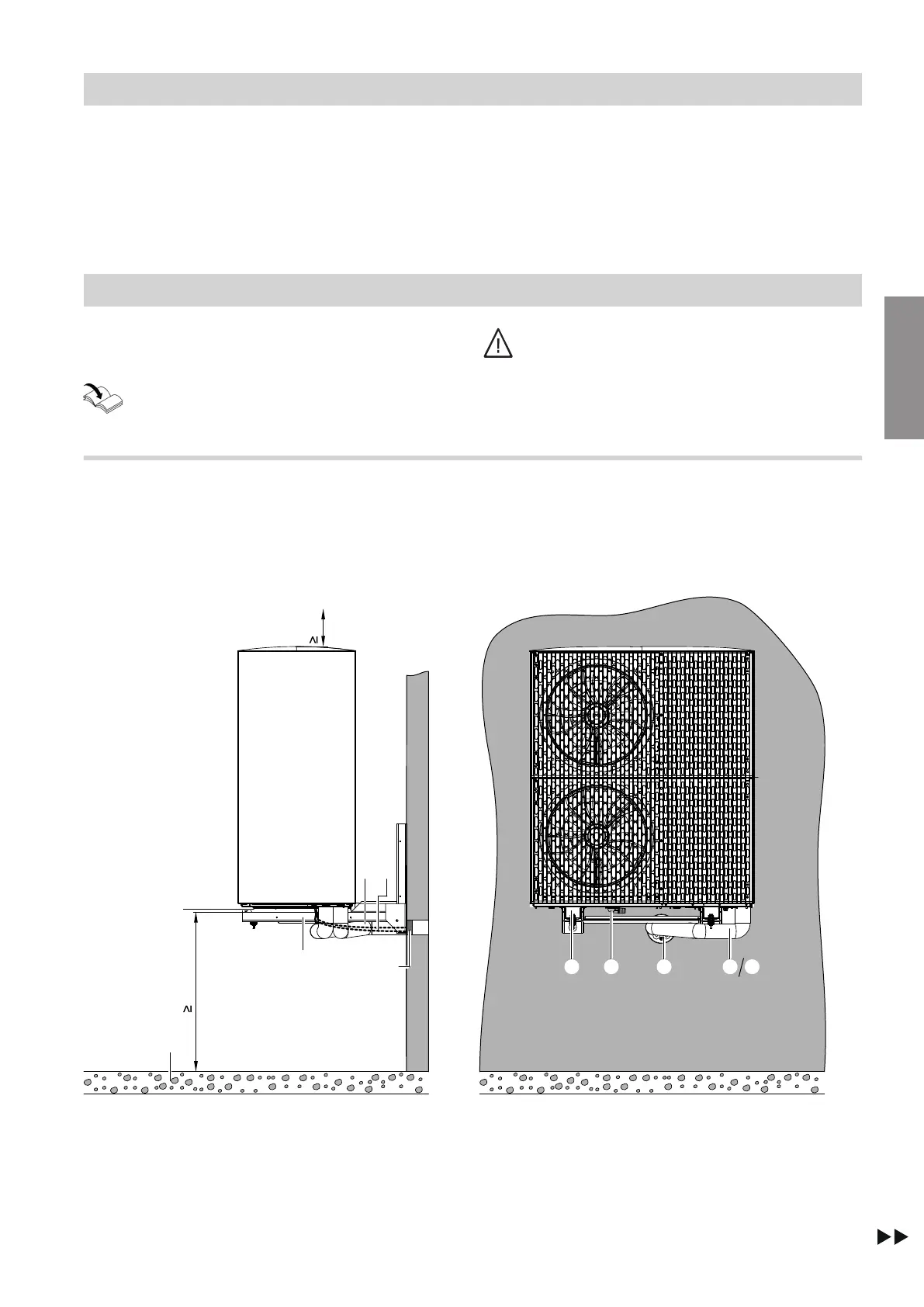

Installation with bracket set for wall mounting
Note
The following information for wall mounting applies to
outdoor units with 1 or 2 fans. The outdoor unit with
2 fans is shown as an example.
Fig. 26
A
Gravel bed as condensate soakaway
B
Connection set for wall mounting bracket (acces-
sories)
C
Indoor/outdoor unit CAN bus communication cable
and outdoor unit power cable:
Route the cables free of strain.
D
Wall outlet (accessories) for electrical cables and
hydraulic lines
Siting the outdoor unit
Floorstanding installation (cont.)
6222080
Installation
