Viessmann Vitocal 252-A Series - Page 49

49
1926
A
B
2200

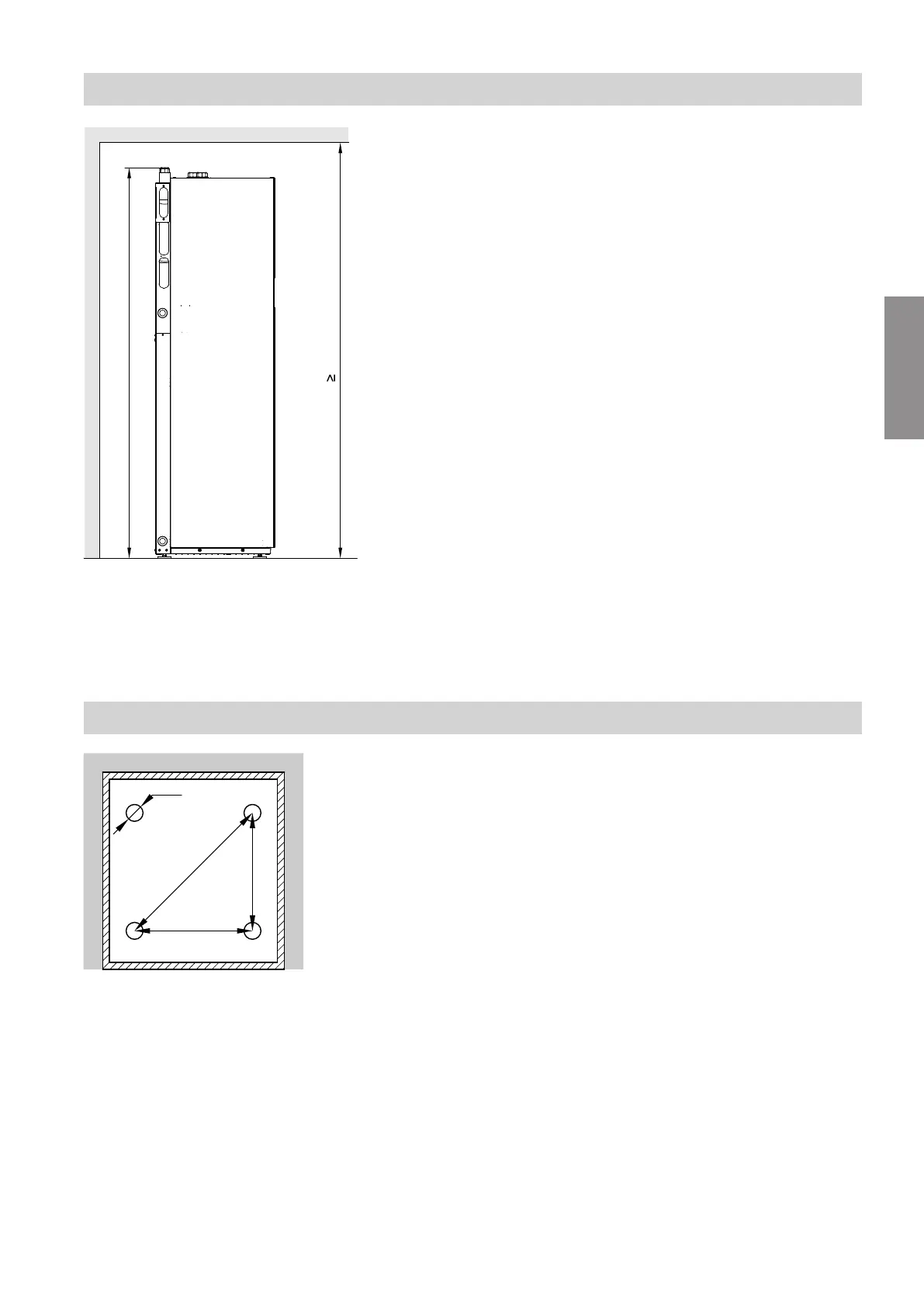

Fig. 34
A
Indoor unit with integral DHW cylinder
B
Finished floor level or top edge of platform for
unfinished floors
Note
Remove the packaging upwards before positioning.
Pressure points
b
Ø d
c
a
Fig. 35
a 478 mm
b 478 mm
c 677 mm
d 64 mm
Note
■
Observe the permissible floor load.
■
Level the appliance horizontally.
■
If the adjustable feet are used to compensate for an
uneven floor (max. 10 mm), distribute the pressure
load on the individual feet evenly.
Installing the indoor unit
Minimum room height
6222080
Installation
