17

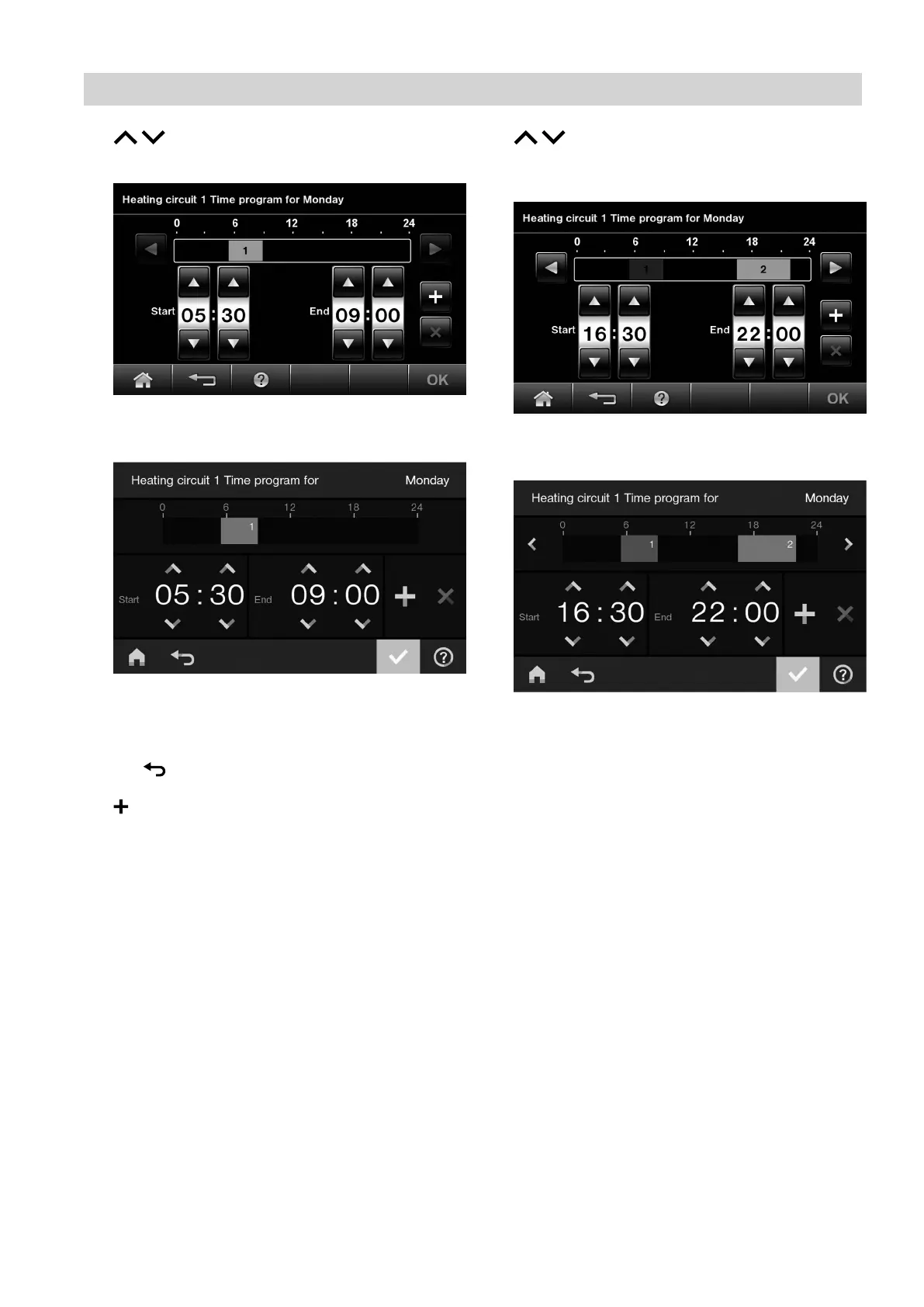

07. / for the start and end point of time phase 1.
The bar in the time diagram is adjusted.
Fig. 8 HO2B
Fig. 9 HO2C
Cancelling the setting of a time phase early
Tap .
08. to create time phase 2.
09. / for the start and end point of time phase 2.
The bar in the time diagram is adjusted (displayed
differently depending on the type of control unit).
Fig. 10 HO2B
Fig. 11 HO2C
Operation
Time program (cont.)
5811580
