22

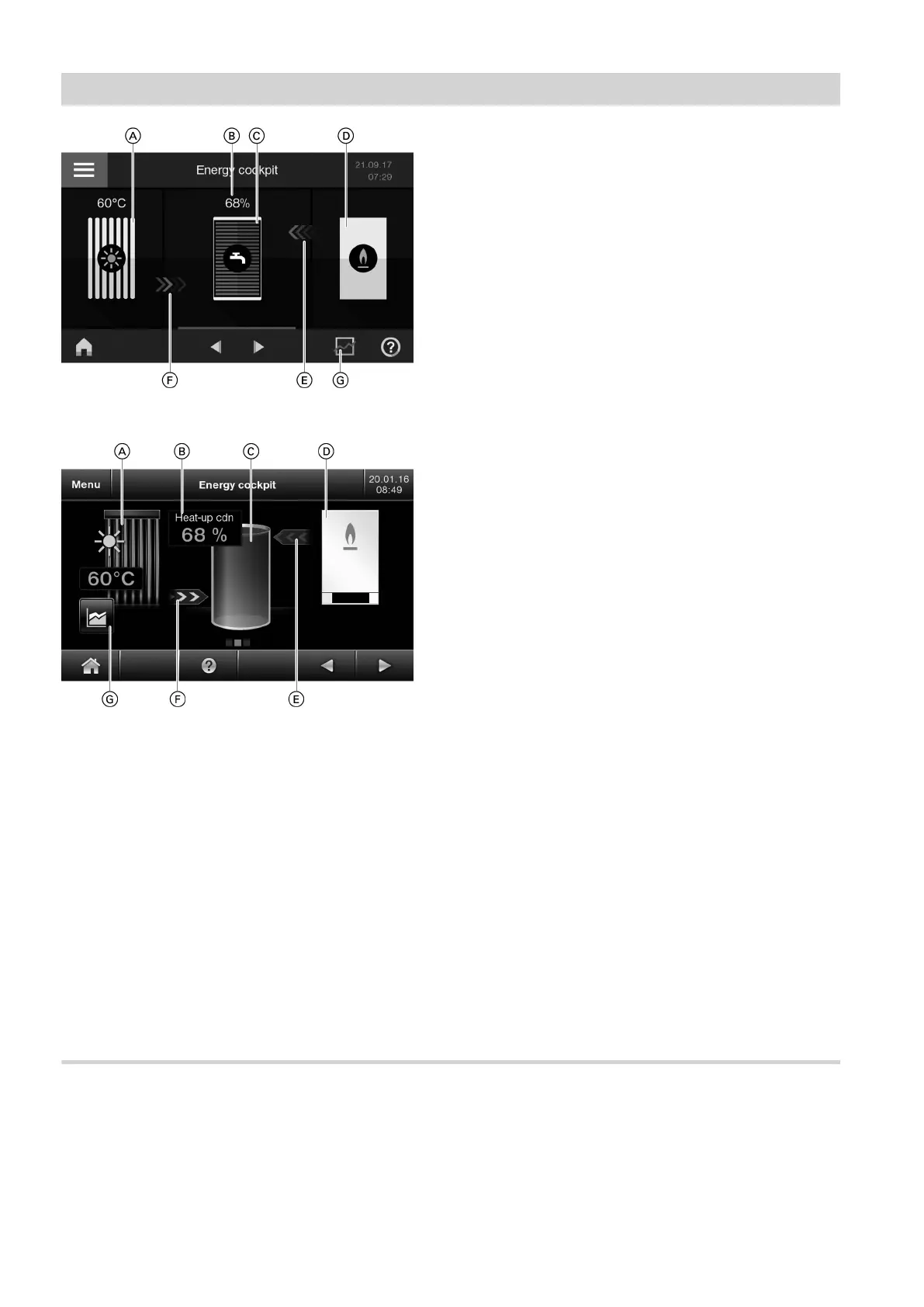

Fig. 19 HO2C
Fig. 20 Image showing HO2B with Vitodens 300
A
Solar thermal system
Call up energy yield (see page 23)
B
Heat-up condition of the DHW cylinder
Display according to type of DHW cylinder
C
DHW cylinder
Call up temperatures and heat-up condition (see
page 24)
D
Heat generator (boiler)
Call up energy status (see page 25)
E
Heating of DHW cylinder by heat generator is
active (red and moving)
F
Heating of DHW cylinder by solar thermal system
is active (yellow and moving)
G
Call up energy statement for solar thermal system
(see page 23)
Note
The depiction of the heat generator and the DHW cyl-
inder depends on the products present in the system.
In case of heat generators with integral DHW cylin-
ders, the DHW cylinder is shown inside the heat gen-
erator.
Temperature of the solar thermal system
The current temperature of the solar thermal system is
permanently displayed in the Energy cockpit default
display.
Operation
Energy cockpit (cont.)
5811580
