Product Delivery
Vitorond boilers from size VR2-40 to VR2-63 are shipped in a crate with separate
boiler jacketry.
Product delivery
Ensure each of the f ollowing has been
delivered:
H Crate with boiler casting
H Carton with insulation jacket
including:
- Carton with standard equipment
- Package with boiler ID hardware
(coding card and technical literature,
includedinstandardequipment
carton)
- Cleaning brush.
Other equipment
The following components, which are
ordered and packaged separately, are
also required:
H Carton with boiler control unit
H Carton with oil burner
H Carton with burner hood

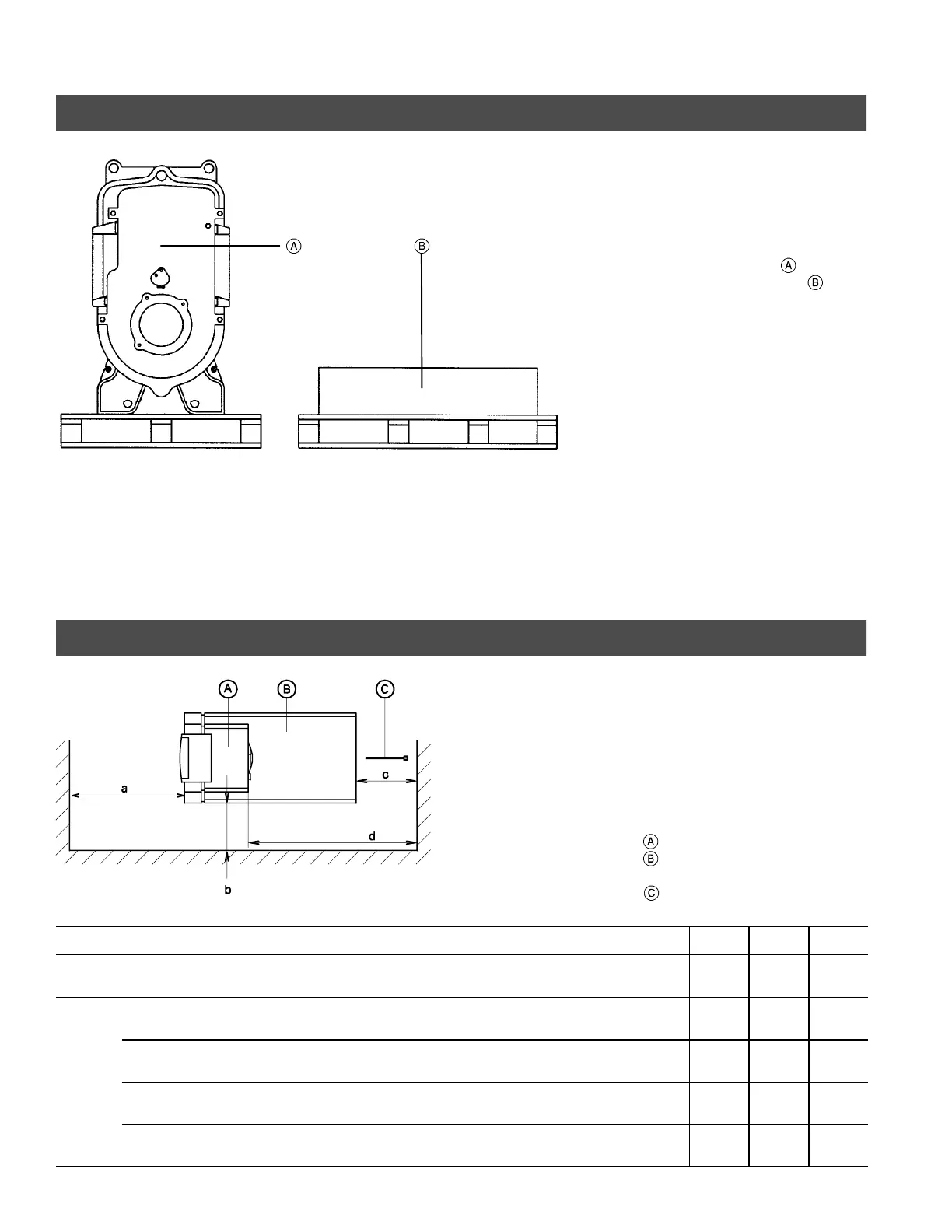

Recommended Minimum Clearances for Service
Boiler
Vitocell domestic
hot water storage tank
Sensor well for storage tank
Boiler Model
VR2 -40 -50 -63
Dim a: Necessary clearance in front of the boiler
for maintenance and serv ice
inches
mm
36
900
36
900
36
900
Dim b: Necessary clearance beside the boiler
Ensure sufficient clearance if inst alling D ivicon
inches
mm
24
600
24
600
24
600
Dim c: Necessary clearance behind a Vitocell-H
installed below the boiler
inches
mm
17¾
45
17¾
450
17¾
450
Dim d: Ensure adequate clearance for Divicon or other accessories; minimum clearances
(no Vitocell-H installed below the boiler)
inches
mm
24
600
24
600
24
600
Top: inches
mm
24
600
24
600
24
600
