Insulation
13
Mounting Insulation
All hardware necessary to mount the insulation can be found in the carton in which
the insulation in packaged.

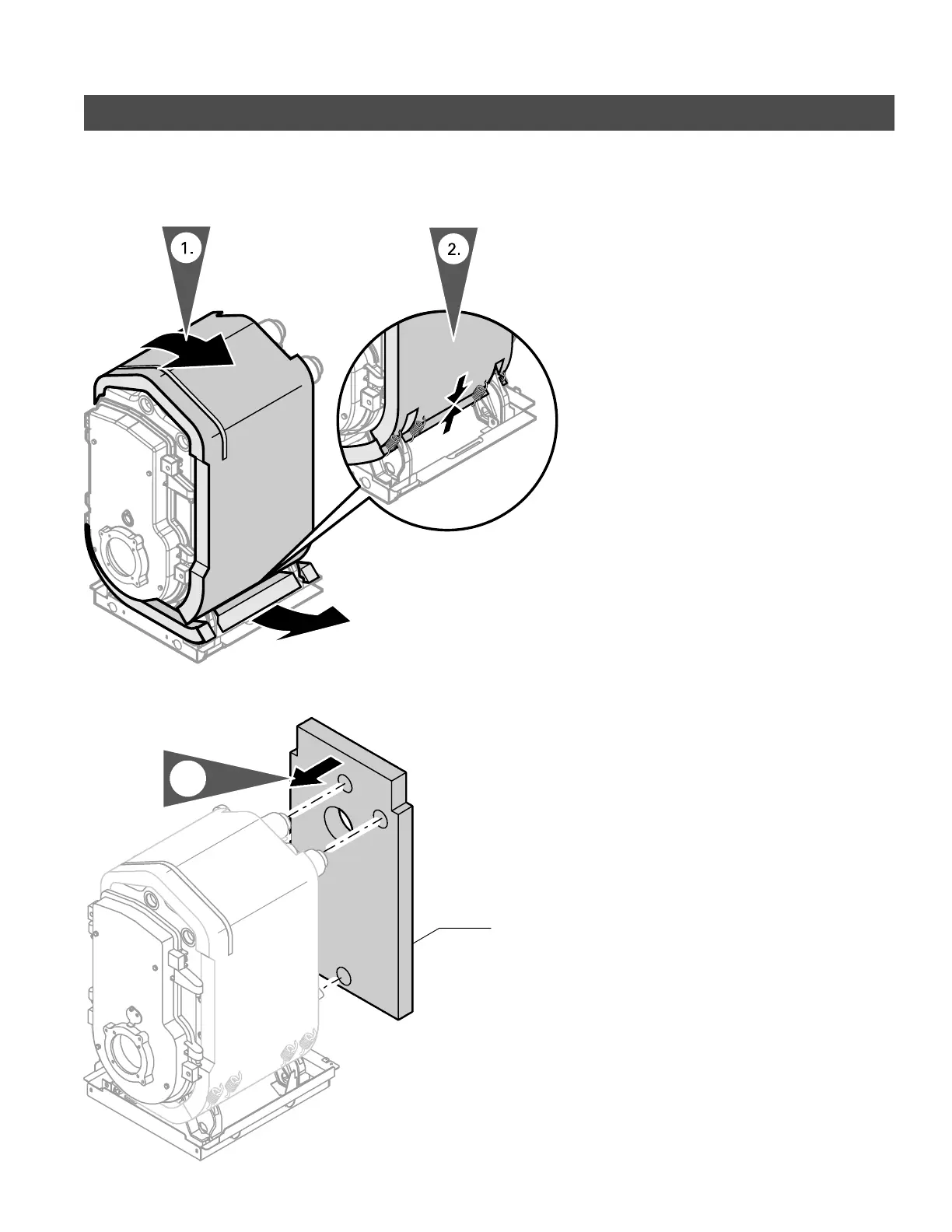

1. Wrap insulation around cast-iron
block (nylon backing facing outward)
and between the boiler and the base
panel. Ensure two cut-outs are
oriented toward the front.
2. Fasten the insulation using four
spring-clips. Ensure the seam is
approx. one third from the bottom of
the boiler.
3. Attach rear insulation blanket to
boiler as s hown (nylon backing facing
outward).
5285 838 v2.1
3.
A
