ViewSonic PA503SP User Manual

13
Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
In the connections shown below, some cables may not be included with the projector (see
"Shipping contents" on page 4). They are commercially available from electronics stores.

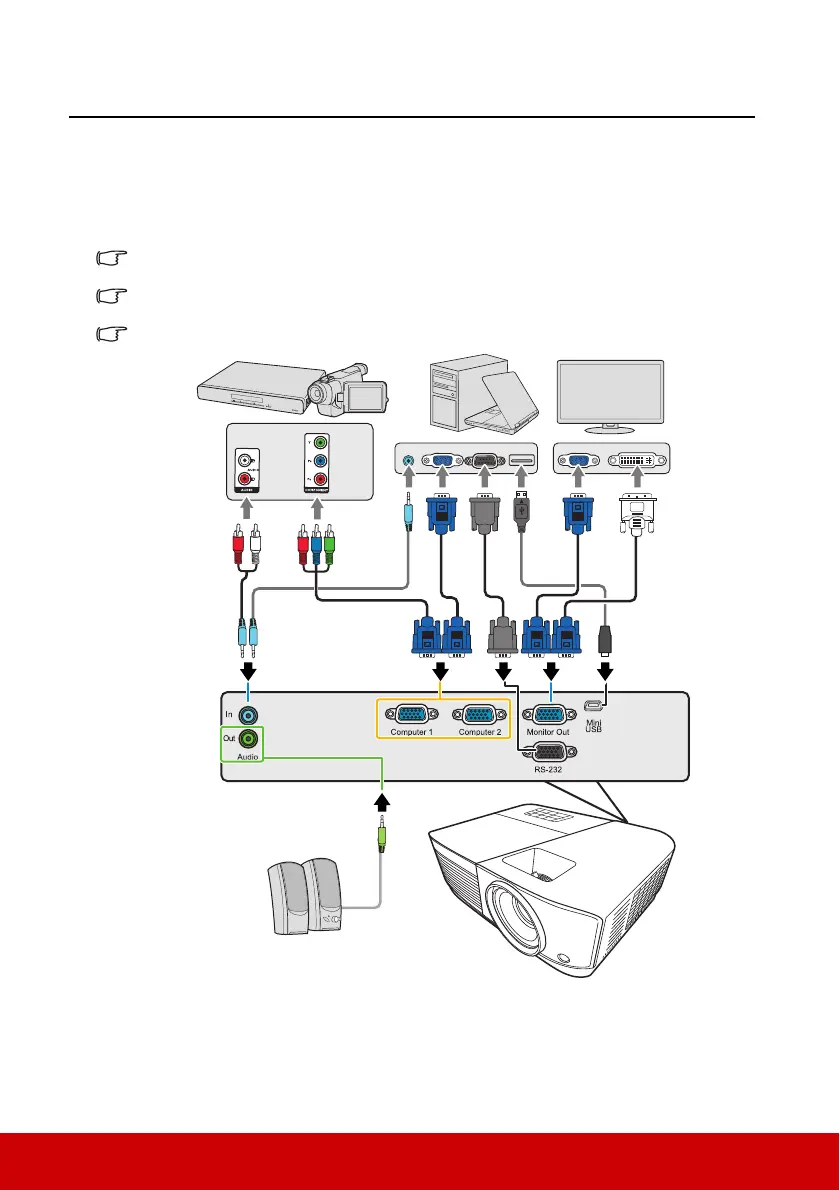

The connection illustrations below are for reference only. The connecting jacks available on
the projector vary with each projector model.
For detailed connection methods, see pages 14-17.
PA500S/PA500X

ViewSonic PA503SP Specifications

General

Type	lamp
Color	white
Display	dlp
White Brightness	3500 lumens
Resolution	600p
Native Resolution	800 x 600
Contrast Ratio	22000:1
Aspect Ratio	4:3
Throw Ratio Range	1.96 - 2.15:1
3D	yes
Minimum Screen Size	29.9 inches
Maximum Screen Size	300 inches
Focus Adjustment	manual
HDMI Ports	1
RS-232 Port	1
Video Input	vga, composite video, hdmi
Inputs	mini-usb, hdmi, vga, composite video, rca, 3.5mm audio
Remote Control	yes
OS Compatibility	mac, windows

Weight and Dimensions

Depth	8.6 inches
Height	4.3 inches
Width	11.6 inches
Net Weight	4.9 pounds
