52

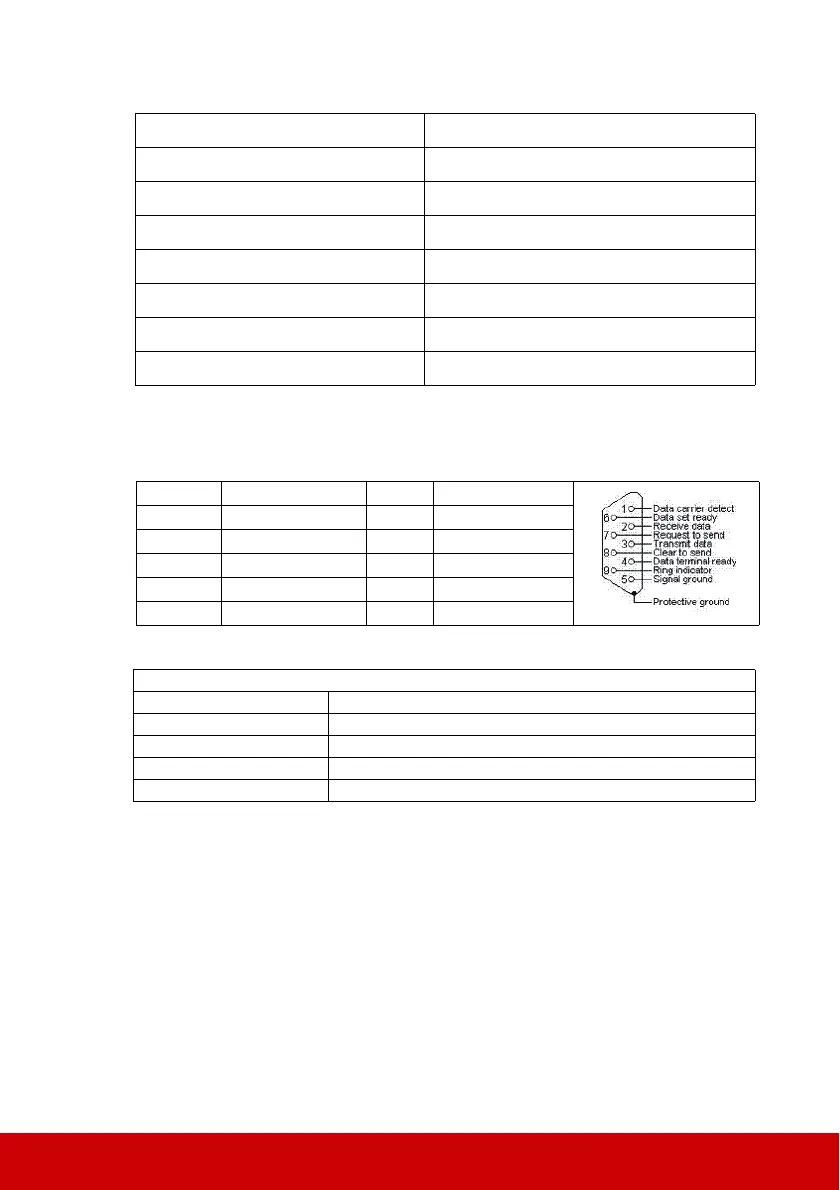

Address code
RS232 command table
<Pin assignment for this two end>
<Interface>
Code 1 83F4
Code 2 93F4
Code 3 A3F4
Code 4 B3F4
Code 5 C3F4
Code 6 D3F4
Code 7 E3F4
Code 8 F3F4
Pin Description Pin Description
1NC2RX
3TX4NC
5GND6NC
7RTSZ8CTSZ
9NC
RS-232 protocol
Baud Rate 115200 bps (default)
Data Length 8 bit
Parity Check None
Stop Bit 1 bit
Flow Control None
