ViewSonic PG603W User Manual

6

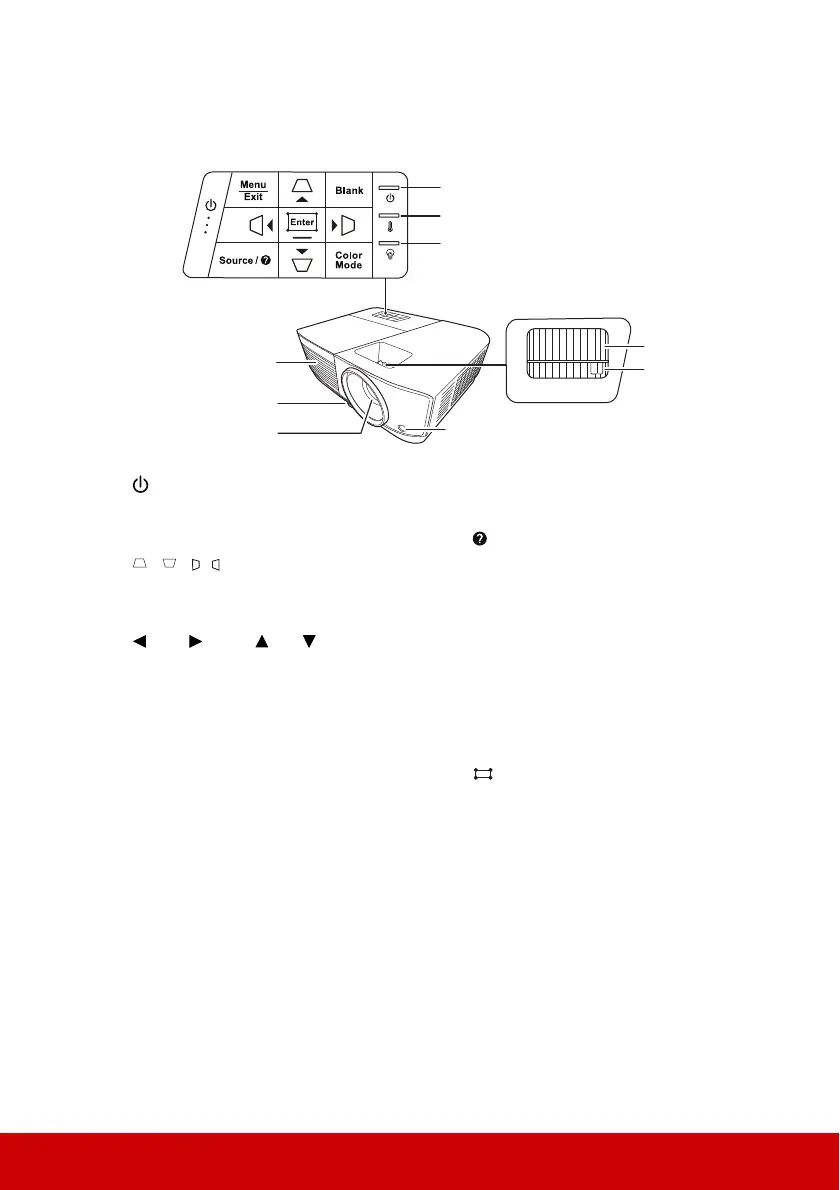

Controls and functions
Projector
•Power
Toggles the projector between standby
mode and Power ON.
• / / / (Keystone keys)
Manually corrects distorted images
resulting from an angled projection.
• Left/ Right/ Up/ Down
Selects the desired menu items and makes
adjustments when the On-Screen Display
(OSD) menu is activated.
•Menu
Turns on the On-Screen Display (OSD)
menu.
•Exit
Goes back to previous OSD menu, exits
and saves menu settings.
• Source
Displays the source selection bar.
• (Help)
Displays the HELP menu with a long
press for 3 seconds.
•Blank
Hides the screen picture.
•Enter
Enacts the selected On-Screen Display
(OSD) menu item when the On-Screen
Display (OSD) menu is activated.
•
Displays the Corner Adj. page.
•Color Mode
Selects an available picture setup mode.
Focus ring
Power indicator light
Lamp indicator light
Temperature indicator light
Zoom ring
Adjuster foot
Projection lens
IR remote sensor
Vent (heated air
exhaust)

ViewSonic PG603W Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1 - 11 m
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Projection technology	DLP
Contrast ratio (dynamic)	22000:1
Contrast ratio (typical)	-
Screen size compatibility	30 - 300 \
Projector native resolution	720p (1280x720)
Keystone correction, vertical	-30 - 30 °
Keystone correction, horizontal	-20 - 20 °
RMS rated power	10 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	15000 h
Built-in display	No
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	270 W
Throw ratio	1.55 - 1.7
Optical zoom	1.1 x
Focal length range	- mm
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Noise level	- dB
Certification	FCC, cTUVus, NOM
Cables included	AC, VGA
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	218 mm
Width	294 mm
Height	110 mm
Weight	2300 g
Package depth	300 mm
Package width	365 mm
Package height	188 mm
Package weight	3300 g
