Operation

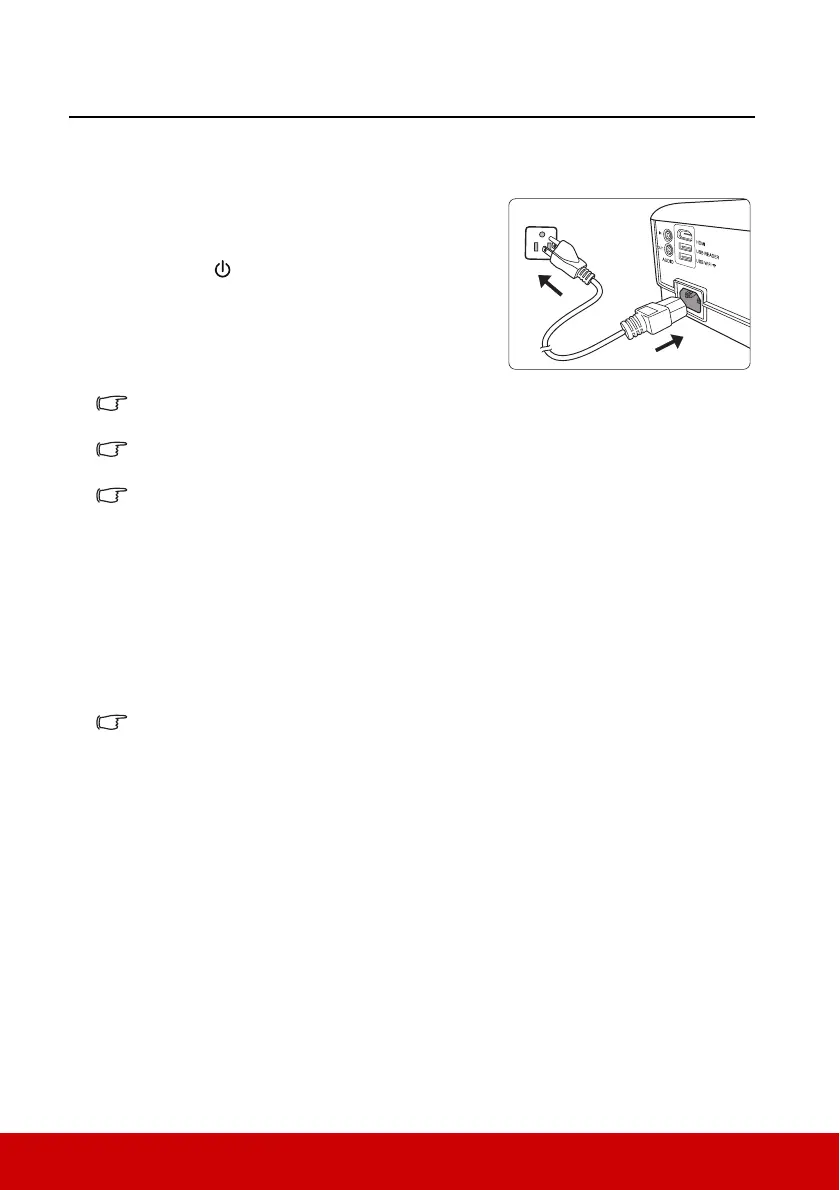

Starting up the projector
1. Plug the power cord into the projector and into a
wall socket. Turn on the wall socket switch
(where fitted).
2. Press Power to start the projector. As soon as
the lamp lights up, a "Power On Ring Tone" will
be heard. The Power indicator light stays blue
when the projector is on.
(If necessary) Rotate the focus ring to adjust the
image clearness.
If the projector is still hot from previous activity, it will run the cooling fan for approximately 90
seconds before energizing the lamp.
To maintain the lamp life, once you turn the projector on, wait at least 5 minutes before turning
it off.
To turn off the ring tone, see "Turning off the Power On/Off Ring Tone" on page 42 for details.
3. If the projector is activated for the first time, select your OSD language following the
on-screen instructions.
4. Switch all of the connected equipment on.
5. The projector will start to search for input signals. The current input signal being
scanned appears in the bottom right corner of the screen. If the projector doesn't detect
a valid signal, the message 'No Signal' will continue to be displayed until an input
signal is found.
You can also press Source to select your desired input signal. See "Switching input
signal" on page 24 for details.
If the frequency/resolution of the input signal exceeds the projector's operating range, you will
see the message 'Out of Range' displayed on a blank screen. Please change to an input signal
which is compatible with the projector's resolution or set the input signal to a lower setting.
See "Timing chart" on page 75 for details.

ViewSonic PG603W Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1 - 11 m
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Projection technology	DLP
Contrast ratio (dynamic)	22000:1
Contrast ratio (typical)	-
Screen size compatibility	30 - 300 \
Projector native resolution	720p (1280x720)
Keystone correction, vertical	-30 - 30 °
Keystone correction, horizontal	-20 - 20 °
RMS rated power	10 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	15000 h
Built-in display	No
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	270 W
Throw ratio	1.55 - 1.7
Optical zoom	1.1 x
Focal length range	- mm
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Noise level	- dB
Certification	FCC, cTUVus, NOM
Cables included	AC, VGA
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	218 mm
Width	294 mm
Height	110 mm
Weight	2300 g
Package depth	300 mm
Package width	365 mm
Package height	188 mm
Package weight	3300 g
