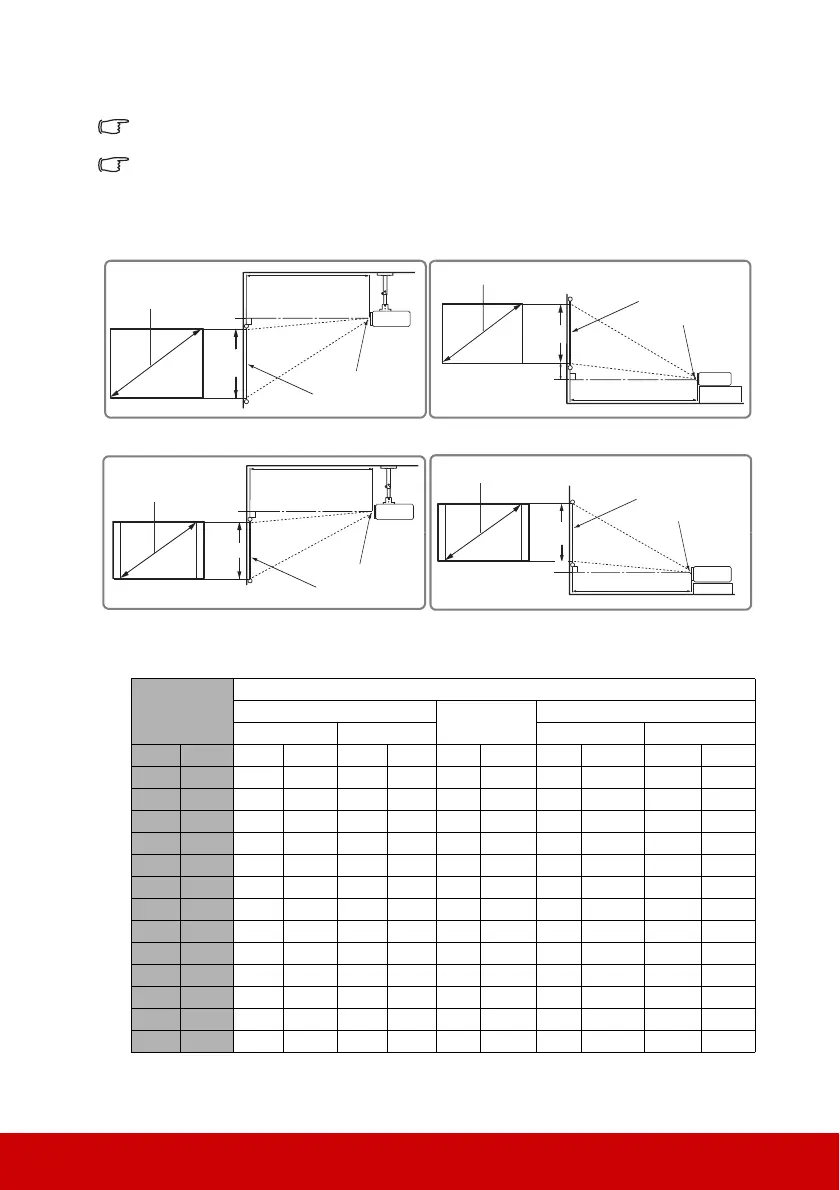

Projection dimensions
The "screen" mentioned below refers to the projection screen usually consisting of a screen
surface and a support structure.
Please see "Projector specifications" on page 79 for the native display resolution of this
projector.
PG603X
(a)
(d)
(b)
(e)
(f)
(c)
(a)
(d)
(c)
(b)
(e)
(f)
(a)
(c)
(b)
(e)
(f)
(d)
(f): Center of lens(e): Screen
• 4:3 image on a 4:3 screen
• 4:3 image on a 16:10 screen
(a)
(d)
(c)
(b)
(e)
(f)
(a) Screen Size
4:3 image on a 4:3 Screen
(b) Projection distance
(c) Image
height
(d) Vertical offset
min. max. min. max.
inch mm inch mm inch mm inch mm inch mm inch mm
60 1524 94 2385 103 2623 36 914 3.6 91.4 3.6 91
70 1778 110 2782 120 3060 42 1067 4.2 106.7 4.2 107
80 2032 125 3179 138 3497 48 1219 4.8 121.9 4.8 122
90 2286 141 3577 155 3935 54 1372 5.4 137.2 5.4 137
100 2540 156 3974 172 4372 60 1524 6.0 152.4 6.0 152
110 2794 172 4372 189 4809 66 1676 6.6 167.6 6.6 168
120 3048 188 4769 207 5246 72 1829 7.2 182.9 7.2 183
130 3302 203 5167 224 5683 78 1981 7.8 198.1 7.8 198
140 3556 219 5564 241 6121 84 2134 8.4 213.4 8.4 213
150 3810 235 5962 258 6558 90 2286 9.0 228.6 9.0 229
160 4064 250 6359 275 6995 96 2438 9.6 243.8 9.6 244
170 4318 266 6756 293 7432 102 2591 10.2 259.1 10.2 259
180 4572 282 7154 310 7869 108 2743 10.8 274.3 10.8 274

ViewSonic PG603W Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1 - 11 m
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Projection technology	DLP
Contrast ratio (dynamic)	22000:1
Contrast ratio (typical)	-
Screen size compatibility	30 - 300 \
Projector native resolution	720p (1280x720)
Keystone correction, vertical	-30 - 30 °
Keystone correction, horizontal	-20 - 20 °
RMS rated power	10 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	15000 h
Built-in display	No
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	270 W
Throw ratio	1.55 - 1.7
Optical zoom	1.1 x
Focal length range	- mm
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Noise level	- dB
Certification	FCC, cTUVus, NOM
Cables included	AC, VGA
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	218 mm
Width	294 mm
Height	110 mm
Weight	2300 g
Package depth	300 mm
Package width	365 mm
Package height	188 mm
Package weight	3300 g
