Positioning your projector
Choosing a location
Your room layout or personal preference will dictate which installation location you select.
Take into consideration the size and position of your screen, the location of a suitable power
outlet, as well as the location and distance between the projector and the rest of your
equipment.

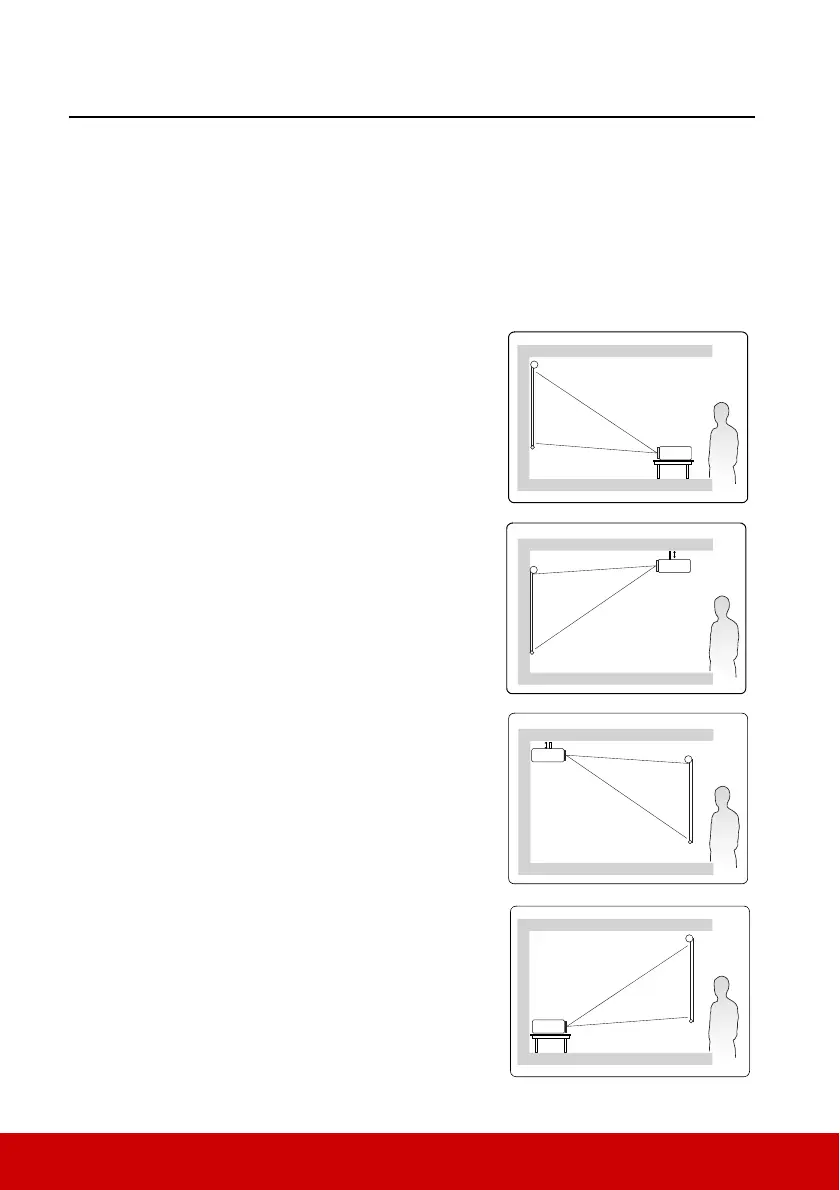

Your projector is designed to be installed in one of the following possible installation
locations:
1. Front Table
Select this location with the projector placed near
the floor in front of the screen. This is the most
common way to position the projector for quick
setup and portability.
2. Front Ceiling
Select this location with the projector suspended
upside-down from the ceiling in front of the screen.
Purchase the projector ceiling mount kit from your
dealer to mount your projector on the ceiling.
Set Front Ceiling in the SYSTEM > Projector
Position menu after you turn the projector on.
3. Rear Ceiling
Select this location with the projector suspended
upside-down from the ceiling behind the screen.
Note that a special rear projection screen and the
projector ceiling mounting kit are required for this
installation location.
Set Rear Ceiling in the SYSTEM > Projector
Position menu after you turn the projector on.
4. Rear Table
Select this location with the projector placed near
the floor behind the screen.
Note that a special rear projection screen is
required.
Set Rear Table in the SYSTEM > Projector
Position menu after you turn the projector on.

ViewSonic PG603W Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1 - 11 m
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Projection technology	DLP
Contrast ratio (dynamic)	22000:1
Contrast ratio (typical)	-
Screen size compatibility	30 - 300 \
Projector native resolution	720p (1280x720)
Keystone correction, vertical	-30 - 30 °
Keystone correction, horizontal	-20 - 20 °
RMS rated power	10 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	15000 h
Built-in display	No
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	270 W
Throw ratio	1.55 - 1.7
Optical zoom	1.1 x
Focal length range	- mm
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Noise level	- dB
Certification	FCC, cTUVus, NOM
Cables included	AC, VGA
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	218 mm
Width	294 mm
Height	110 mm
Weight	2300 g
Package depth	300 mm
Package width	365 mm
Package height	188 mm
Package weight	3300 g
