7

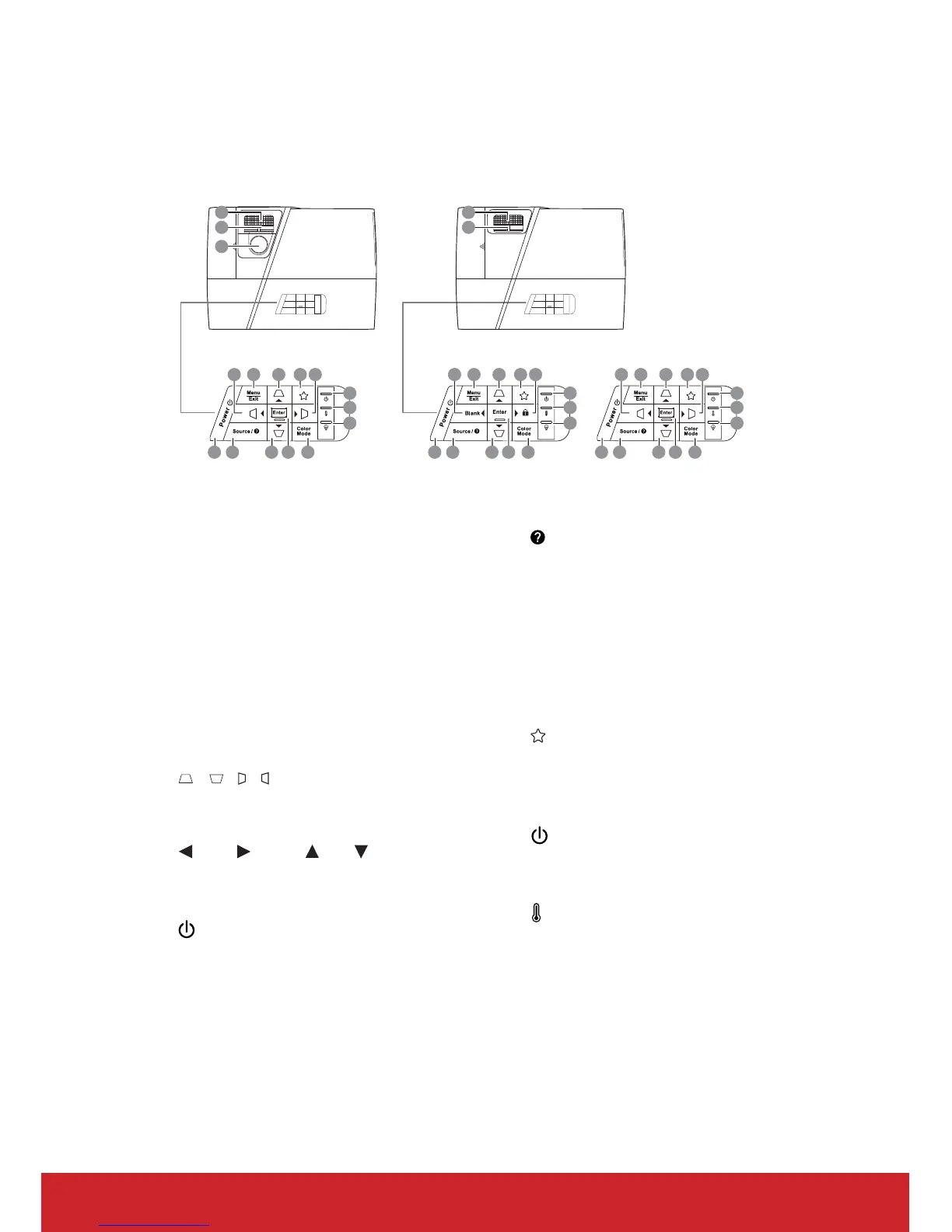

Controls and functions
Projector
1. Focus ring
Adjusts the focus of the projected image.
2. Zoom ring
Adjusts the size of the projected image.
3. Lens shift wheel
Shifts the projection lens vertically.
4. Menu
Turns on the On-Screen Display (OSD)
menu.
Exit
Goes back to previous OSD menu, exits
and saves menu settings.
5. / / / (Keystone keys)
Manually corrects distorted images
resulting from an angled projection.
Left/ Right/ Up/ Down
Selects the desired menu items and makes
adjustments.
6. Power
Toggles the projector between standby
mode and Power ON.
7. Source
Displays the source selection bar.
(Help)
Displays the HELP menu by a long press
for 3 seconds.
8. Enter
Enacts the selected On-Screen Display
(OSD) menu item.
Displays the Corner Adj. page.
(PJD7831HDL/PJD
îî36HDL only)
9. (My Button)
Allows user to define a short cut key on
this button, and the function item is
selected in OSD menu.
10. (Power indicator light)
Lights up or flashes when the projector is
under operation.
11. (Temperature indicator light)
Lights up red if the projector's
temperature becomes too high.
PJD7836HDL
PJD7836HDL
PJD7828HDL/PJD7831HDL
PJD7828HDL
PJD7831HDL
1
2
3
55 54
76 5 13
9
11
10
12
8
55 54
76 5 13
9
11
10
12
8
4
76 1314
9
11
10
12
1415 16
8
1
2
