ViewSonic PJD7828HDL User Manual

24
Using the menus
The projector is equipped with On-Screen Display (OSD) menus for making various
adjustments and settings.
The OSD screenshots below are for reference only, and may differ from the actual design.

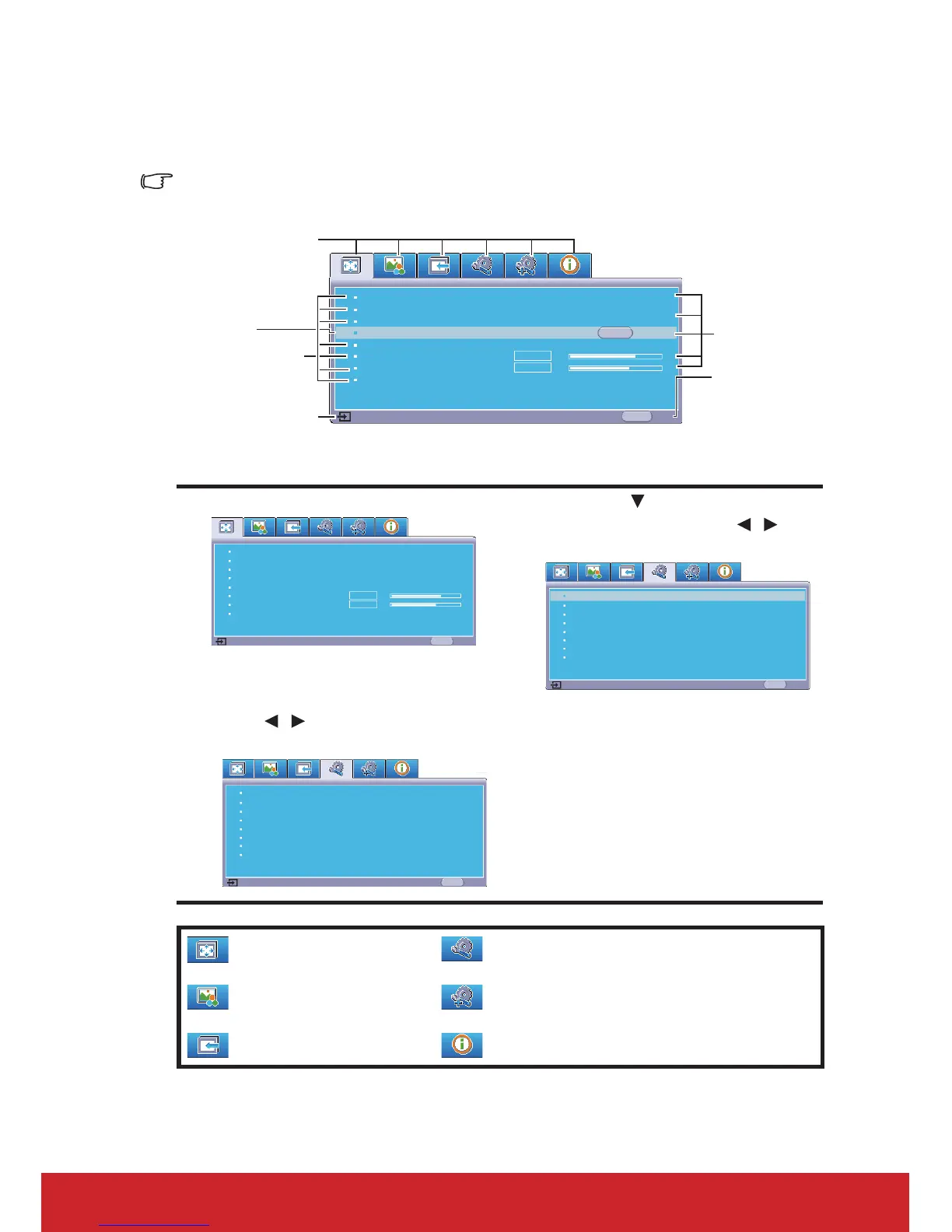

Below is the overview of the OSD menu.
To use the OSD menus, please select your language first.
1. Press Menu to turn the OSD menu on.
3. Press to highlight
Language and press / to
select a preferred language.
2. Use / to highlight the SYSTEM
SETTING: BASIC menu.
4. Press Exit twice* to leave and
save the settings.
*The first press leads you back
to the main menu and the
second press closes the OSD
menu.
: DISPLAY
: PICTURE
: SOURCE
: SYSTEM SETTING: BASIC
: SYSTEM SETTING: ADVANCED
: INFORMATION
Current input
signal
Main menu icon
Sub-menu
Highlight
Go to the
previous page
or to exit.
Status
Screen Color
Aspect Ratio
Phase
H. Size
Zoom
Off
Auto
16
0
MENU Exit
Analog RGB
ENTER
Keystone
Position
Corner Adj.
Screen Color
Aspect Ratio
Corner Adj.
Phase
H. Size
Zoom
Off
Auto
MENU
Exit
Keystone
16
0
Analog RGB
Position
Projector Position
Menu Settings
Blank Timer
Screen Capture
Splash Screen
My Button
Analog RGB
MENU
Exit
Front Table
Disable
ViewSonic
Auto
EnglishLanguage
Advanced
Projector Position
Menu Settings
Blank Timer
Screen Capture
Splash Screen
My Button
Analog RGB
MENU Exit
Front Table
Disable
ViewSonic
Auto
EnglishLanguage
Advanced
