Positioning Your SC-T35
9
Step 2: Understand Your Stand / VESA Mount Kit for SC-T35
The stand for your SC-T35 is dual-purpose: it can be used as a stand or as a VESA mount kit. All screws of dierent
types supplied with the stand / VESA mount kit can be stored away inside the main bracket when not needed.
Screws Stored Away inside the Bracket

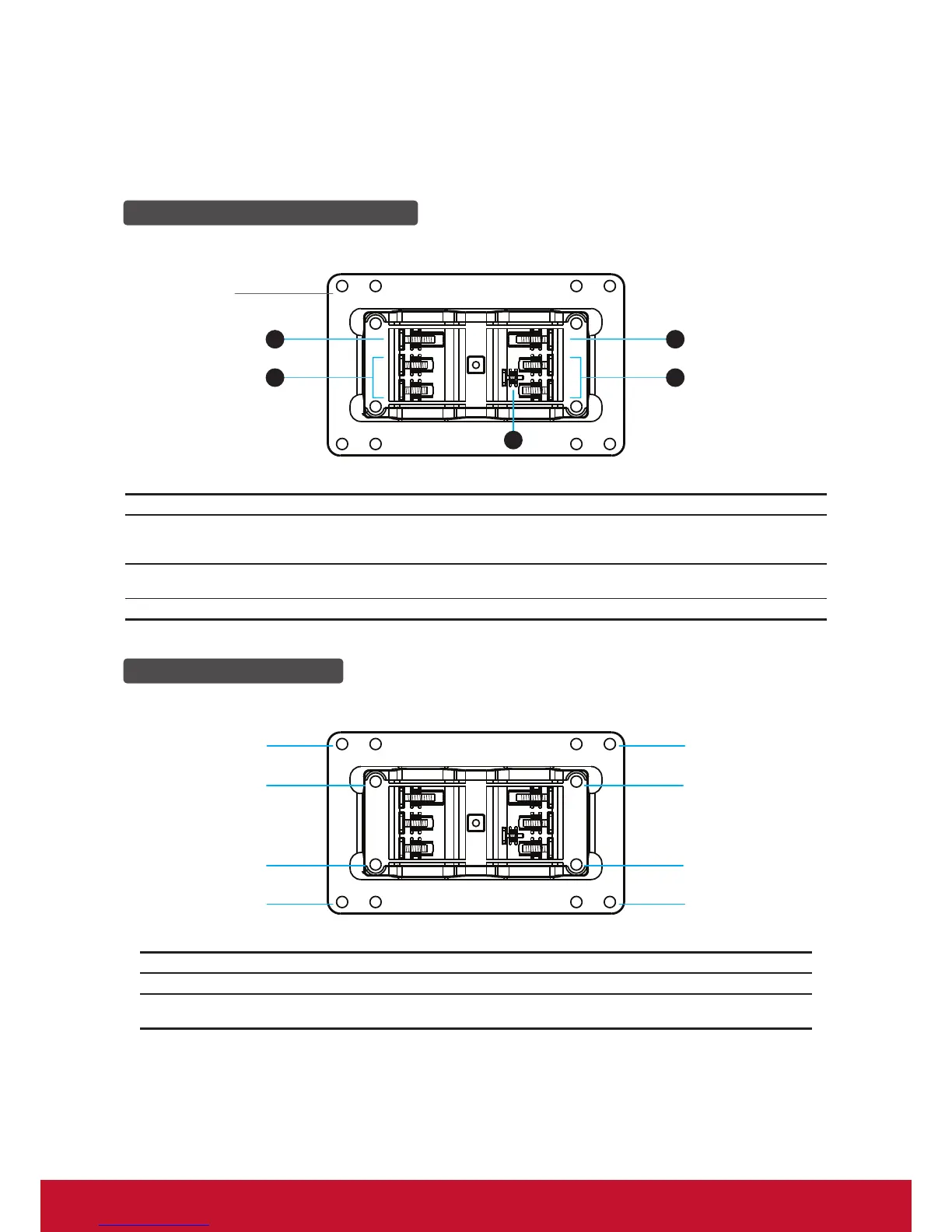

The following gure shows dierent types of screws stored away inside the main bracket.
Screw Type Number Description
1 2
The largest-size screws used to secure the bracket to a monitor as a VESA mount
ifthemiddle-sizescrewscannotrmlysecurethebracketandyourSC-T35tothe
monitor.
2 4
The middle-size screws used to secure the bracket to your SC-T35 and to a monitor
when using the bracket as a VESA mount.
3 1 The smallest-size screw used to secure the bracket to your SC-T35 as a stand.
Mount Holes on the Bracket
Refer to the following gure and descriptions for the VESA mount holes on the bracket.
Mount Hole Description
1 The VESA mount holes used to secure the bracket to a monitor (only two of them will be used).
2
The VESA mount holes used to secure the bracket to your SC-T35 (only two of them will be
used).
