Operator Positioning
! IMPORTANT: All openings of a horizontal slide gate are guarded or screened from the
bottom of the gate to a minimum of 6 feet (1.83 m) above the ground to prevent a 2-1/4
inch (57.2 mm) diameter sphere from passing through the openings anywhere in the gate,
and in that portion of the adjacent fence that the gate covers in the open position.

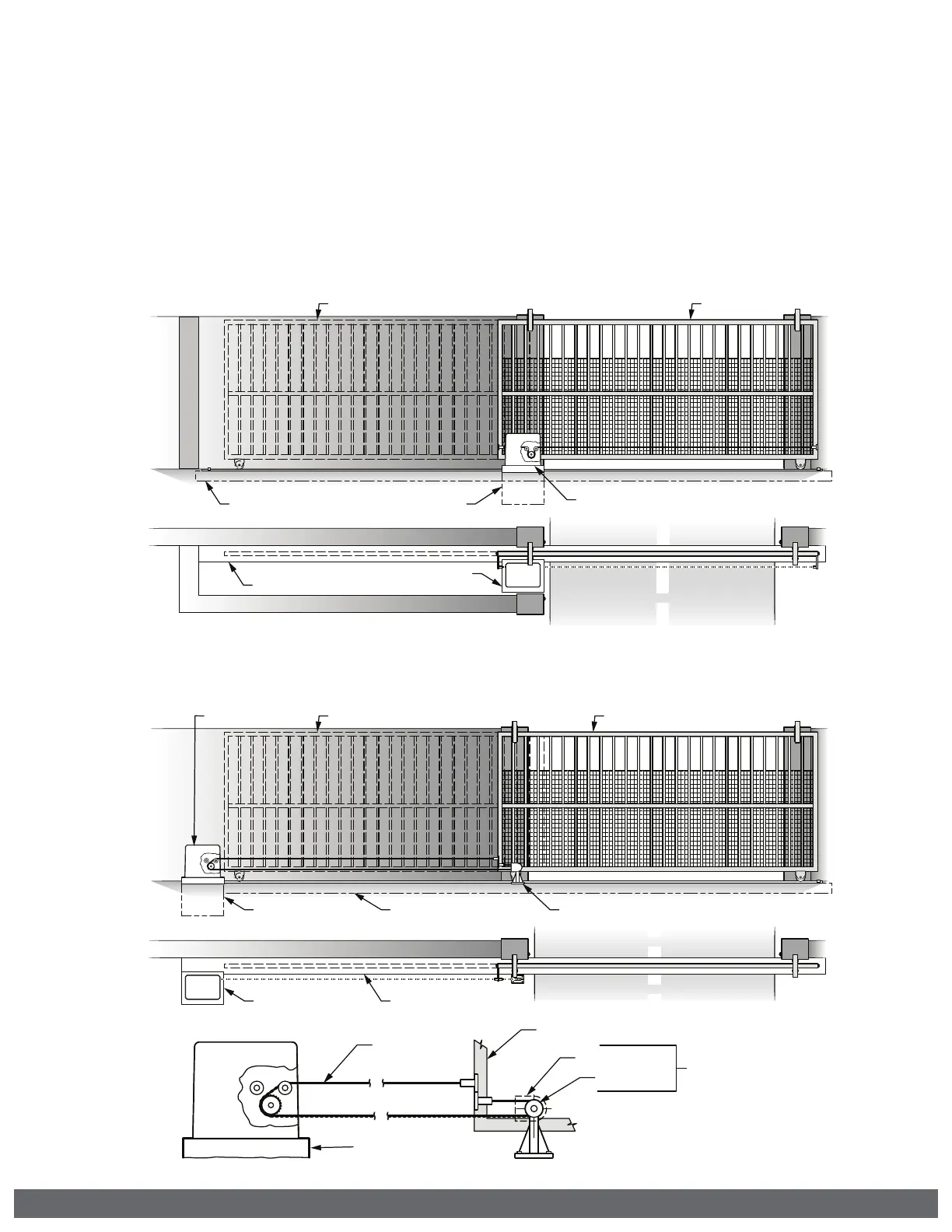

GATE OPERATOR INSTALLATION
Gate
Safety Guard
Fixed Pulley
Route Chain
As Shown
Plans for Rear Installation
Gate Operator
Concrete Pad
Gate Operator
Concrete Pad
Gate Operator
Gate Operator
Gate In Open Position Gate In Closed Position
Gate In Open Position Gate In Closed Position
Track Concrete Pad See Detail Below
Gate Operator
Concrete Pad
Track Concrete Pad
Gate Operator
Concrete Pad
Gate Operator
Concrete Pad
Track
Concrete Pad
Track
Concrete Pad
Not Supplied by
Viking Access Systems
Plans for Front Installation
