Viking RDSOE306SS - Component Testing Procedures

© 2012 Viking Preferred Service
19
Diagnostics
Component Testing

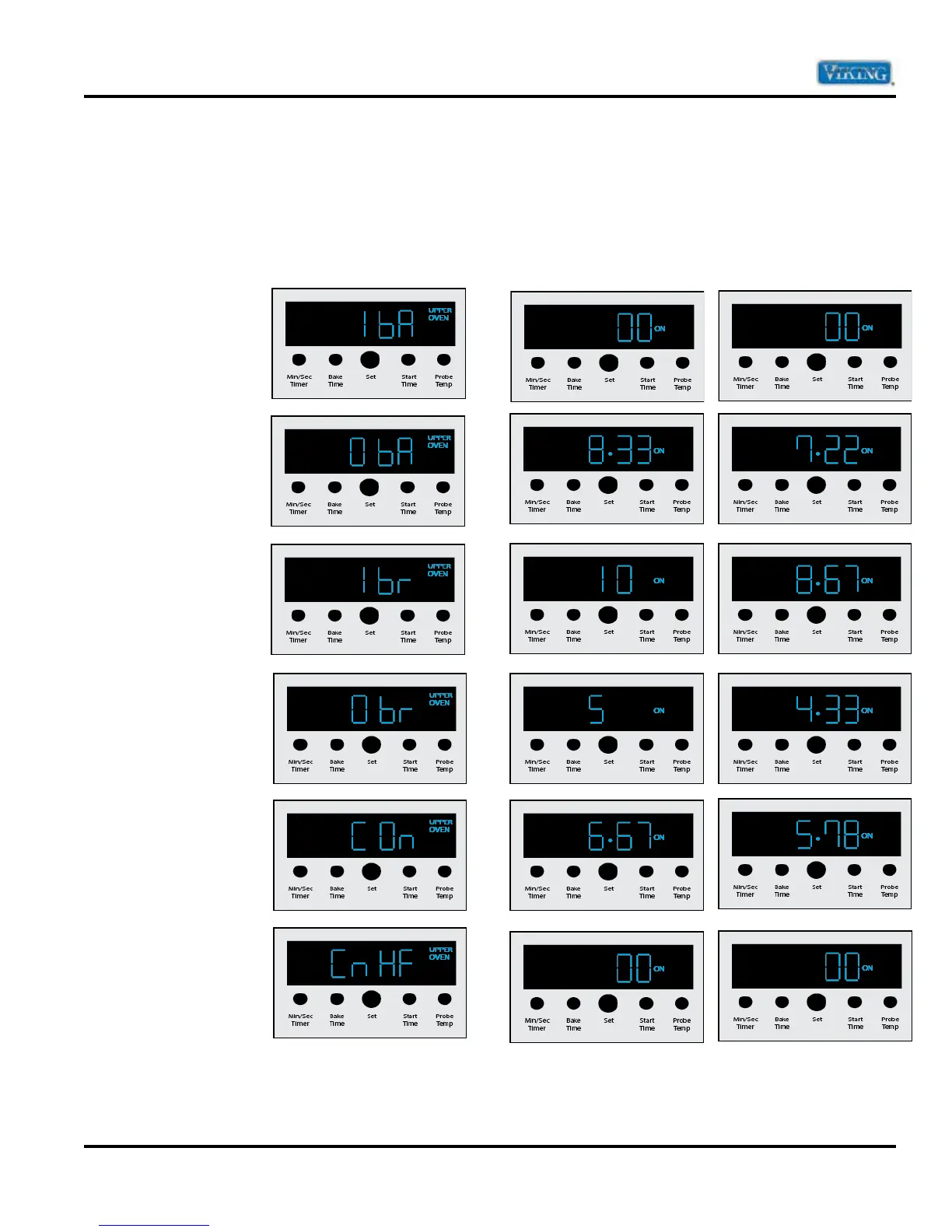

On the following tests, when you have selected a particular component, press “MIN/SEC TIMER” to activate. The
display will change to AC current. Press “MIN/SEC TIMER” one more time to turn it off and go back to the test
selection menu, or rotate the “SET KNOB” to move to the next component in the menu. Values are approximate.
240 Volts 280 Volts
Current (AMPS) Current (AMPS)
Inner Bake
Note: Inner bake is
not used on RDDOE and
RDSOE series ovens.
Outer Bake
Press “MIN/SEC TIMER”
to operate Outer
bake element.
Inner Broil
Press “MIN/SEC TIMER”
to operate Inner
broil element.
Outer Broil
Press “MIN/SEC TIMER”
to operate Outer
broil element.
Convection
Press “MIN/SEC TIMER”
to operate Convection
element.
Convection Fan Hi F
Press “MIN/SEC TIMER”
to operate the
Conv fan high.
