Diagnostics
Component Testing (cont.)

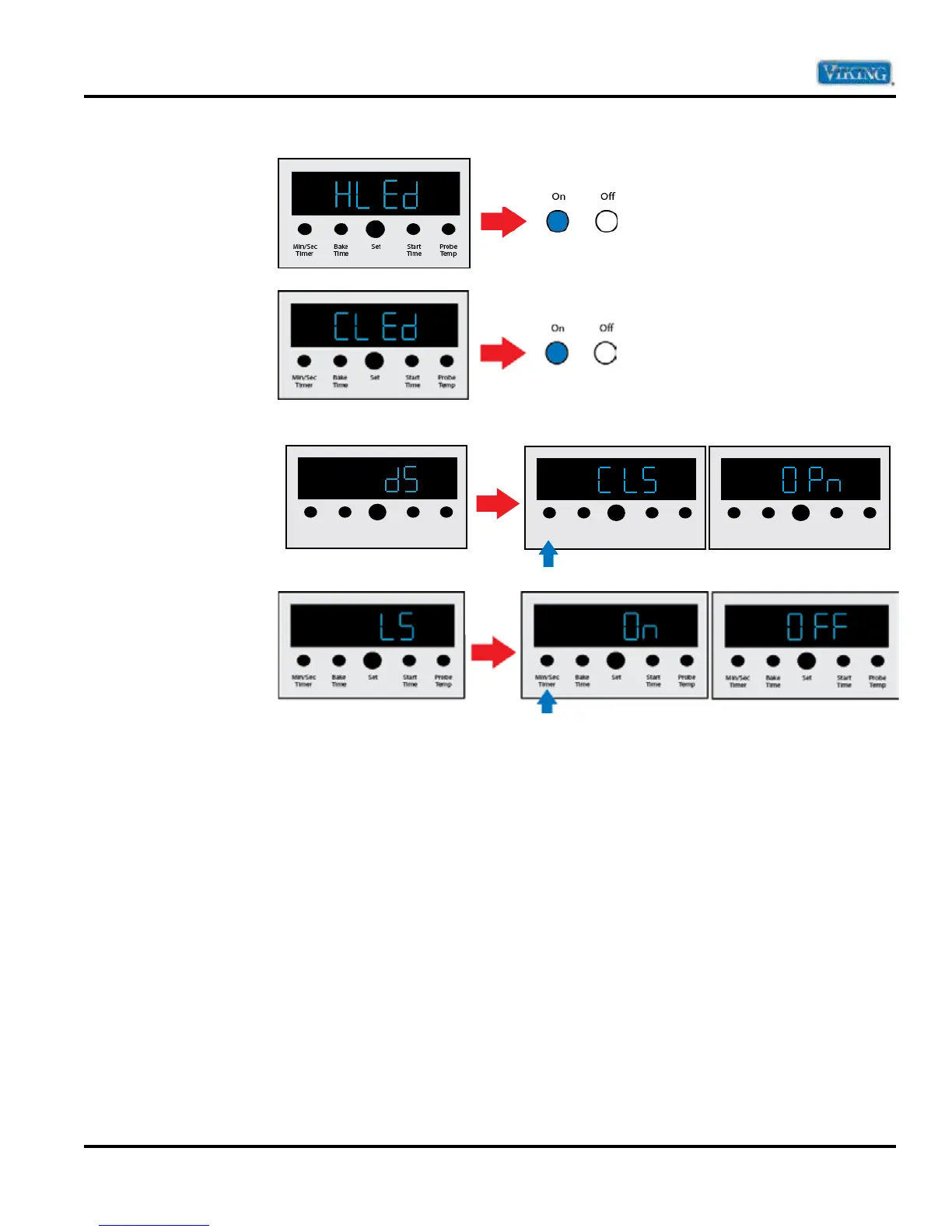

Heat Light LED
Each press of “MIN/SEC
TIMER” will turn the Oven
Cycle light on and off.
Clean Light LED
Each press of “MIN/SEC
TIMER” will turn the Clean
light on and off.
With door closed With door open
Door Switch
Opening and closing
the door will test the
door interlock switch.
With switch On With switch Closed
Light Switch
Pressing the panel light
switch ON and OFF to
test switch.
Note: This test for
Upper oven and single
ovens only!
When testing is complete, press “PROBE TEMP” twice to exit Test Mode.
Press
“BUTTON 1”
Min/Sec
Timer
Bake
Time
Set Start
Time
Probe
Temp
Min/Sec
Timer
Bake
Time
Set Start
Time
Probe
Temp
Min/Sec
Timer
Bake
Time
Set Start
Time
Probe
Temp
Press
MIN/SEC
TIMER
Press
MIN/SEC
TIMER
Press
MIN/SEC
TIMER
Press
MIN/SEC
TIMER
