Service Diagnostics and Procedures

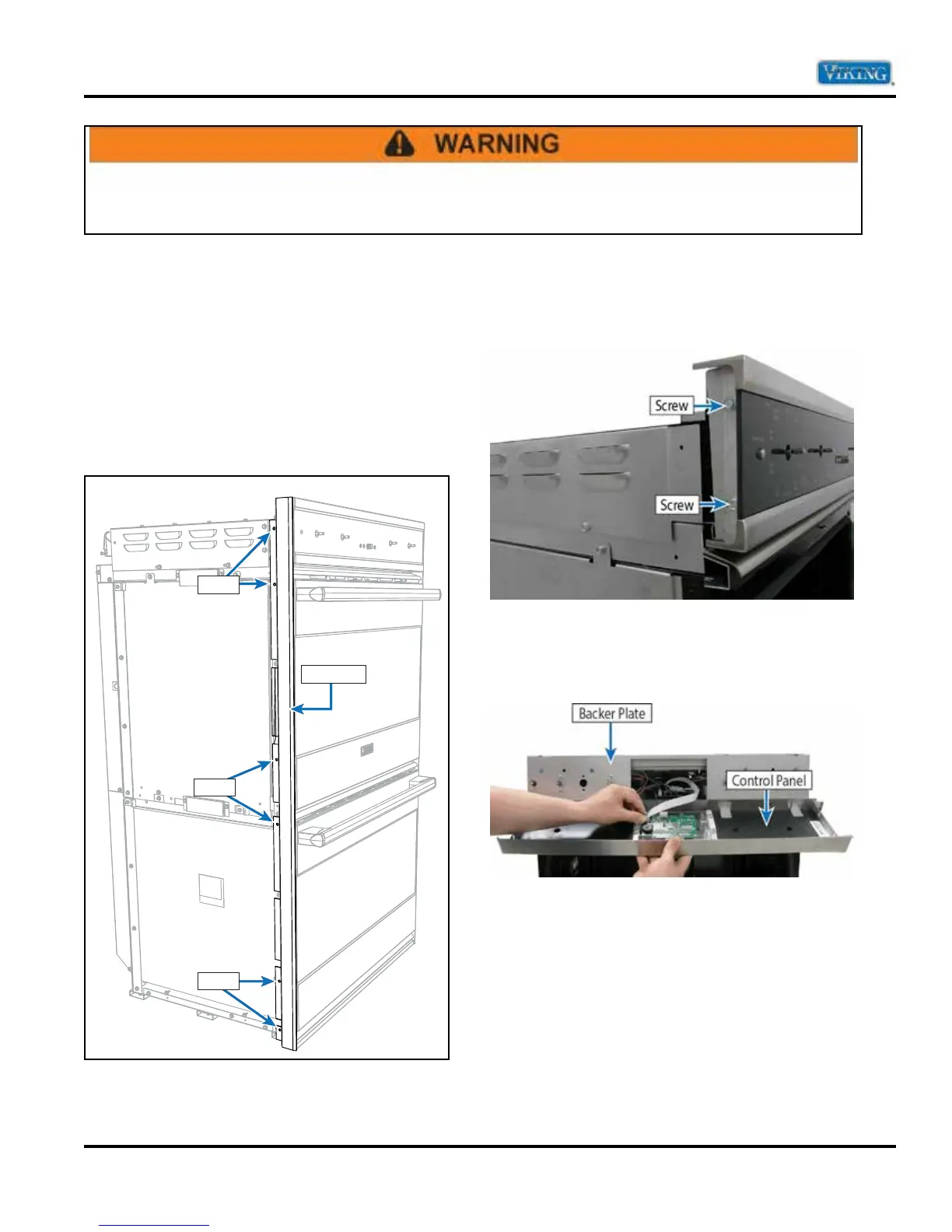

Control Panel Disassembly
To access control panel:
1. Remove oven knobs.
2. Slide oven forward from installation to access
the front trim.
3. Remove screws and washers securing front
trim and remove trim.
4. Remove screws on each end of control panel.
5. Separate control panel from backer plate.
6. Disconnect ribbon cable from clock.
7. Reverse procedure to reinstall.
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit before servicing.
Wires removed during disassembly must be replaced on proper terminals to insure correct earth ground and
polarization. After servicing, reconnect electrical power.
Screw
Screw
Front Trim
Screw
