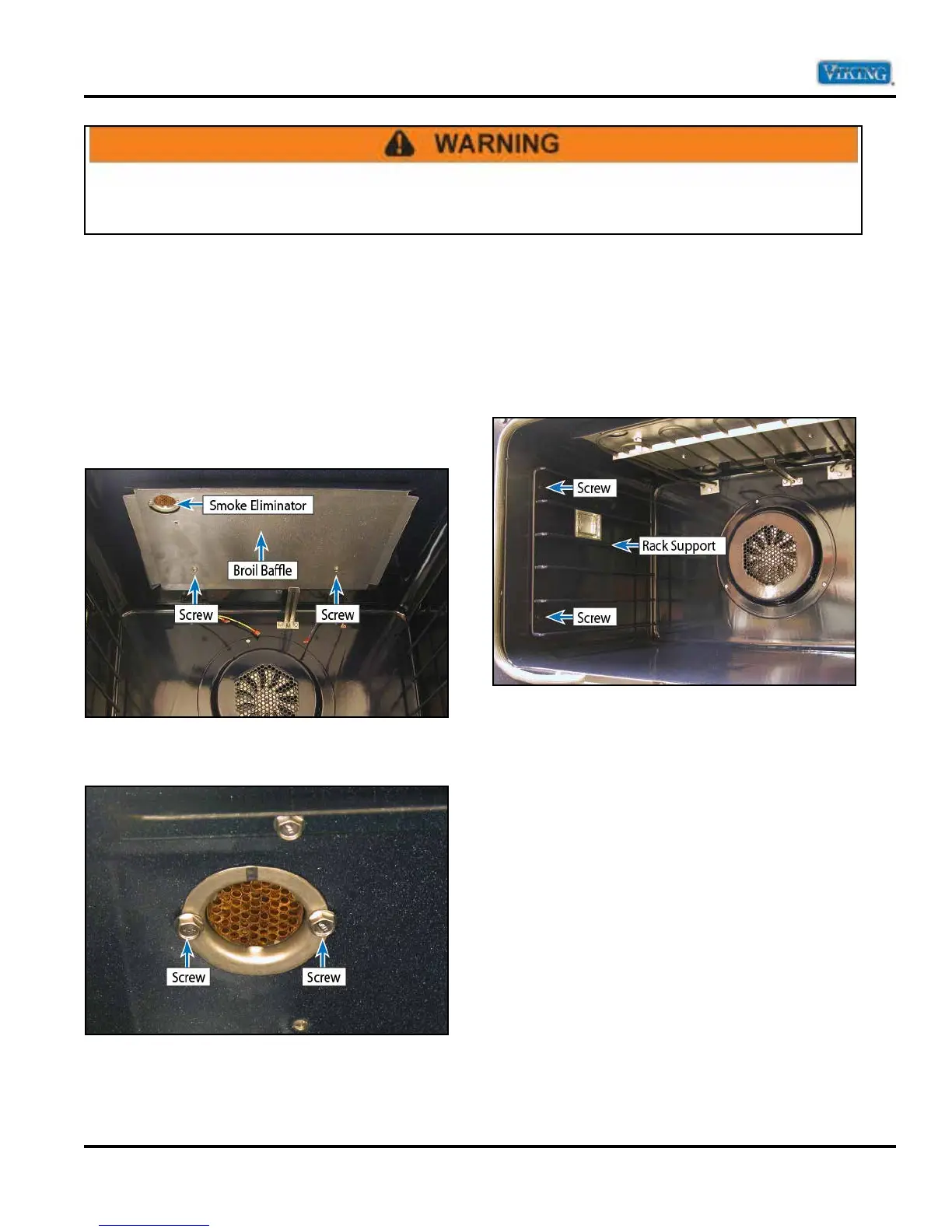

Smoke Eliminator
To access smoke eliminator:
1. Open oven door.
2. Remove broil element (see Broil Element
Disassembly).
3. Remove screws securing broil bafe and
remove bafe.
4. Remove screws securing smoke eliminator to
oven cavity.
5. Repair or replace smoke eliminator.
6. Reverse procedure to reinstall.
Rack Support
To access rack support:
1. Remove oven door (see Door Removal).
2. Remove screws and rack supports from each
side of oven cavity.
3. Reverse procedure to reinstall.
Service Diagnostics and Procedures–Disassembly
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit before servicing.
Wires removed during disassembly must be replaced on proper terminals to insure correct earth ground and
polarization. After servicing, reconnect electrical power.
