Service Diagnostics and Procedures
Freezer Evaporator Fan–Non Dispenser
Models
1. Remove lower freezer baskets.
2. Remove screws securing left and right freezer
glides and remove glides.
3. Remove right side light lens (see interior lights
page 53).
4. Remove screws and center evaporator cover.
4. Disconnect wiring, and repair/replace freezer
fan.
5. Reverse procedure to reinstall.
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit using power
switch before servicing. Wires removed during disassembly must be replaced on proper terminals to insure
correct earth ground and polarization. After servicing, reconnect power using power switch.

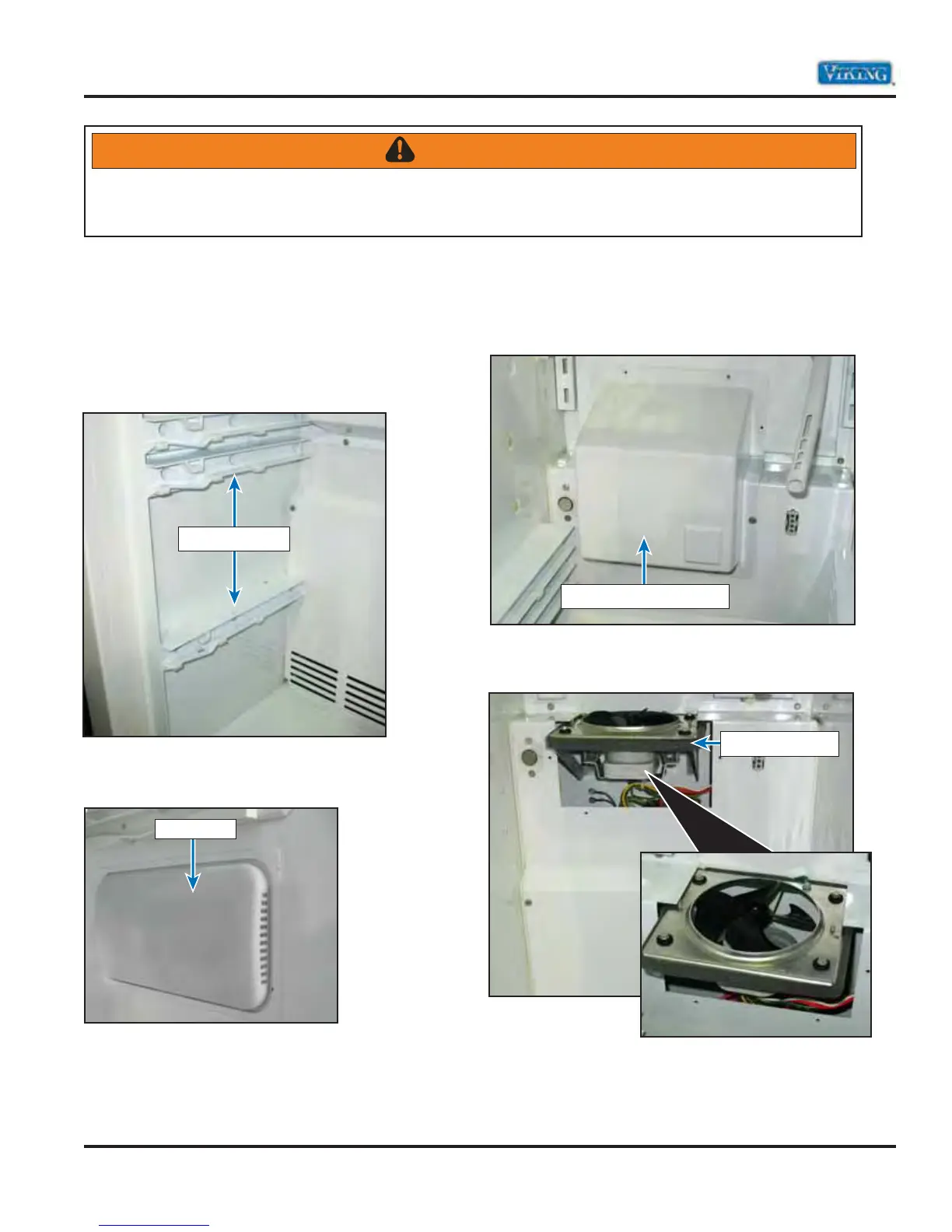

Freezer Glides
Evaporator Fan Cover
Evaporator Fan
Light Lens
