Service Diagnostics and Procedures

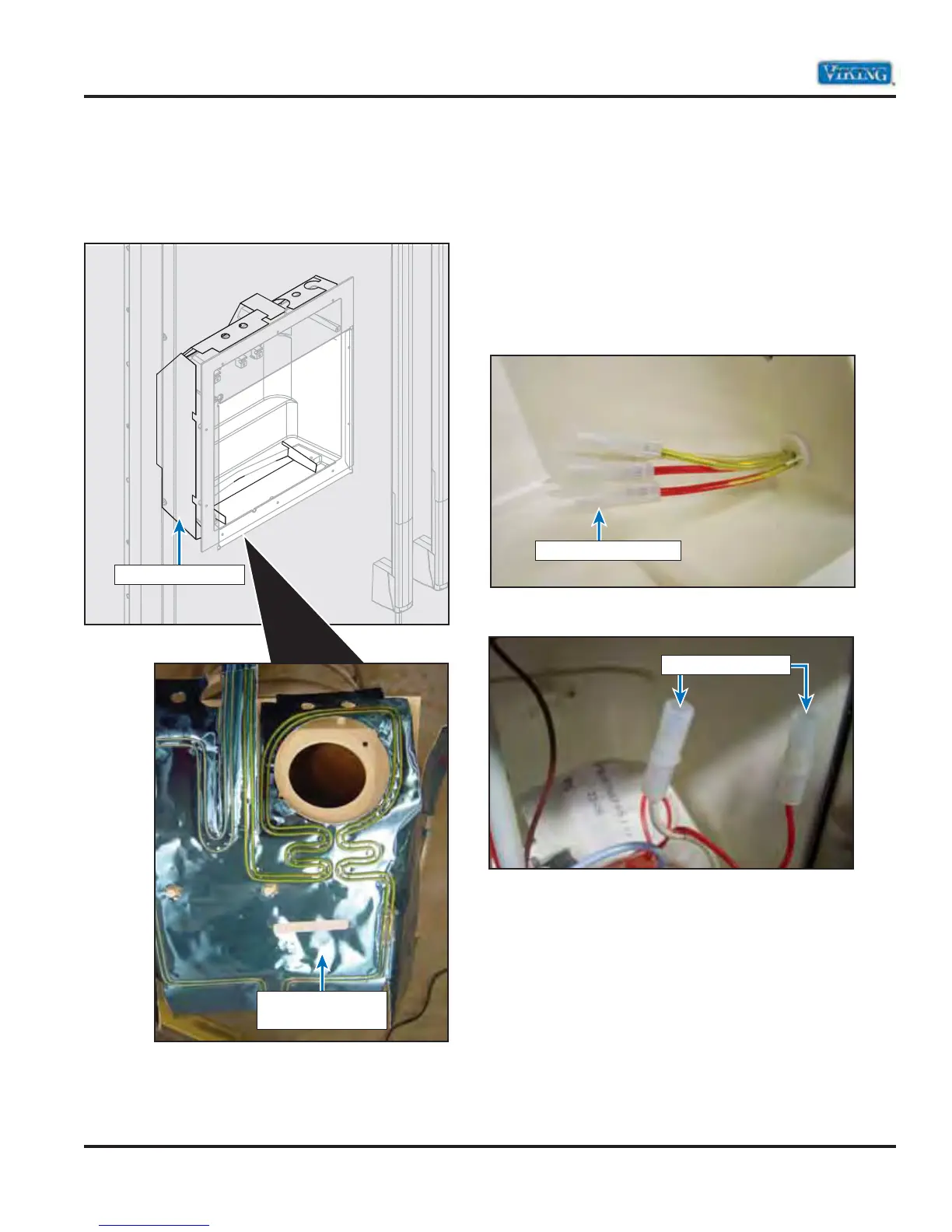

Dispenser Heater
The dispenser has a heater foamed into the door
to be used in case of moisture/sweating in the
dispenser assembly. The heater does not leave the
factory hooked up and can be connected if needed.
To connect the dispenser heater:
1. Remove escutcheon (follow bezel dispenser
disassembly procedure).
2. Remove upper dispenser (refer to upper
dispenser disassembly procedure).
3. Locate wires with female ends for the heater in
the upper right hand corner.
4. Locate wires with male ends.
5. Connect Red to Orange and White to Orange
or Red to Yellow and White to Yellow.
The dispenser heater has two heater loops and
should one open the alternate loop could be
connected. The heater measure 6800
Ω
Orange –
Orange and Yellow – Yellow.
6. Reverse procedure to reinstall.
Female Connectors
Male Connectors
Dispenser Heater
Dispenser Heater
(rear view)
