Service Diagnostics and Procedures

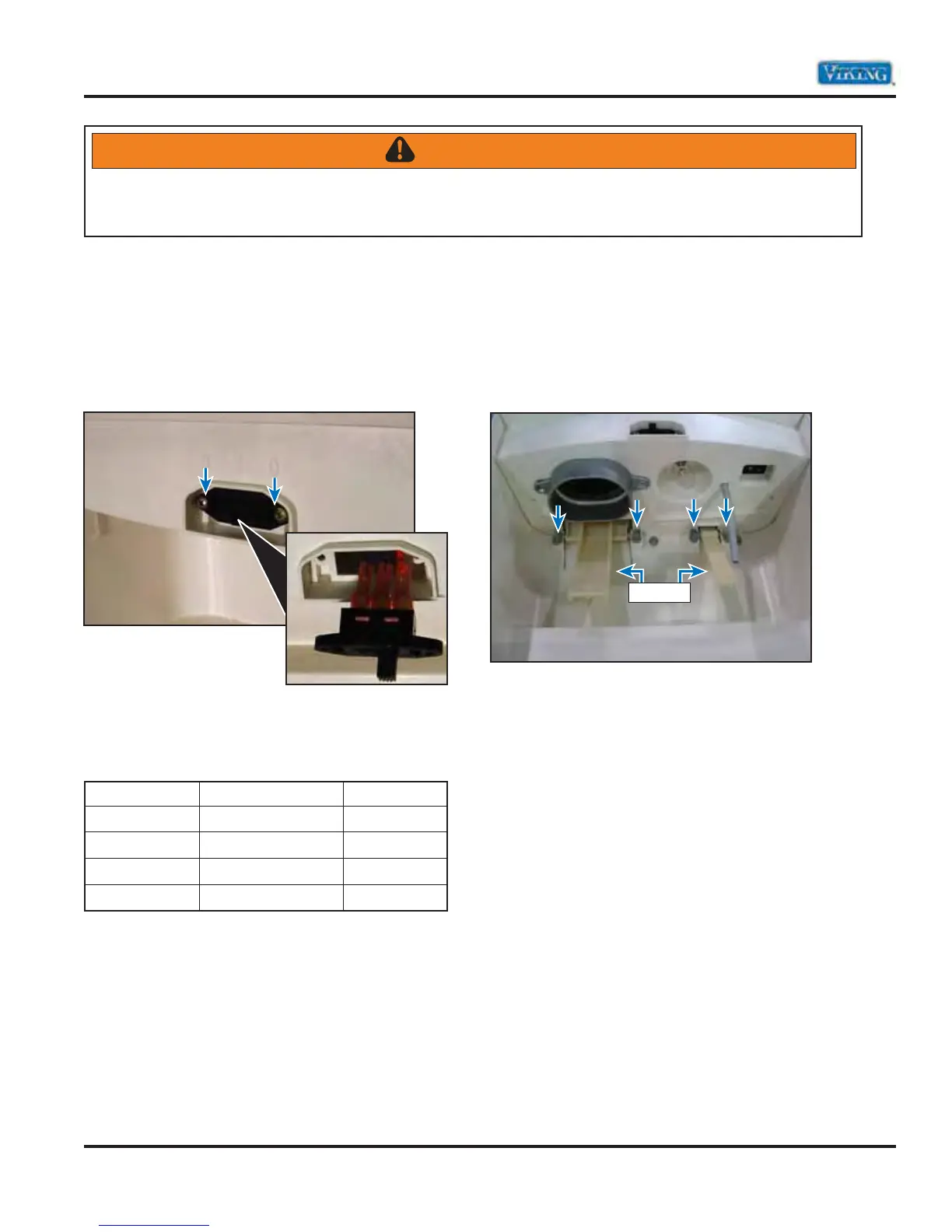

Cubed/Crushed Switch
1. Remove dispenser bezel (follow dispenser bezel
procedure).
2. Remove screws securing switch, remove switch,
disconnect wiring, repair/replace switch.
3. Reverse procedure to reinstall.
To test switch, review the chart below.
Test Point Switch Position Reading
Orange–Purple Crushed
0
Ω
Orange–Purple Cubed Infinite Ohms
Blue–Purple Crushed Infinite Ohms
Blue–Purple Cubed
0
Ω
Ice and Water Paddles
1. Remove escutcheon (follow bezel disassembly
procedure).
2. Remove screws securing ice dispenser paddle
(left) and water dispenser paddle (right).
3. Slide paddle out of upper dispenser to remove.
4. Reverse procedure to reinstall.
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit using power
switch before servicing. Wires removed during disassembly must be replaced on proper terminals to insure
correct earth ground and polarization. After servicing, reconnect power using power switch.
Paddles
