Service Diagnostics and Procedures

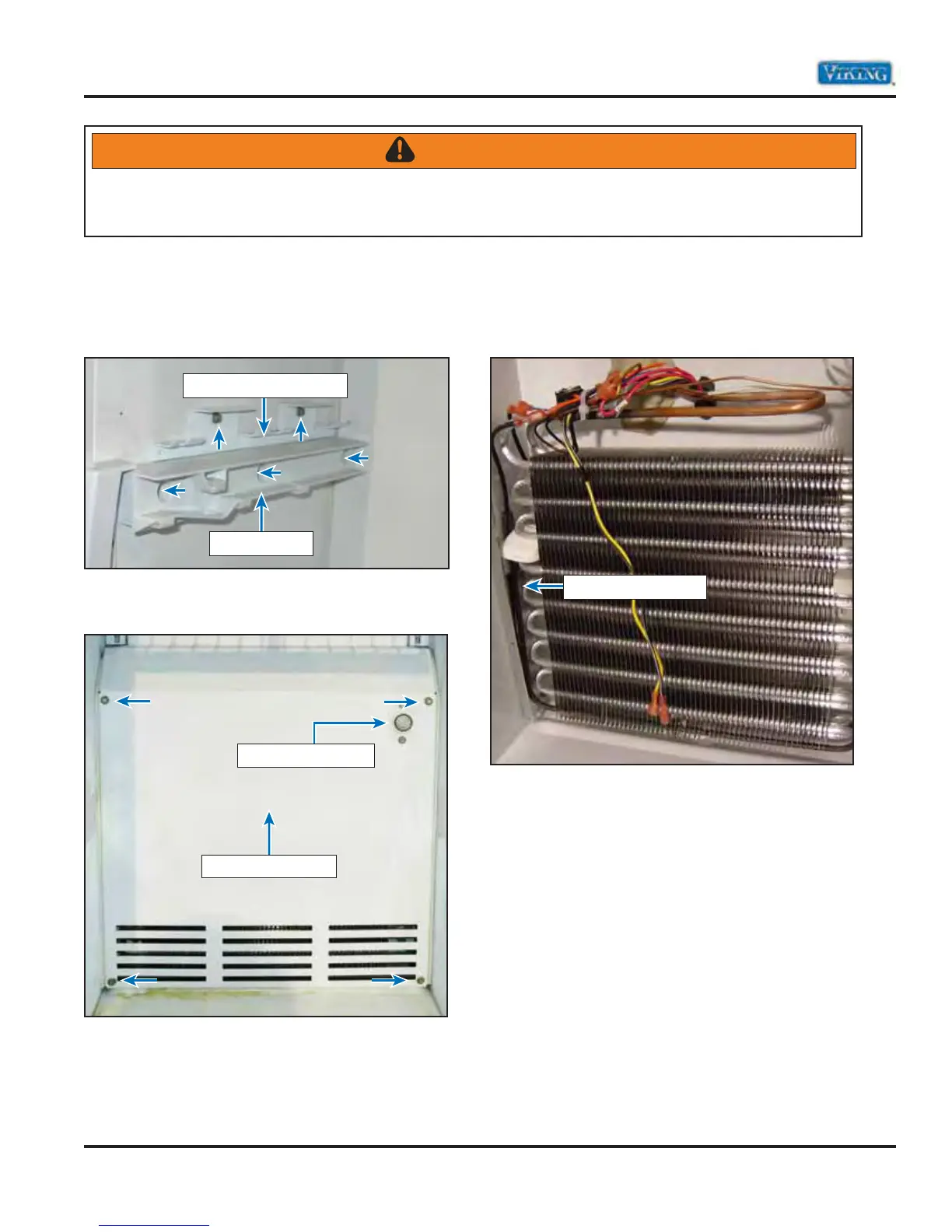

Defrost Heater–Dispenser Model
1. Remove drawers.
2. Remove screws, shelf brackets and glides.
3. Remove screws securing evaporator cover and
remove.
4. Remove clips securing defrost heater,
disconnect wiring, and repair/replace defrost
heater.
Freezer Glide
Freezer Shelf Bracket
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit using power
switch before servicing. Wires removed during disassembly must be replaced on proper terminals to insure
correct earth ground and polarization. After servicing, reconnect power using power switch.
Evaporator Cover
Freezer Thermistor
Evaporator Heater
To Next Page
