© 1999 Directed Electronics, Inc. Vista, CA 13

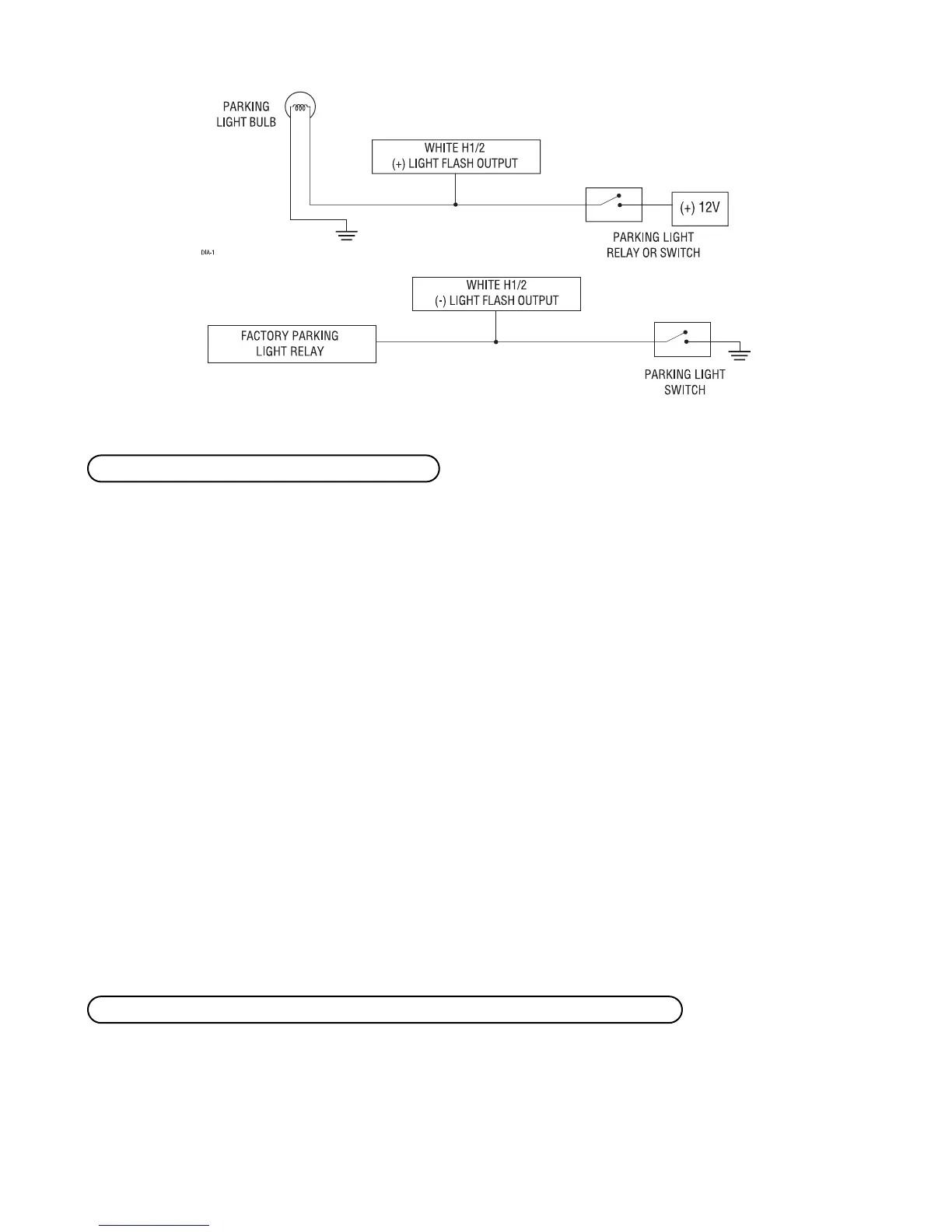

This wire provides a 200 mA (-) output whenever the transmitter button(s) controlling channel three is pressed.
This output can be programmed to provide the following types of output (see System Features Learn Routine
section in this guide):
■ A validity output will send a signal as long as the transmission is received.
■ A latched output will send a signal continuously when channel three pressed and will continue until channel
three is pressed again.
■ A latched/reset with ignition output works similar to the latched output, but will also reset (output will stop)
when the ignition is turned on and then off.
■ A 30 second timed output will send a signal for 30 seconds when channel three is pressed. This output can
be shut off during the 30-second period by pressing Channel 3 again.
■ This output can also be programmed to provide a second unlock pulse when the disarm button is pressed
within 15 seconds after disarming the system. This can be used to unlock the passenger doors when installing
progressive door locks.
IMPORTANT! Never use this wire to drive anything but a relay or a low-current input! This
transistorized output can only supply 200 mA, and connecting directly to a solenoid, motor, or other
high-current device will cause the module to fail.
Connect this wire directly to the domelight circuit in the vehicle. The on-board relay will drive circuits up to 20
amperes. The polarity of this output is determined by the connection of the input wire H2/B in the Relay Harness.
NOTE: If the input wire H2/B is not connected, there will be no output on this wire.
H1/4 BLACK/WHITE high current output from on-board domelight supervision relay
H1/3 WHITE/BLUE 200 mA (-) channel 3 output
