16 © 1999 Directed Electronics, Inc. Vista, CA

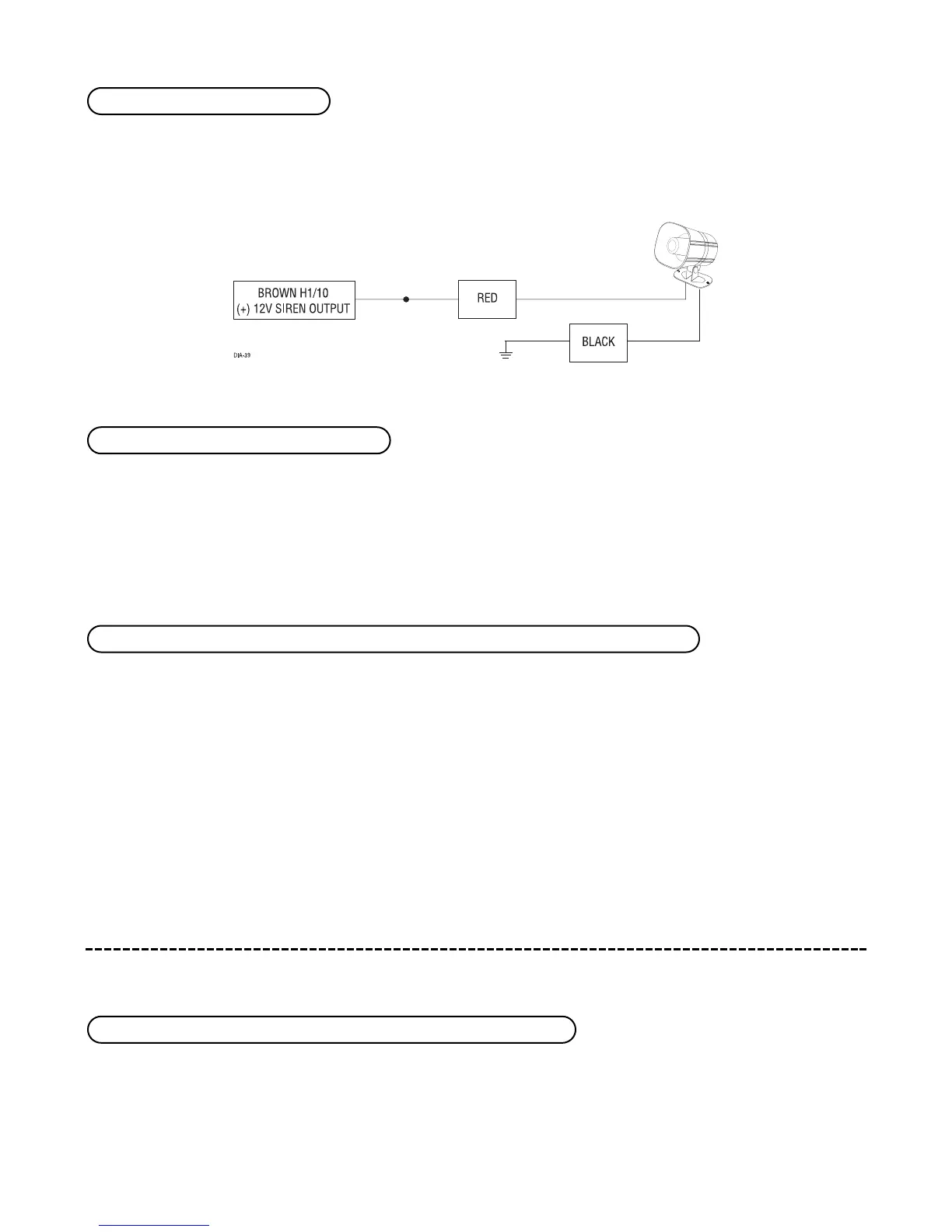

Connect this to the red wire of the Revenger® siren. Connect the black wire of the siren to (-) chassis ground,
preferably at the same point you connect the control module’s black ground wire.
Before connecting this wire, remove the supplied fuse. Connect to the battery positive terminal or the constant
12V supply to the ignition switch.
NOTE: Always use a fuse within 12 inches of the point you obtain (+)12V. Do not use the 10A fuse
in the harness for this purpose. This fuse protects the module itself.
Whenever the button(s) controlling channel two is pressed for 1.5 seconds, the on-board relay is activated and
will stay activated as long as the transmission continues. This relay is often used for trunk release. The relay can
drive circuits up to 20 amperes. The polarity of this output is determined by the connection of the input wire
H2/A in the Relay Harness.
NOTE: If the input wire H2/A is not connected, there will be no output from the relay when it is
activated.
relay harness wire connection guide
This wire is used to supply voltage to the output H1/12. If you want a positive output on H1/12, connect this
wire to +12V. Always fuse appropriately. If a negative output is desired, connect this wire to chassis ground.
H2/A RED/WHITE input to on-board channel 2 (trunk release) relay
H1/12 RED/WHITE high current output from on-board channel 2 (trunk release) relay
H1/11 RED (+)12V constant power input
H1/10 BROWN (+) siren output
