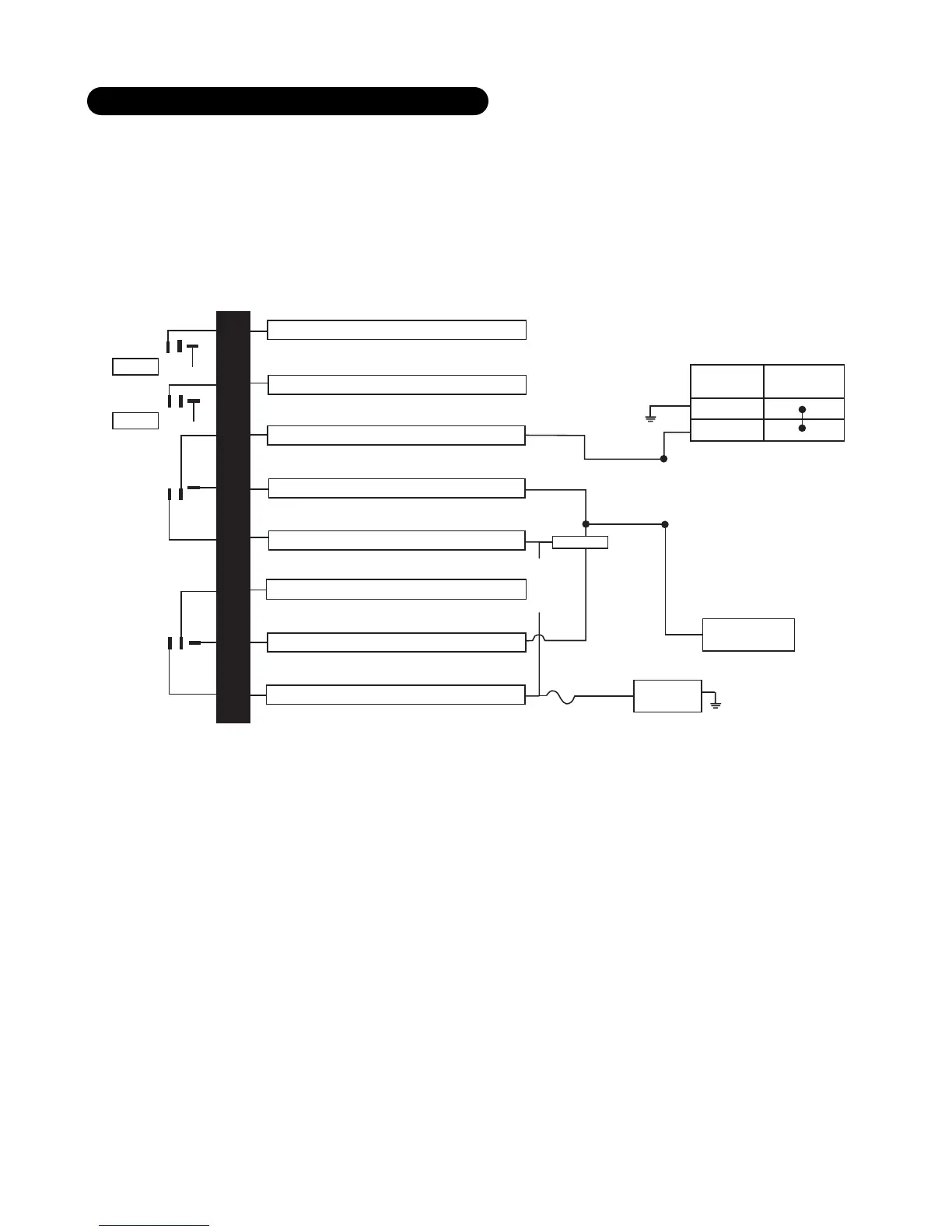

Viper 600 ESP - One-Wire System, (Type F)

24 © 1999 Directed Electronics, Inc. Vista, CA
This system usually requires a negative pulse to unlock, and cutting the wire to lock the door. (With some vehi-
cles, these are reversed.) It is found in the late-model Nissan Sentra, some Nissan 240SX, and Nissan 300ZX
1992-up. It is also found in some Mazda MPV's.
IMPORTANT! Remember that the violet jumper between the #87 lock terminal and the #87 unlock
terminal must be cut.
TO H1/12
DOMELIGHT
SUPERVISION
RELAY
TRUNK
RELEASE
RELAY
RED/WHITE CHANNEL 2 RELAY INPUT #87
DIA-95
TO H1/4
LOCK
RELAY
UNLOCK
RELAY
#87
#87A
#30A
#87
#87A
#30A
BLACK/WHITE DOMELIGHT SUPERVISION INPUT #87
GREEN/BLACK LOCK #30 COMMON (OUTPUT)
WHITE/BLACK LOCK #87A NORMALLY CLOSED
VIOLET/BLACK LOCK #87 NORMALLY OPEN (INPUT)
BROWN/BLACK UNLOCK #87A NORMALLY CLOSED
BLUE/BLACK UNLOCK #30 COMMON (OUTPUT)
VIOLET UNLOCK #87 NORMALLY OPEN (INPUT)
CHASSIS
GROUND
15A
X
X
CUT
X
X
CUT
FACTORY LOCK
MODULE
CONNECTION
WHEN DOORS
ARE LOCKED
FACTORY SWITCH
CONNECTION
WHEN DOORS
ARE UNLOCKED
NOT USED
H2/A
H2/B
H2/C
H2/D
H2/E
H2/F
H2/G
H2/H
type F: one-wire system - cut to lock, ground to unlock
