26 © 1999 Directed Electronics, Inc. Vista, CA

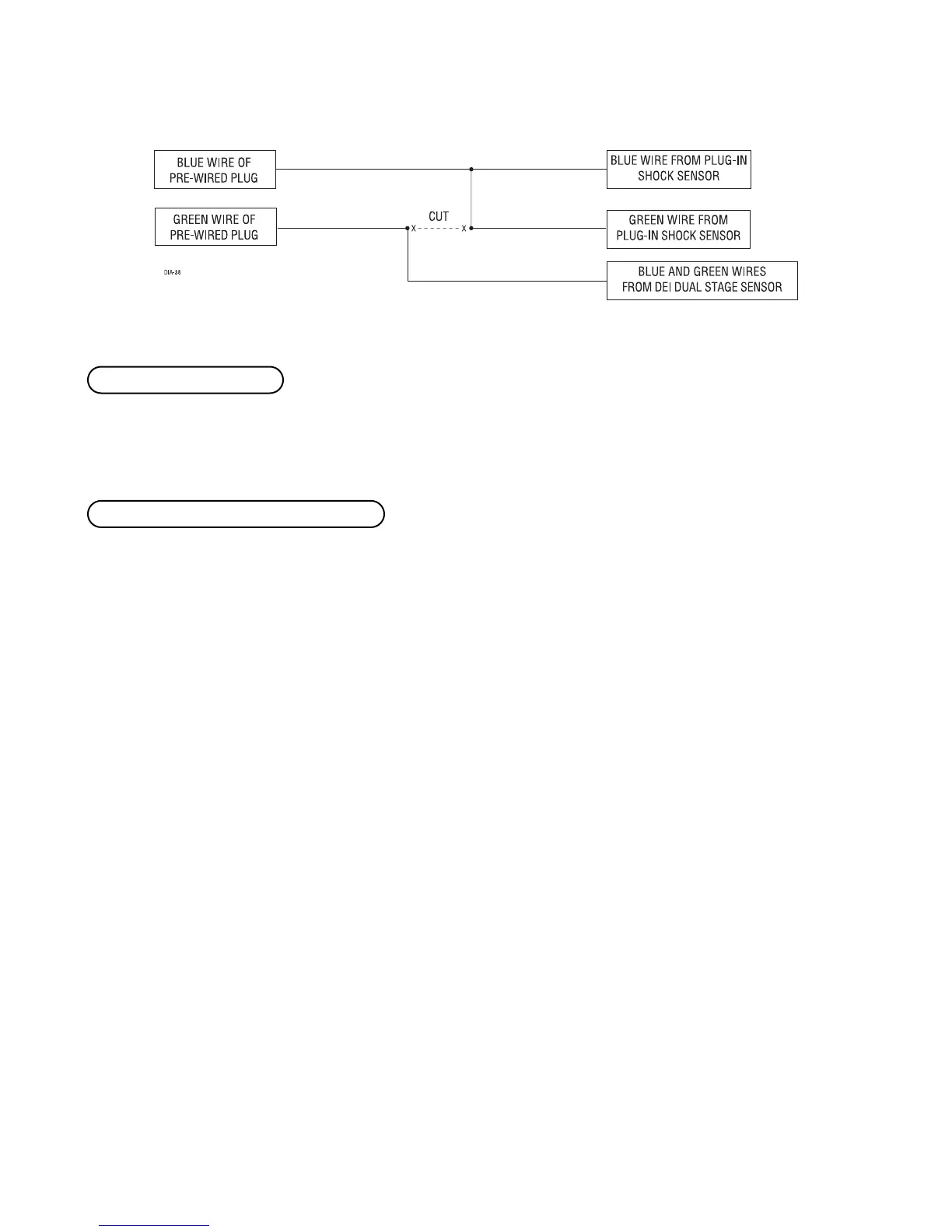

Diagram for adding optional DEI® dual stage sensor to green wire (zone 4)
Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while inputs longer than 0.8 seconds will
trigger full alarm sequence and report zone two.
Red is (+)12V constant, black is (-) ground: Do not use these for anything besides the plug-in shock sensor.
RED (+)12V constant, BLACK (-) ground
BLUE (-) multiplex input
