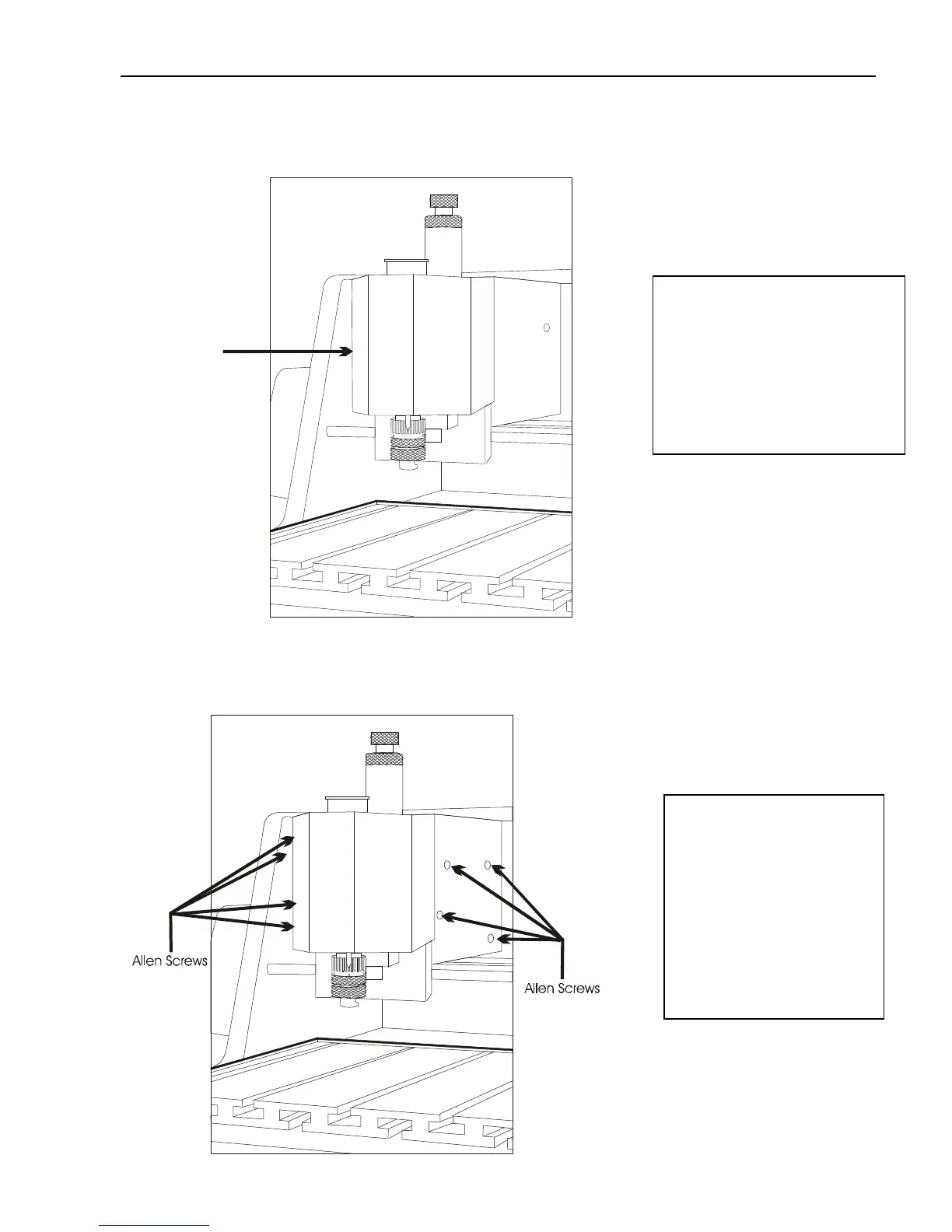

(Figure 5.4) Spindle Cover
0
Sp in d le C o v e r
The top cover can now
be pushed to the back.
Remove the front spindle
cover as seen in
figure 5.4.
(Figure 5.5) Carriage Cover
Remove the four
carriage cover screws
on each side of the
carriage cover using a
3/32” Allen wrench as
seen in figure 5.5.
