Chapter 4 - Optional Accessories
Clamping Devices
The optional versa vise is used for holding small or odd shaped items. It can be used as
a stand-alone clamp or other clamps can be used with the versa vise. Some of the other
types of clamps are explained later in this chapter. For a complete list of holding clamps,
please ask Vision for an accessory catalog or visit our web site at
www.visionengravers.com.
To install the versa vise, you must remove the T-slot table. To do this, remove the four
screws labeled in figure 4.1.

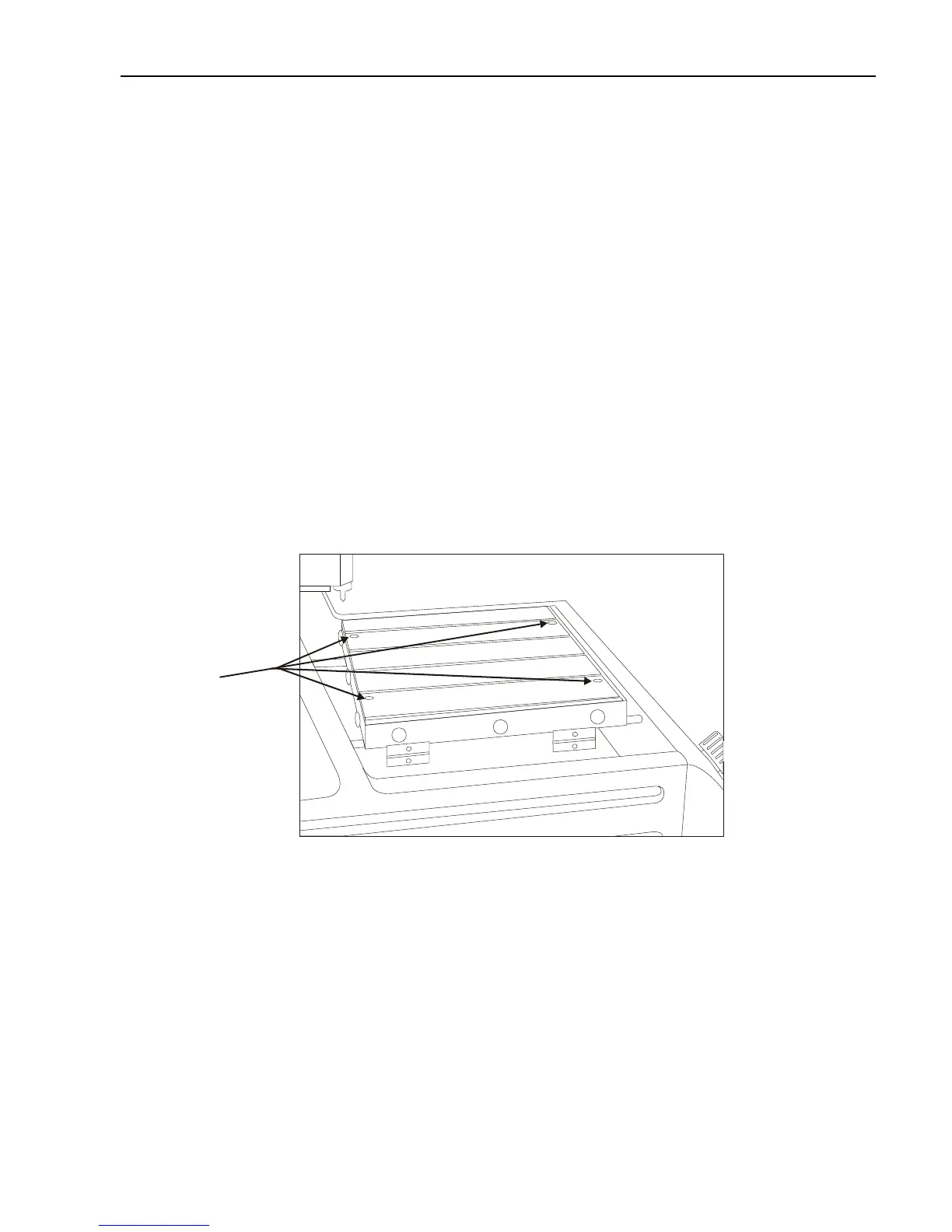

(Figure 4.1) Removing the t-slot table
T-Slot table hold
down screws
The T-slot table will now come off. Place the versa vise on to the flat plate where the T-
slot table was and move it to the upper left corner of the plate. Included with the versa
vise should be 4 dowel pins. The dowel pins are used for locating the versa vise in the
correct position. See figure 4.2 for screw and dowel placement.
