VisionQuest HDTV - For DVD Players with DVI

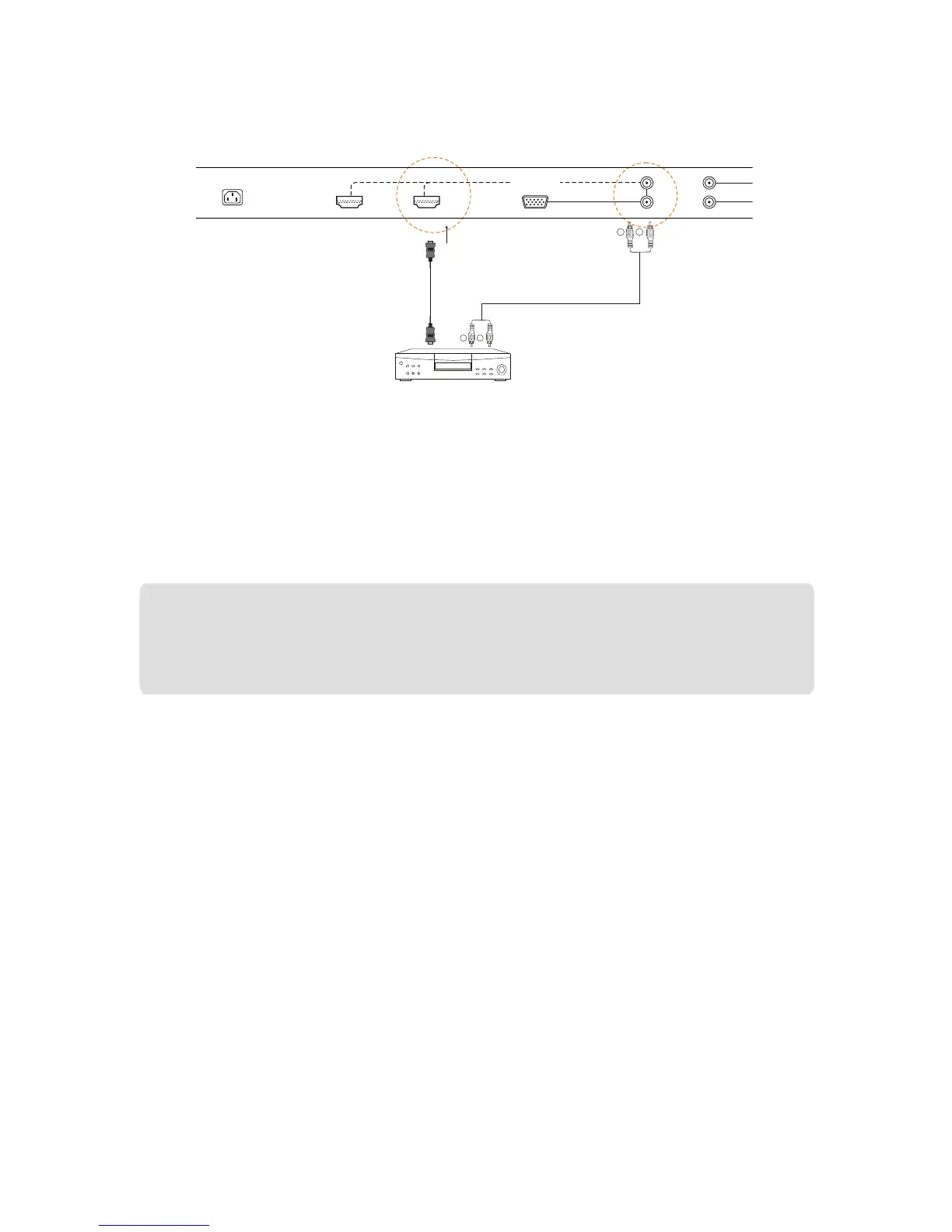

For DVD Players with DVI:
1.Turn off the power to the LCD TV and DVD player.
2.Using a HDMI-DVI cable, connect the DVI end to your DVD Player and the HDMI end to the HDMI input
in the rear of your LCD TV.
3. Using an audio cable(white and red connectors), connect cable to the audio output connecters
associated with the DVI output on the rear of your DVD Player, and connect the other end to the audio
connectors associated with the HDMI input in the rear of your LCD TV.
4. Turn on the power to the LCD TV and your DVD Player.
5. Select HDMI1 using the INPUT button on the remote control or the front of the LCD TV, or directly by
pressing the HD button on the remote control.
WWW.VISIONQUESTCE.COM
18
W R
W R
Note:
a) If you are already using the HDMI1input for another Digital HD, or you do not want to use the HDMI1
input for the DVD player, you can connect the DVD player to the HDMI2 connections.
b) Refer to your DVD player user manual for more information about the video output requirements of
the product.
