VisionQuest HDTV - 3-Using S-Video

Note: Refer to your DVD player user manual for more information about the video output requirements of
the product.
1.
2.Connect the S-Video jack on the rear of your DVD player to the S-Video jack in the rear of your LCD TV.
3.Connect the R(red color) and L(white color) audio connectors on the rear of your DVD player to the R(red
color) and L(White color) audio input connectors in the rear of your LCD TV.
4.Turn on the power to the LCD TV and DVD player.
5.Select S-Video using the INPUT button on the remote control or front of the LCD TV or directly by pressing
the AV button on the Remote Control.
Turn off the power button of the LCD TV and the DVD player
2.2.3 - Using S-Video

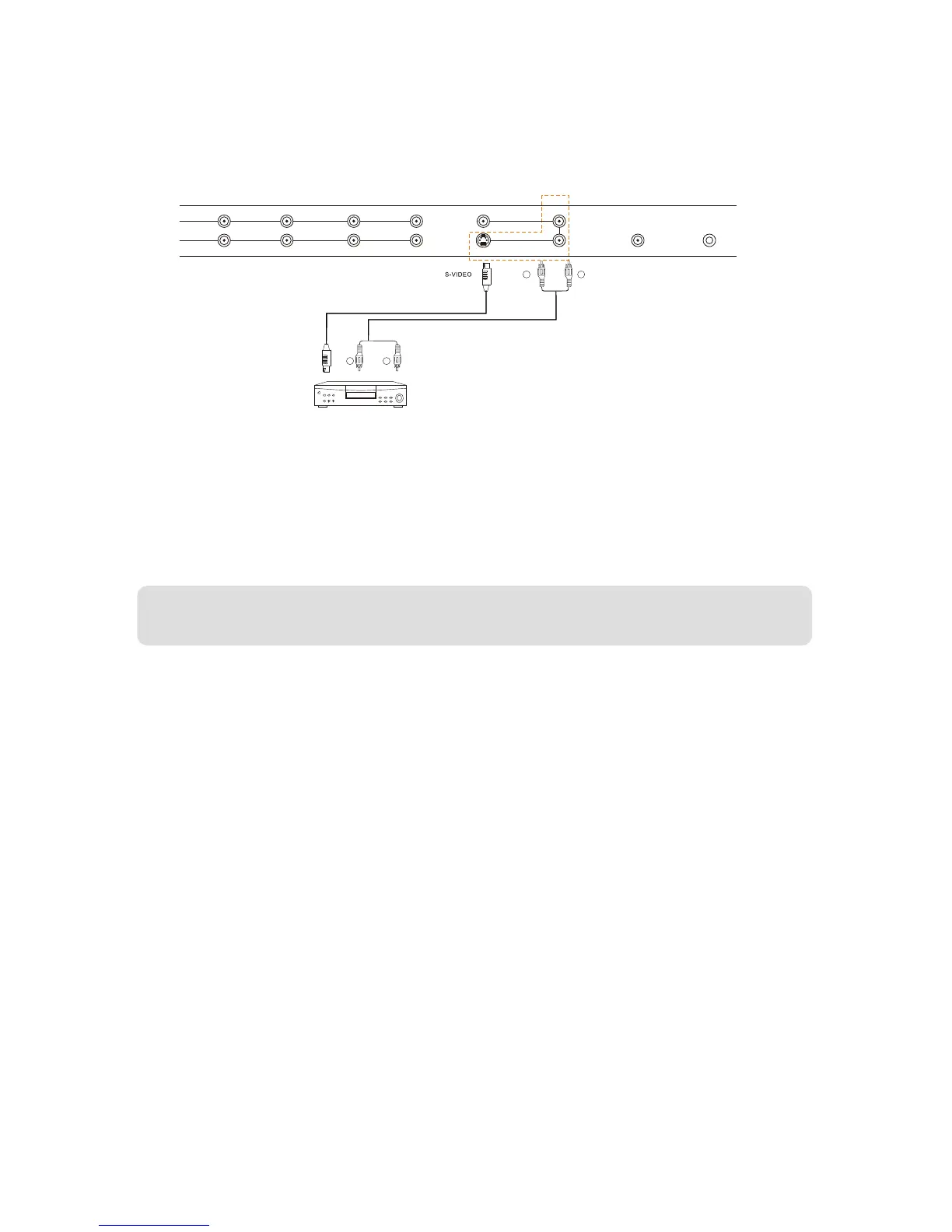

Connecting DVD Player (Good):
VIDEO EQUIPMENT
with terminal
To S-VIDEO
inputs
W R
To audio
inputs
WWW.VISIONQUESTCE.COM
20
W R
AUDIO
IN
R-1
L-1
L-3
Pr/Cr-1Pb/Cb-1
Y-1
AV1
AUDIO
IN
DIGITAL HD
L-5
R-5
VGA IN
HDMI2-IN HDMI1-IN
S-VIDEO IN
VIDEO IN
AUDIO IN
R-3
R-4L-4Pr/Cr-2Pb/Cb-2Y-2
AUDIO IN
AC IN
DIGITAL
AUDIO OUT
75Ù ANT.
SERVICE
