2.3.2 - Using VGA Video

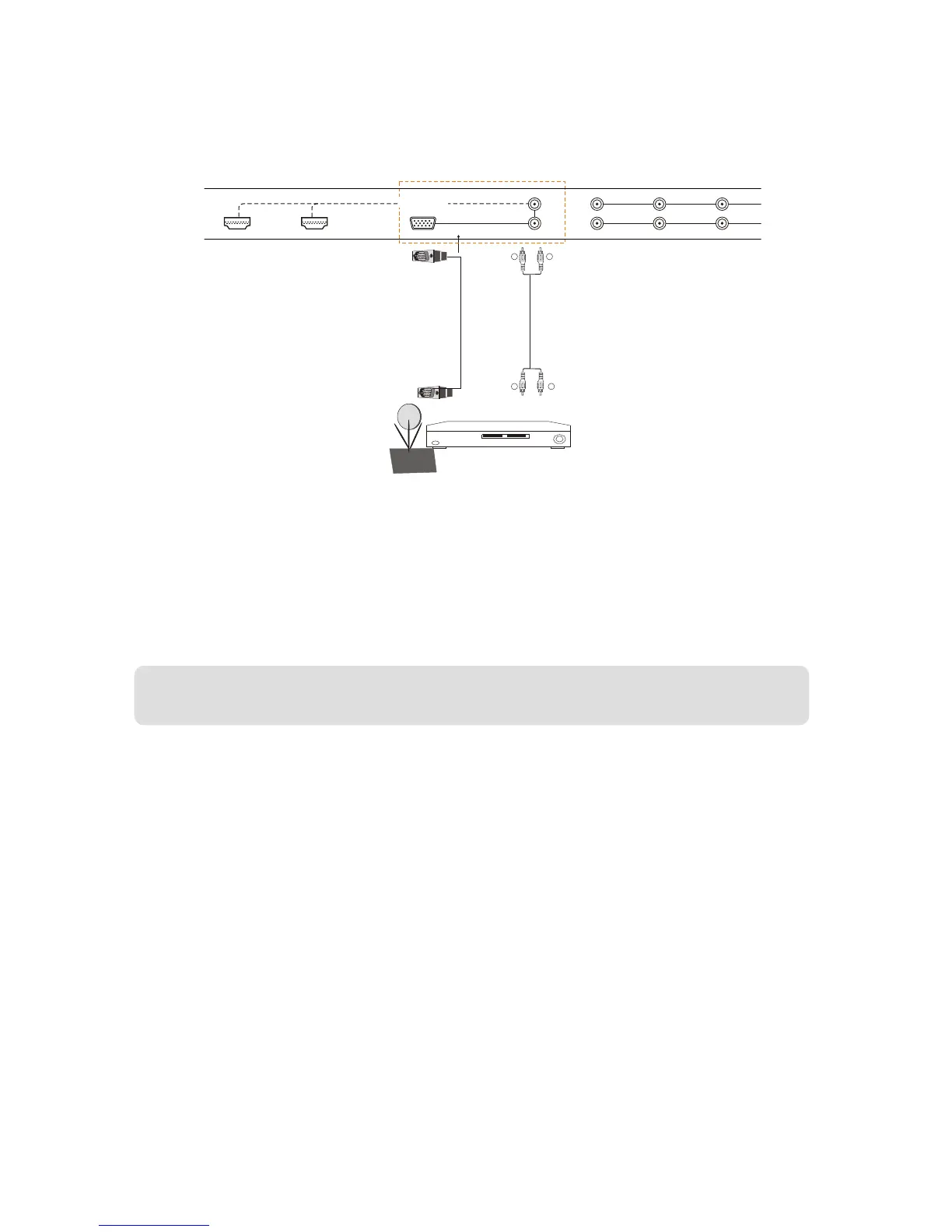

Connecting Set-Top Box (Better):
1.Turn off the power to the LCD TV and HDTV Set -Top Box.
2.Connect a 15-pin D-Sub VGA cable to the RGB output of your HDTV Set-Top Box and the other end to
the VGA input in the rear of your LCD TV.
3.Connect the Audio Out on your HDTV Set-Top Box to the Audio within the VGA group in the rear of your
LCD TV.
4.Turn on the power to the LCD TV and HDTV Set-Top Box.
5.Select VGA using the INPUT button on the Remote control or front of the LCD TV or directly by pressing
the VGA button on the Remote Control.
Note: Refer to your HDTV Set-Top Box user manual for more information about the video output
requirements of the product or consult your satellite or cable operator.
HDTV Set-Top Box
W R
W R
WWW.VISIONQUESTCE.COM
24
AUDIO
IN
R-1
L-1
L-3
Pr/Cr-1Pb/Cb-1
Y-1
AV1
AUDIO
IN
DIGITAL HD
L-5
R-5
VGA IN
HDMI2-IN HDMI1-IN
S-VIDEO IN
VIDEO IN
AUDIO IN
R-3
R-4L-4Pr/Cr-2Pb/Cb-2Y-2
AUDIO IN
AC IN
DIGITAL
AUDIO OUT
75Ù ANT.
SERVICE
