Page.50.
More operation instructions (such as PTZ control, coaxial camera menu setting ,snapshot,
recording and playback etc), please refer to“3.3.6 CVI camera test”
3.3.8 AHD camera test

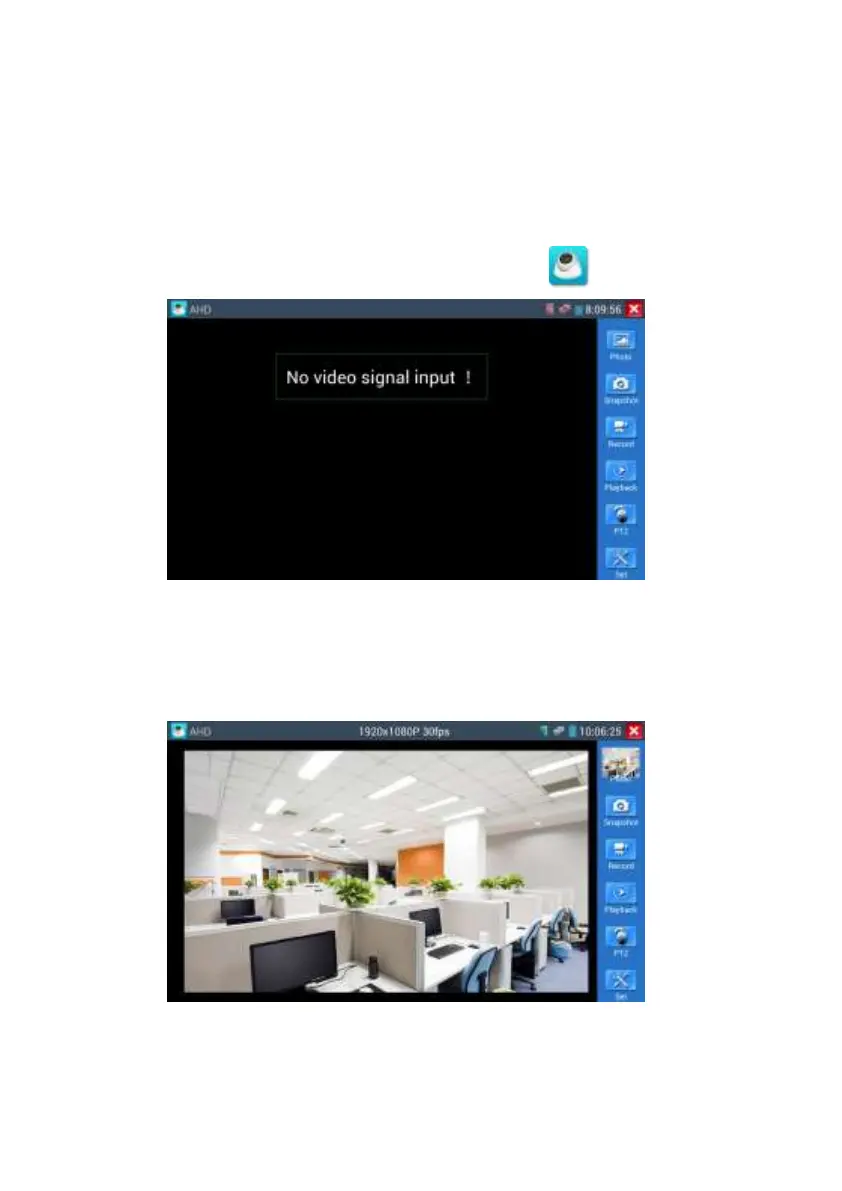

AHD camera, AHD dome camera test and PTZ control, Click icon to enter
When AHD signal input, the tester will display the image resolution on the top bar. Double-taps
on the screen to make the image displayed full screen.
The tester supports resolution as follows:
1280x720P 25FPS / 1280x720P 30FPS / 1920x1080P 25FPS / 1920x1080P 30FPS
(1) Coaxial PTZ control
