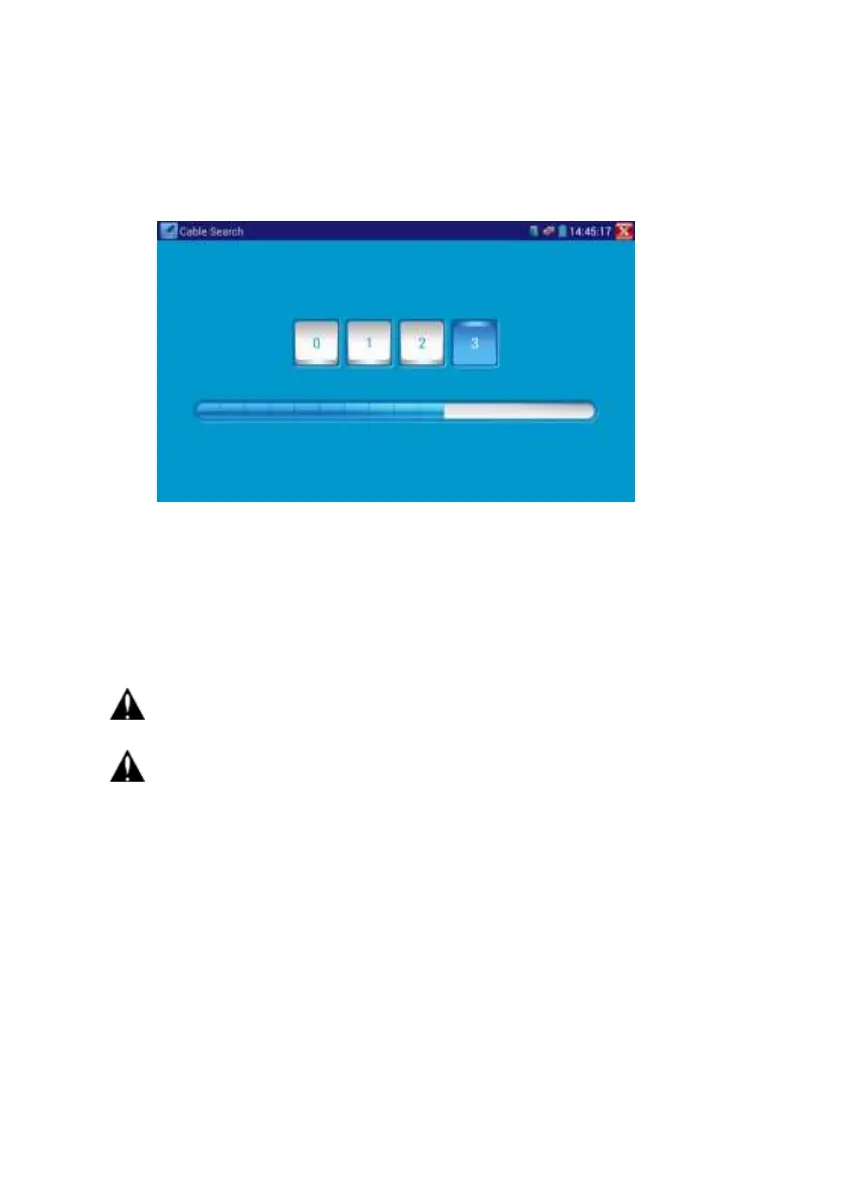

Use the blue Combination cable identifier and network cable tester’s copper pointer to touch all
the cables in the bundle .
You are searching at the other end. The cable that gives off the loudest tone is the cable
connected to the tester. Press the + or – buttons on your blue cable identifier to adjust the
volume
Note:Install two AAA batteries in your blue Cable Identifier.
Note:While the cable tracer is receiving the audio signal from the tester, it may be
induced into adjacent or crossing cables; however, the cable that makes the loudest
noise is the one that’s connected to the meter.
Application
It’s convenient for people to find out the other end of the cable from the messy cables in
security maintenance and network engineering.
While searching BNC cable, connect one port of the alligator clips to the copper core or copper
net of the BNC cable, the other one to connect the earth wire (barred windows).
