Vitrek V4 – Electrical Safety Tester USER MANUAL
10
22 SENSE- & Return
Terminal
SENSE- Terminal is a voltage terminal for Ground Bond test, and Return Terminal is
for all test.

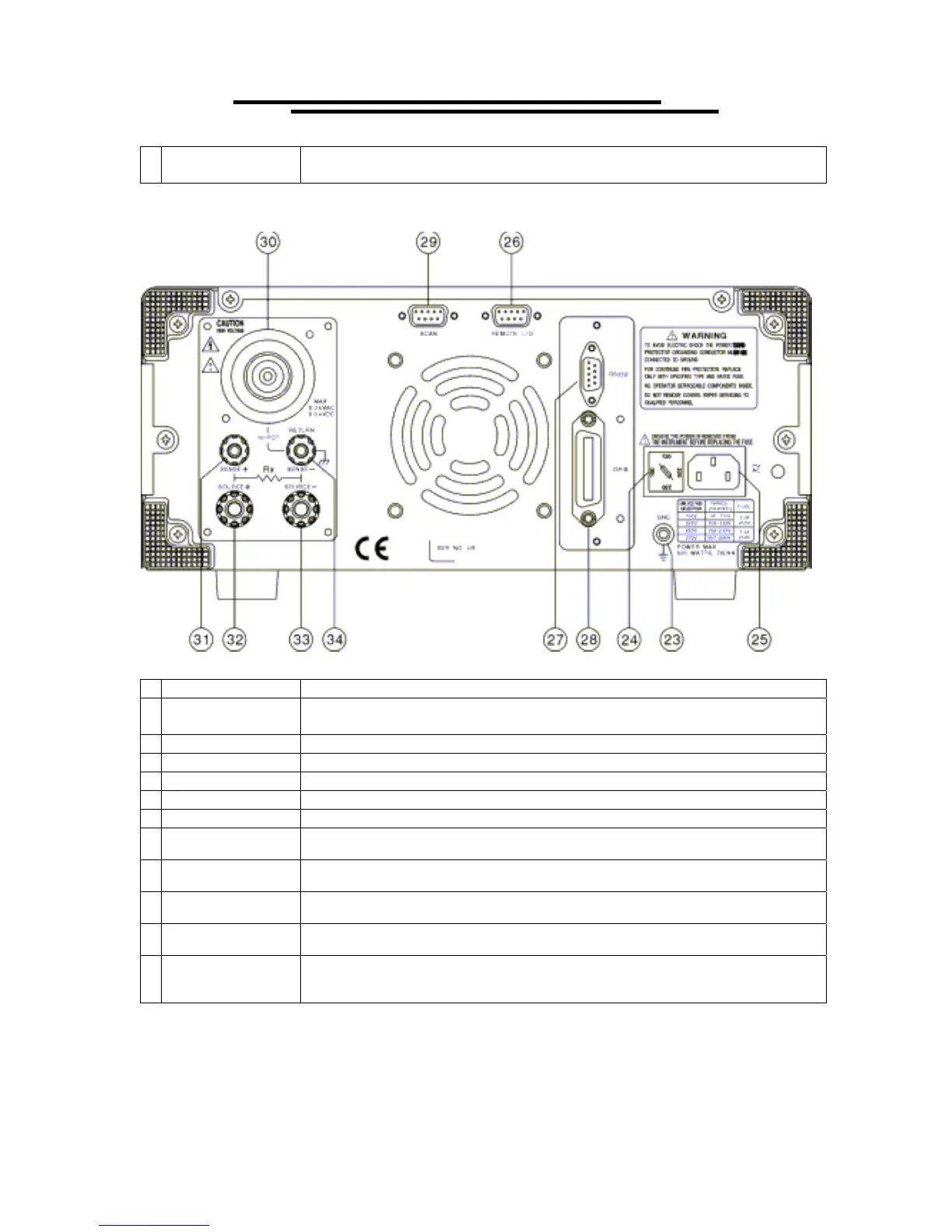

4-2. Rear Panel
*The instrument can be used together with scanner box of SHB-001-1 & SHB-001-2.
23 Ground Terminal Connect Ground terminal to the earth ground.
24 Fuse Holder with
Voltage Selector
To change AC source voltage, pull the fuse holder and rotate it to the proper value.
25 AC Inlet Connect the AC power line to the inlet.
26 Remote Interface The remote interface performs all the functions of PLC control.
27 RS232 Terminal D-SUB 9 pin connector, Input/Output connector for RS232.
28 GPIB Terminal Blue 24 connector, Input/Output connector for IEE-488.
29 Scanner Interface D-sub 9 pins female connector for scanner box.
30
High Voltage Output
on rear panel
High voltage output terminal.
31
Sense + Terminal on
rear panel
Voltage terminal for Ground Bond test.
32
Source + Terminal on
rear panel
High current terminal for Ground Bond test.
33
Source - Terminal on
rear panel
High current terminal for Ground Bond test.
34
Sense - Terminal &
Return Terminal on
rear panel
Sense - terminal is a voltage terminal for Ground Bond test, Return terminal is for all
tests.
