Views of Projector Parts

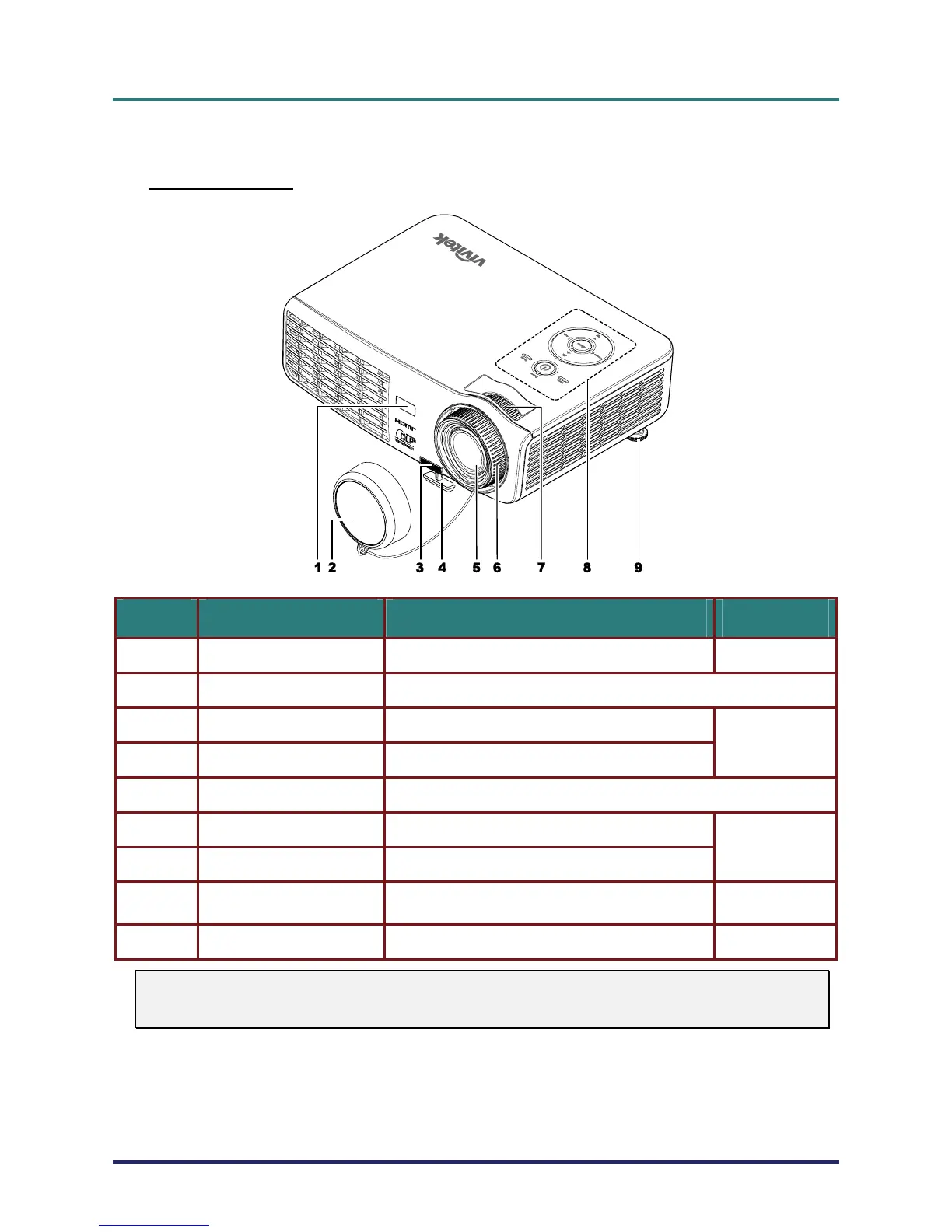

Front-right View
ITEM LABEL DESCRIPTION SEE PAGE:
1.
IR receiver Receive IR signal from remote control
6
2.
Lens cap Protect lens when not in use
3.
Height-adjuster button Push to release height adjuster
4.
Height adjuster Adjusts level of projector
14
5.
Lens Projection Lens
6.
Focus ring Focuses the projected image
7.
Zoom ring Enlarges the projected image
15
8.
Function keys
See Top view—On-screen Display (OSD) but-
tons and LEDs.
3
9.
Height adjuster Adjusts level of projector
14
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
– 2 –
