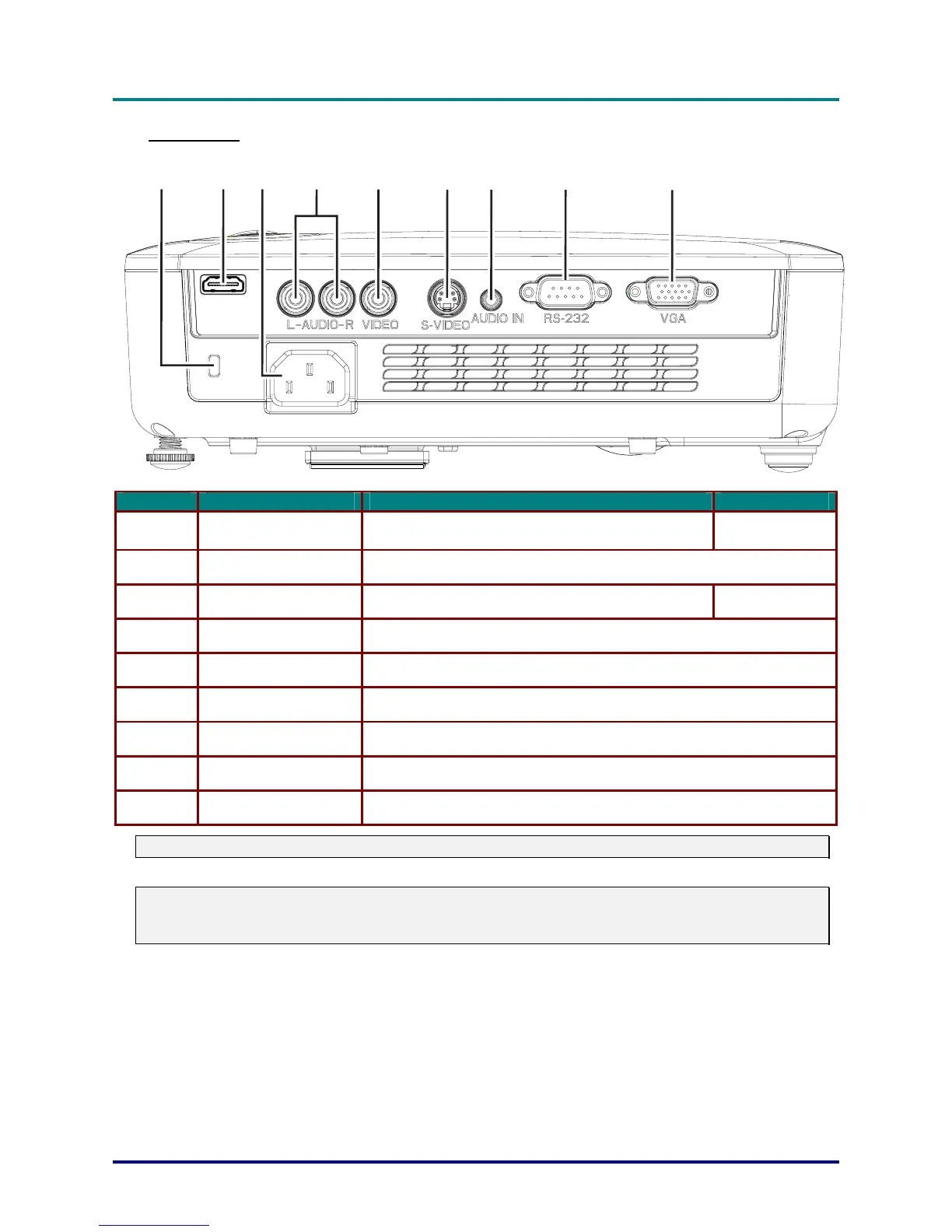

Rear view
1
2
3
4
5
6
7
9
HDMI
8
ITEM LABEL DESCRIPTION SEE PAGE:
1. Kensington Lock
Secure to permanent object with a Kensington®
Lock system
39
2. HDMI (*) Connect the HDMI cable from a HDMI device
3. AC IN Connect the POWER cable 10
4. AUDIO IN (L and R) Connect the audio cables from a audio device
5. VIDEO IN Connect the composite cable from a video device
6. S-VIDEO IN Connect the S-Video cable from a video device
7. AUDIO IN Connect an AUDIO cable from the input device
8. RS-232 Connect RS-232 serial port cable for remote control
9. VGA Connect the RGB cable from a computer and components
Note: (*) Not available in D516 / D517.
Note:
If your video equipment has both S-VIDEO and RCA jacks (composite video) connect to the
S-VIDEO connector. S-VIDEO provides a better quality signal.
