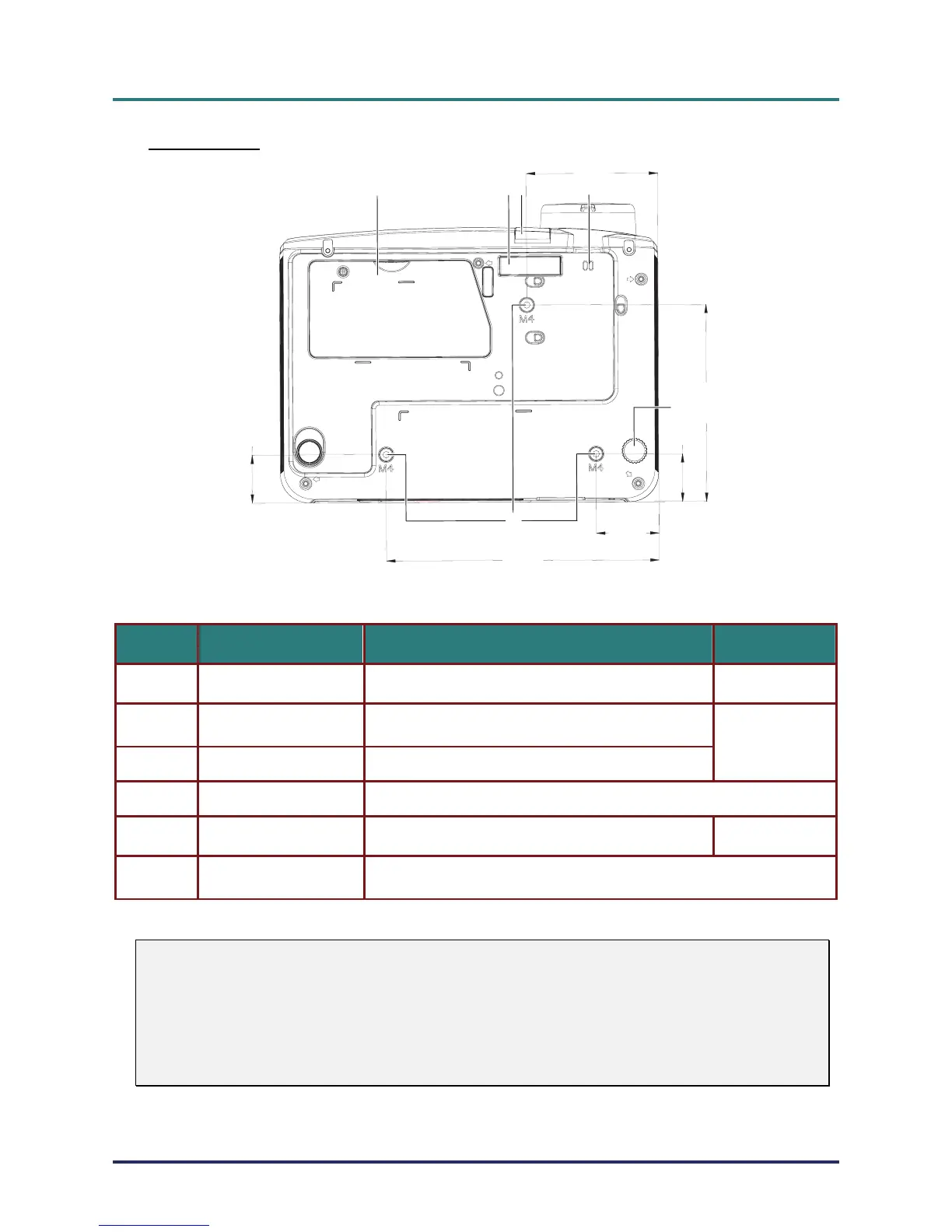

Bottom view
43.20mm
188.20mm
90.70mm
33.20mm
136.20mm
33.20mm
1
2
3
4
5
6
ScrewType:4M
Msl m
Msl m
aximum crew ength m
inimum crew ength m
:8.0
: 6.0
ITEM LABEL DESCRIPTION SEE PAGE:
1.
Lamp cover Remove when changing the lamp.
35
2.
Height adjustor
Adjuster drops down when adjuster button is
pushed.
3.
Height adjustor button Push to release adjustor.
14
4.
Lens cap hook To fasten the lens cap cover
5.
Tilt adjustor Rotate adjuster lever to adjust angle position.
14
6.
Ceiling support holes
Contact your dealer for information on mounting the projector on a
ceiling
Note:
When installing, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 6 mm (0.23 inch).
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount
load capacity must exceed the weight of the installed equipment, and as an additional precaution
be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a
period of 60 seconds.
