EN-10
1
2
3
4
5
6
4
HD WDR Pro
HD WDR Pro
HD WDR Pro
Alignment Mark
C Mark

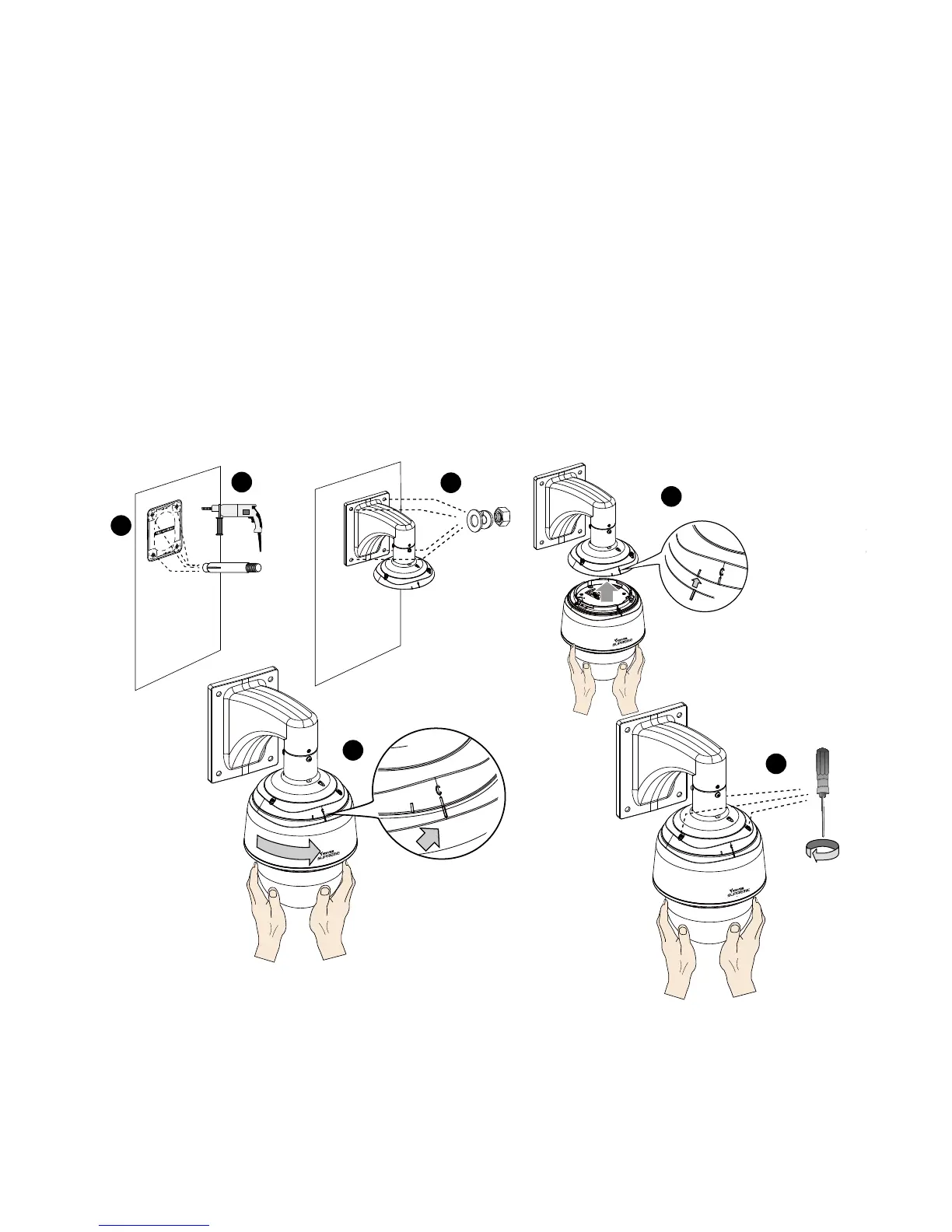

1. The camera weighs 3.66kg. Select a rigid mounting location to prevent vibration to
the camera. Attach the alignment sticker to the wall.
2. Drill 4 pilot holes (10mm in diameter and 4cm deep) into the wall, and then hammer
in threaded anchors. Note that you should hammer the anchors with hex nuts on
them so that the threaded poles will not be deformed! If preferred, drill another hole
for routing cables.
3. Secure the wall mount bracket to wall using 4 sets of captive washers and nuts.
4. Align the camera body with the top section. Align the alignment mark on the camera
with that on the interface section. Push the camera up to match the top section.
5. Rotate the camera clockwise until its alignment mark is aligned with the "C" mark.
6. Use the included T25 stardriver to tighten the 3 anti-tamper screws from the top.
Make sure all parts have been securely tightened.
3-3-2. Mounting with Ethernet & I/O Wires
