3-3. Mounting the Network Camera
NOTE:
Before mounting the camera, install an SD card if you prefer recording to local storage.
1
2
3
5
4
HD WDR Pro

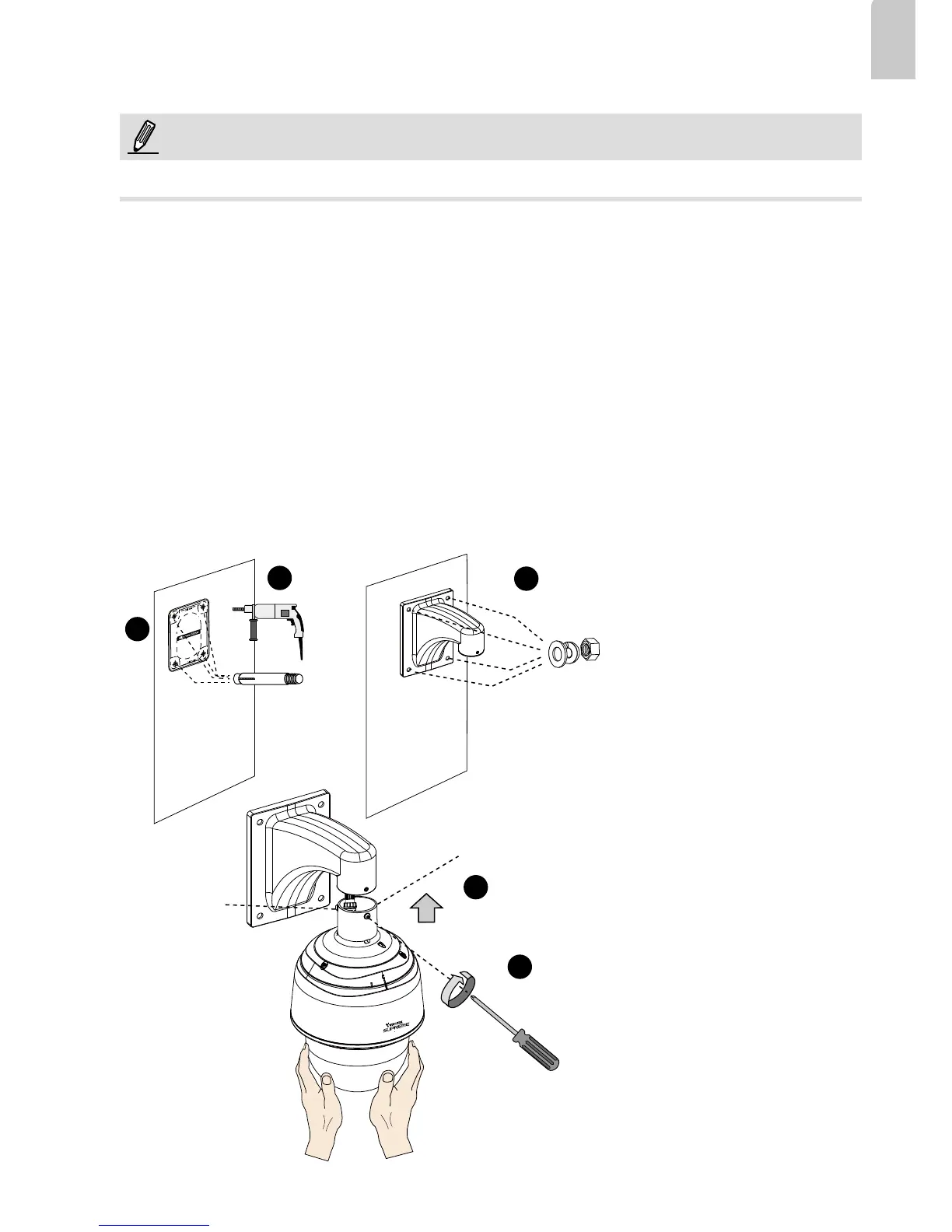

1. The camera weighs 3.66kg. Select a rigid mounting location to prevent vibration to
the camera. Attach the alignment sticker to the wall.
2. Drill 4 pilot holes (10mm in diameter and 4cm deep) into the wall, and then hammer
in threaded anchors. Note that you should hammer the anchors with hex nuts on
them so that the threaded poles will not be deformed! If preferred, drill another hole
for routing cables.
3. Secure the wall mount bracket to wall using 4 sets of captive washers and nuts.
4. Align the camera with the wall mount bracket.
5. Tighten 3 included screws using a Phillips screwdriver. Make sure all parts have been
securely tightened.
3-3-1. Mounting with Ethernet Connection Only
To Next Page
