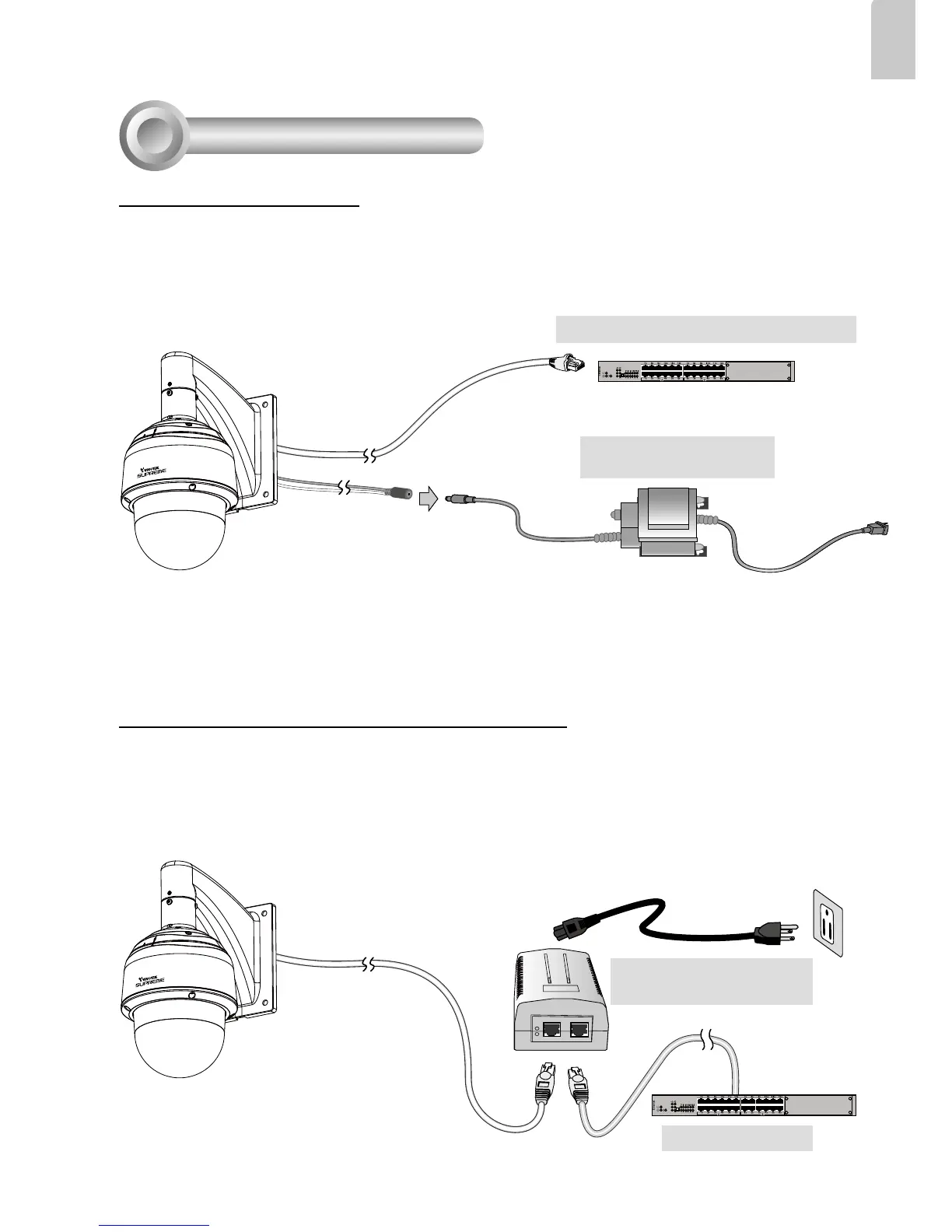

1. Connect the Network Camera's Ethernet cable (CAT5e) to a PoE Plus switch. A 30W
PoE output port alone can not drive the onboard heater, and hence if using the PoE
switch alone, the application does not apply in low-temperature condition. The 30W PoE
plus can only drive the camera when it is working at a temperature higher than -5ºC.
HD WDR Pro
When using a non-PoE switch
Use a High Power PoE power injector (separately purchased) capable of 60W output to
connect between the Network Camera and a non-PoE switch. Sufcient power is required
for low temperature conditions when the onboard heater is activated.
Non-PoE Switch
High Power PoE Power
Injector
2. Connect the power wires to an AC 24V power adaptor (user-supplied). The AC 24V
adapter can drive the camera and the onboard heater.
You can connect both power sources for redundancy in power supply.
Power over Ethernet (High Power PoE)
General Connection
AC 24V 3.5A Adapter
(User-supplied)
IEEE 802.3at PoE Switch (30W output)
and / or
To Next Page
