Vivotek SD8363E User Manual

EN-2
Inner View
Board-to-board
Connector
Lens
Outer View
Physical Description
2
Ethernet 10/100
RJ45 Plug
Spring Contacts for
Dehumidier
General I/O
Terminal Block
SD/SDHC/SDXC Card Slot
Ethernet
DI GND
DI4
DI3
DI2
DI1
DO2
DO1
DO+(12V)
AC24V
AC24V
Reserved
MIC IN
Line OUT
Audio GND
RS485-
RS485+
Status LED
Network LED
Reset Button
Interface Section
Camera Body

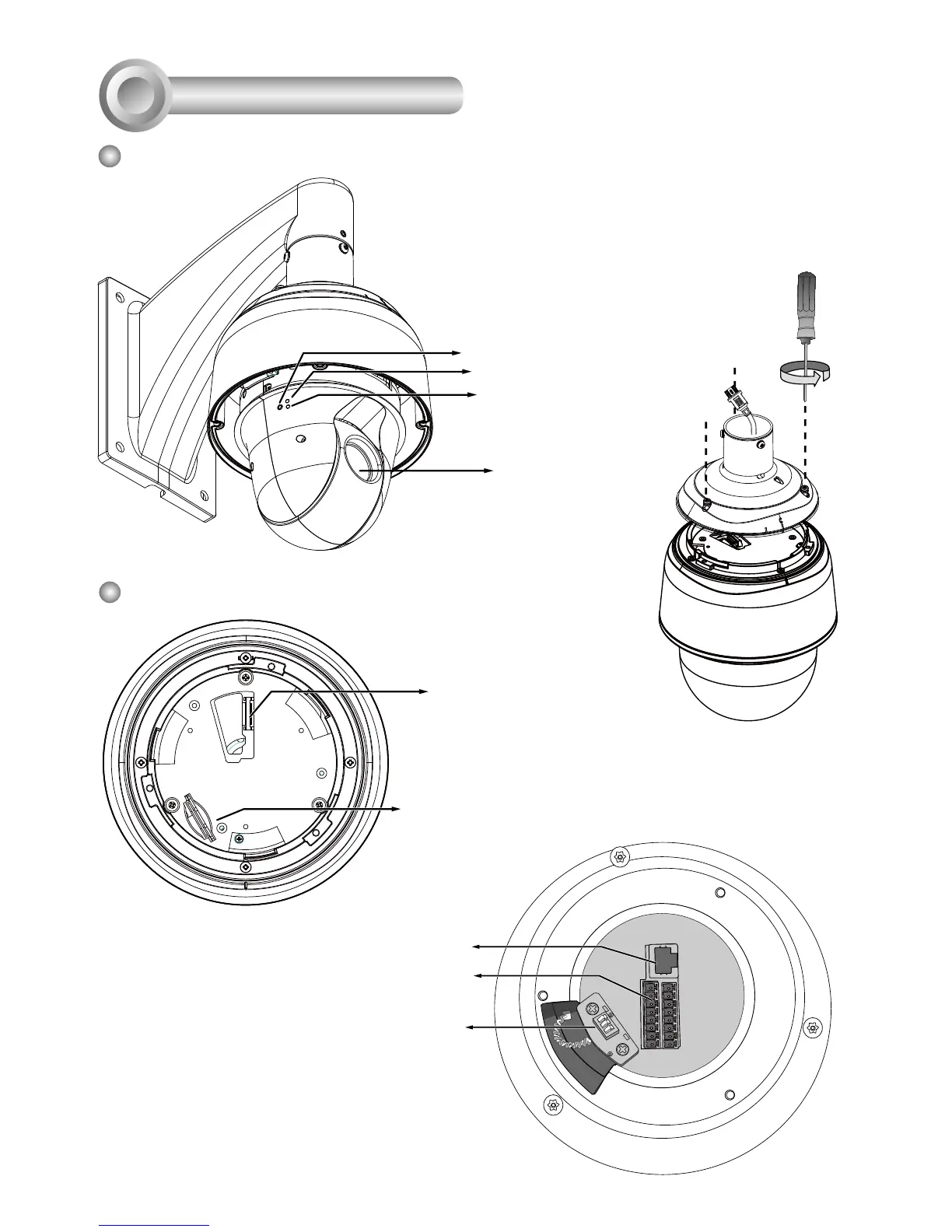

This drawing shows a camera with its dome
cover removed.
The SD card slot is accessed
by removing the top section
using the T25 stardriver.
