Vizio E3D420VX User Manual

1
1

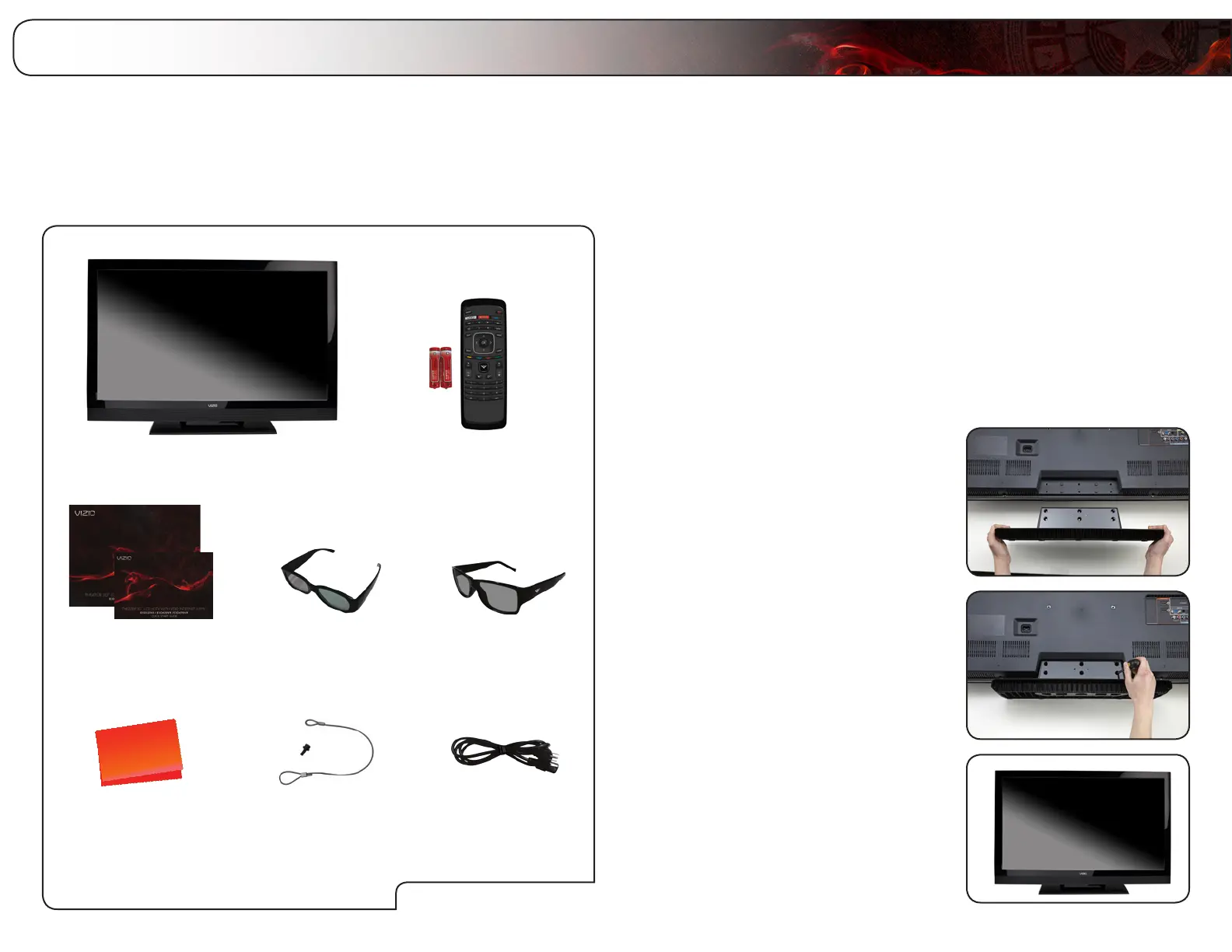

Installing the TV
Inspecting the Package Contents
Before installing your new TV, take a moment to inspect the package contents.
Use the images below to ensure nothing is missing or damaged.
When you have completed your inspection, install the TV.
Cleaning Cloth
VIZIO 3D LED LCD HDTV with Stand
Installing the TV
After removing the TV from the box and inspecting the package contents you can
begin installing the TV. Your TV can be installed in two ways:
• Onaatsurface,usingtheincludedstand
• Onawall,usingaVESA-standardwallmount(notincluded)
Installing the TV Stand
Your TV includes a stand designed to support the weight of the TV and keep it
from falling over. However, the TV can still fall over if:
• Itisplacedonanuneven,unstable,ornon-levelsurface
• Itispushed,pulled,orotherwiseimproperlymoved
• IfanearthquakeoccursandtheTVisnotproperlysecured
To install the TV stand:
1. Place the TV screen-down on a clean,
flat surface. To prevent scratches or
damage to the screen, place the TV on
a soft surface, such as carpet, rug, or
blanket.
2. Using a Phillips-head screwdriver,
attach the base to the TV by inserting
and tightening the included screws.
3. Move the TV with attached stand into
an upright position and place on a flat,
level, and stable surface.
PackageContents
Power CordSafety Cable
(E3D420VX & E3D470VX only)
Remote Control with
Batteries
User Manual and
Quick Start Guide
1 Pair Basic
Theater 3D Glasses
1 Pair Premium
Theater 3D Glasses

Vizio E3D420VX Specifications

General

Child lock	No
Plug and Play	Yes
Image formats supported	JPEG XR
Video formats supported	MPEG
Display diagonal	42 \
Display technology	LCD
Supported video modes	1080p
Contrast ratio (dynamic)	150000:1
Display number of colors	1.073 billion colors
Supported graphics resolutions	1920 x 1080 (HD 1080)
Certification	CSA, CSA-US, FCC Class B, HDMI V1.4 incl. CEC. ARC, VIZIO PQA, VIZIO AQACSA, CSA-US, FCC Class B, HDMI V1.4 incl. CEC. ARC, VIZIO PQA, VIZIO AQA
Wi-Fi standards	Wi-Fi 4 (802.11n)
Audio (L/R) out	1
HDMI ports quantity	3
SCART ports quantity	0
USB 2.0 ports quantity	2
Product color	Black
Panel mounting interface	200 x 200 mm
Backlight type	CCFL
Power consumption (standby)	1 W
Power consumption (typical)	93 W
RMS rated power	10 W
Tuner type	Digital
Digital signal format system	ATSC

Weight and Dimensions

Depth (without stand)	228 mm
Width (without stand)	1021 mm
Height (without stand)	701 mm
Weight (without stand)	15013 g
