E3D320VX/E3D420VX/E3D470VX
AdjustingthePictureSizeandPosition
When displaying an image from the HDMI or RGB input, the size and position of
the display image can be adjusted.
To adjust the picture size and position:
1. Ensure the input is set to HDMI or
RGB.
2. From the Picture Settings menu, use
the Arrow buttons on the remote to
highlight More, then press OK.
3. Use the Arrow buttons on the remote
to highlight Size & Position, then

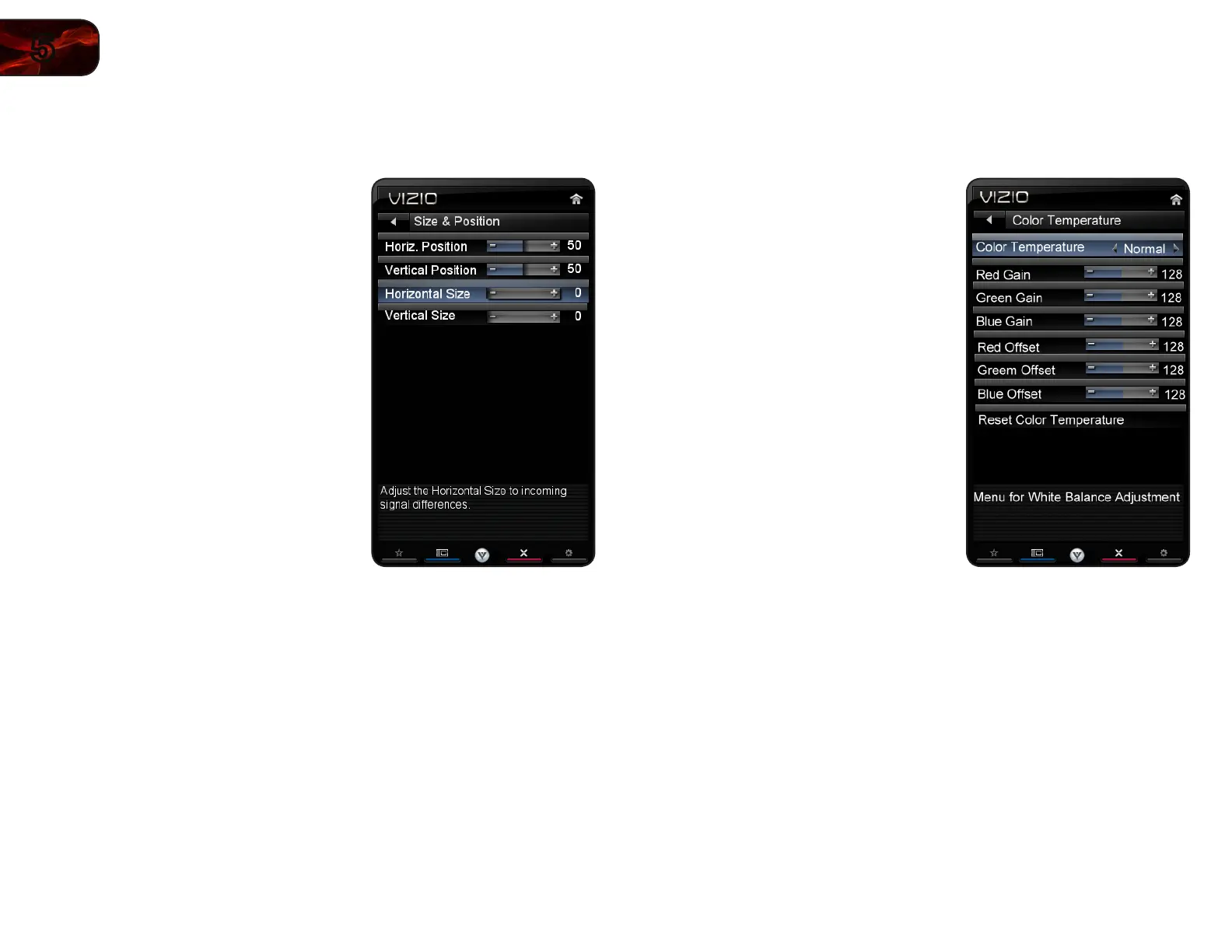

press OK. The Size & Position menu is
displayed.
4. Use the Arrow buttons to highlight
the setting you wish to adjust, then
press Left/Right Arrow to change the
setting:
• AutoAdjust-Automatically
adjustsdisplayimagetooptimal
sizeandposition.(RGBinputonly.)
• Horiz.Position-Adjuststhe
horizontal(left/right)positionofthe
displayimage.
• VerticalPosition-Adjuststhevertical(up/down)positionofthe
displayimage.
• HorizontalSize-Adjuststhewidthofthedisplayimage.
• VerticalSize-Adjuststheheightofthedisplayimage.
• FineTune-Adjuststheheightofthedisplayimage.(RGBinputonly.)
5. When you have finished adjusting the color temperature, press the EXIT
button on the remote.
AdjustingtheColorTemperature
Adjusting the color temperature will change the “warmness” or “coolness” of the
white areas of the picture.
To adjust the color temperature:
1. From the Picture Settings Menu, use
the Arrow buttons to highlight More,
then press OK.
2. Use the Arrow buttons on the remote
to highlight Color Temperature, then
press OK. The Color Temperature
menu is displayed.
3. Use the Arrow buttons on the remote
to highlight Color Temperature, then
use the Left/Right Arrow buttons to
change the color temperature preset:
• Normalisoptimizedfortelevision
viewing.
• Coolproducesablue-hued
picture.
• Computeroptimizesthepicture
foruseasaPCmonitor.
• Customallowsyoutomanuallychangeeachofthecolortemperature
settings:
Red/Green/Blue Gain - Adjusts the amount of each color in the
display.
Red/Green/Blue Offset - Adjusts the position of each color in the
display.
4. If you want to reset the color temperatures to the factory default settings,
highlight Reset Color Temperature and press OK.
5. When you have finished adjusting the color temperature, press the EXIT
button on the remote.

Vizio E3D420VX Specifications

General

Child lock	No
Plug and Play	Yes
Image formats supported	JPEG XR
Video formats supported	MPEG
Display diagonal	42 \
Display technology	LCD
Supported video modes	1080p
Contrast ratio (dynamic)	150000:1
Display number of colors	1.073 billion colors
Supported graphics resolutions	1920 x 1080 (HD 1080)
Certification	CSA, CSA-US, FCC Class B, HDMI V1.4 incl. CEC. ARC, VIZIO PQA, VIZIO AQACSA, CSA-US, FCC Class B, HDMI V1.4 incl. CEC. ARC, VIZIO PQA, VIZIO AQA
Wi-Fi standards	Wi-Fi 4 (802.11n)
Audio (L/R) out	1
HDMI ports quantity	3
SCART ports quantity	0
USB 2.0 ports quantity	2
Product color	Black
Panel mounting interface	200 x 200 mm
Backlight type	CCFL
Power consumption (standby)	1 W
Power consumption (typical)	93 W
RMS rated power	10 W
Tuner type	Digital
Digital signal format system	ATSC

Weight and Dimensions

Depth (without stand)	228 mm
Width (without stand)	1021 mm
Height (without stand)	701 mm
Weight (without stand)	15013 g
