E3D320VX/E3D420VX/E3D470VX
Adjusting the Audio Settings

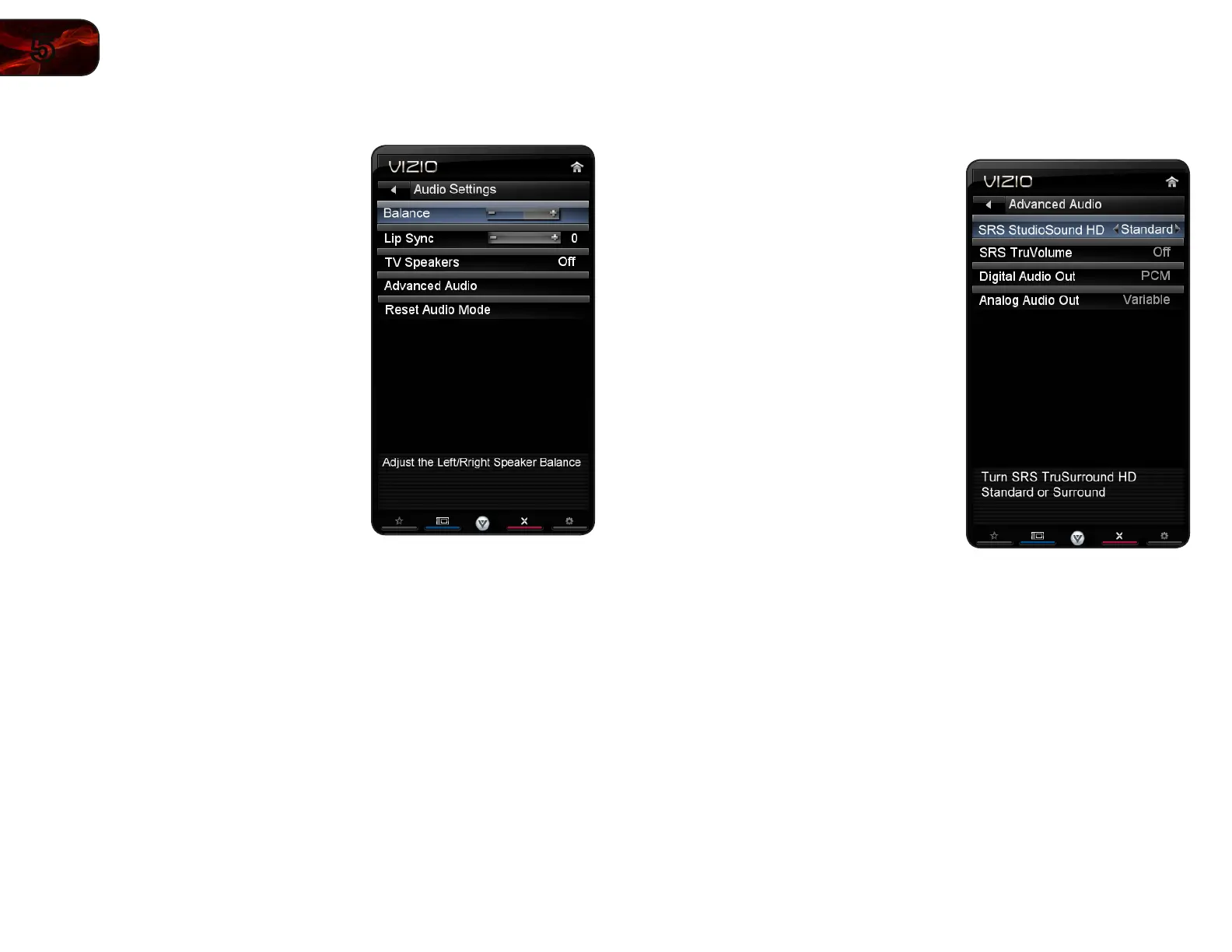

To adjust the audio settings:
1. Press the MENU button on the remote.
The on-screen menu is displayed.
2. Use the Arrow buttons on the remote
to highlight Audio and press OK. The
Audio Settings menu is displayed.
3. Use the Arrow buttons to highlight
the setting you wish to adjust, then
press Left/Right Arrow to change the
setting:
• Balance-Adjuststheloudnessof
theaudiooutputfromtheleftand
rightspeakers.
• LipSync-Adjuststhesynchroni-
zationbetweenthedisplayimage
andtheaccompanyingaudio
track.
• TVSpeakers-Turnsthebuilt-in
speakersonoroff.
• AdvancedAudio-See AdjustingtheAdvancedAudioSettings on
page18.
• EqualizerSettings-Adjuststheboostorattenuationofdifferent
frequencies.(ThissettingisonlyavailablewhenSRSStudioSound
HDissettoStandard.)Changetheequalizerpresetsbyselecting
Flat,Rock,Pop,Classical,orJazz.Tochangetheequalizersettings
yourself,highlightEQModeandpressOK.
• ResetAudioMode-Restorestheaudiosettingstothefactory
defaults.See ResettingtheAudioSettings onpage19.
4. When you have finished adjusting the audio settings, press the EXIT button
on the remote.
AdjustingtheAdvancedAudioSettings
To adjust the advanced audio settings:
1. From the Audio Settings Menu, use the
Arrow buttons to highlight Advanced
Audio, then press OK. The Advanced
Audio menu is displayed.
2. Use the Arrow buttons to highlight
the setting you wish to adjust, then
press Left/Right Arrow to change the
setting:
• SRSStudioSoundHD-
StudioSoundHD™isafeature-rich
surroundsoundsolutionwhich
deliversanimmersivesurround
soundexperiencefromtheTV’s
internalspeakers.Additionally,
StudioSoundHDcompletesthe
entertainmentexperienceby
maintainingasteadyvolume
whilewatchingprogrammingand
movies,providingdeep,richbass,
anddeliveringcrispdetailsand
clear,intelligibledialog.Select
SurroundorStandard.
• SRSTruVolume-TruVolume™
intelligentlynormalizesvolume
uctuationsduetotelevision
commercialsorchannelchanges.
SelectOnorOff.
• DigitalAudioOut-ChangesthetypeofprocessingfortheOptical
outputwhenconnectedtoahometheateraudiosystem.SelectDolby
Digital,PCM,orOff.
• AnalogAudioOut-Setsthevolumecontrolpropertiesfortheanalog
RCA(red/white)connectorswhenconnectedtoahometheateraudio
system.SelectVariabletocontroltheexternalspeakers’volume
fromtheTV’svolumecontrols,orselectFixedtocontroltheexternal
speakers’volumefromyourhometheatersystemcontrols.
3. When you have finished adjusting the advanced audio settings, press the
EXIT button on the remote.

Vizio E3D420VX Specifications

General

Child lock	No
Plug and Play	Yes
Image formats supported	JPEG XR
Video formats supported	MPEG
Display diagonal	42 \
Display technology	LCD
Supported video modes	1080p
Contrast ratio (dynamic)	150000:1
Display number of colors	1.073 billion colors
Supported graphics resolutions	1920 x 1080 (HD 1080)
Certification	CSA, CSA-US, FCC Class B, HDMI V1.4 incl. CEC. ARC, VIZIO PQA, VIZIO AQACSA, CSA-US, FCC Class B, HDMI V1.4 incl. CEC. ARC, VIZIO PQA, VIZIO AQA
Wi-Fi standards	Wi-Fi 4 (802.11n)
Audio (L/R) out	1
HDMI ports quantity	3
SCART ports quantity	0
USB 2.0 ports quantity	2
Product color	Black
Panel mounting interface	200 x 200 mm
Backlight type	CCFL
Power consumption (standby)	1 W
Power consumption (typical)	93 W
RMS rated power	10 W
Tuner type	Digital
Digital signal format system	ATSC

Weight and Dimensions

Depth (without stand)	228 mm
Width (without stand)	1021 mm
Height (without stand)	701 mm
Weight (without stand)	15013 g
