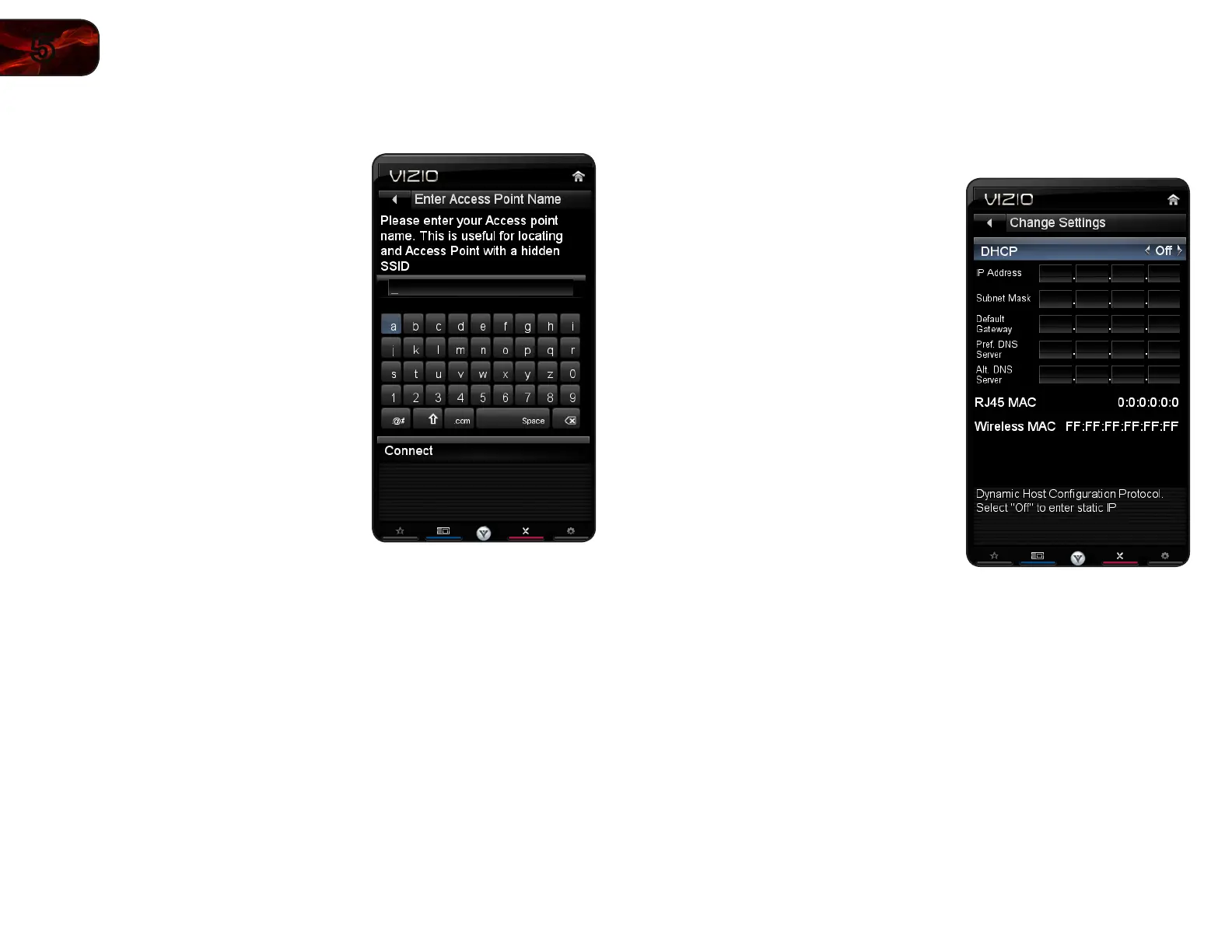

To connect to a wireless network whose network name (SSID) is not being
broadcast:
1. Press the MENU button on the remote.
The on-screen menu is displayed.
2. Use the Arrow buttons on the remote
to highlight the Network icon and
press OK. The Network Connection
menu is displayed.
3. Highlight Enter Access Point Name
and press OK.
4. Using the QWERTY Keypad on the
remote, enter your network’s name
(SSID), then highlight Connect and
press OK. (If you would like to use the
on-screen keyboard instead, highlight
Show Keyboard and press OK.)
5. Using the QWERTY Keypad on
the remote, enter your network’s
password, then highlight Connect and
press OK. (If you would like to use the
on-screen keyboard instead, highlight
Show Keyboard and press OK.)
6. Press the EXIT button on the remote.
ChangingtheAdvancedNetworkSettings
Advanced users can fine-tune the network settings using the Manual Setup
feature.
To change advanced network settings:
1. From the Network Connection menu,
highlight Manual Setup and press
OK. The Change Settings menu is
displayed.
2. Use the Arrow and OK buttons to
adjust each setting:
• DHCP-(DynamicHost
CongurationProtocol)Thissetting
mustbeturnedOfftochangeany
oftheothersettings.
• IPAddress-TheIPaddress
assignedtotheTV.
• SubnetMask-Thesubnetmask.
• DefaultGateway-Yournetwork’s
defaultgatewayaddress.
• Pref.DNSServer-Yourpreferred
domainnameserveraddress.
• AltDNSServer-Youralternatedomainnameserveraddress.
3. If you need the RJ45 (ethernet) MAC address or the Wireless MAC address
to set up your network, these are displayed at the bottom of the Change
Settings menu.
4. Press the EXIT button on the remote.
TestingYourNetworkConnection
To test your network connection:
1. From the Network Connection menu, highlight Test Connection and press
OK.
2. The Test Connection screen displays the connection method, network
name, signal strength, and download speed of your network connection.
3. Press the EXIT button on the remote.

Vizio E3D420VX Specifications

General

Child lock	No
Plug and Play	Yes
Image formats supported	JPEG XR
Video formats supported	MPEG
Display diagonal	42 \
Display technology	LCD
Supported video modes	1080p
Contrast ratio (dynamic)	150000:1
Display number of colors	1.073 billion colors
Supported graphics resolutions	1920 x 1080 (HD 1080)
Certification	CSA, CSA-US, FCC Class B, HDMI V1.4 incl. CEC. ARC, VIZIO PQA, VIZIO AQACSA, CSA-US, FCC Class B, HDMI V1.4 incl. CEC. ARC, VIZIO PQA, VIZIO AQA
Wi-Fi standards	Wi-Fi 4 (802.11n)
Audio (L/R) out	1
HDMI ports quantity	3
SCART ports quantity	0
USB 2.0 ports quantity	2
Product color	Black
Panel mounting interface	200 x 200 mm
Backlight type	CCFL
Power consumption (standby)	1 W
Power consumption (typical)	93 W
RMS rated power	10 W
Tuner type	Digital
Digital signal format system	ATSC

Weight and Dimensions

Depth (without stand)	228 mm
Width (without stand)	1021 mm
Height (without stand)	701 mm
Weight (without stand)	15013 g
