Vizio E3D420VX User Manual

1
3
E3D320VX/E3D420VX/E3D470VX
Installing Your TV for 3D Viewing
For the best viewing experience, VIZIO recommends that you install the TV with
the viewing distance and viewing angle in mind. When viewing 3D content, it is
important that you view the TV straight-on, or some of the 3D effect may be lost.
For your TV, VIZIO recommends:
E3D320VX E3D420VX E3D470VX
Viewing Range: 4 - 6.5 feet 5 - 8 feet 6 - 9 feet
Optimal Distance: 5 feet 6.5 feet 7.5 feet
Illustrations in this section are not drawn to scale. They are for
instructional purposes only.

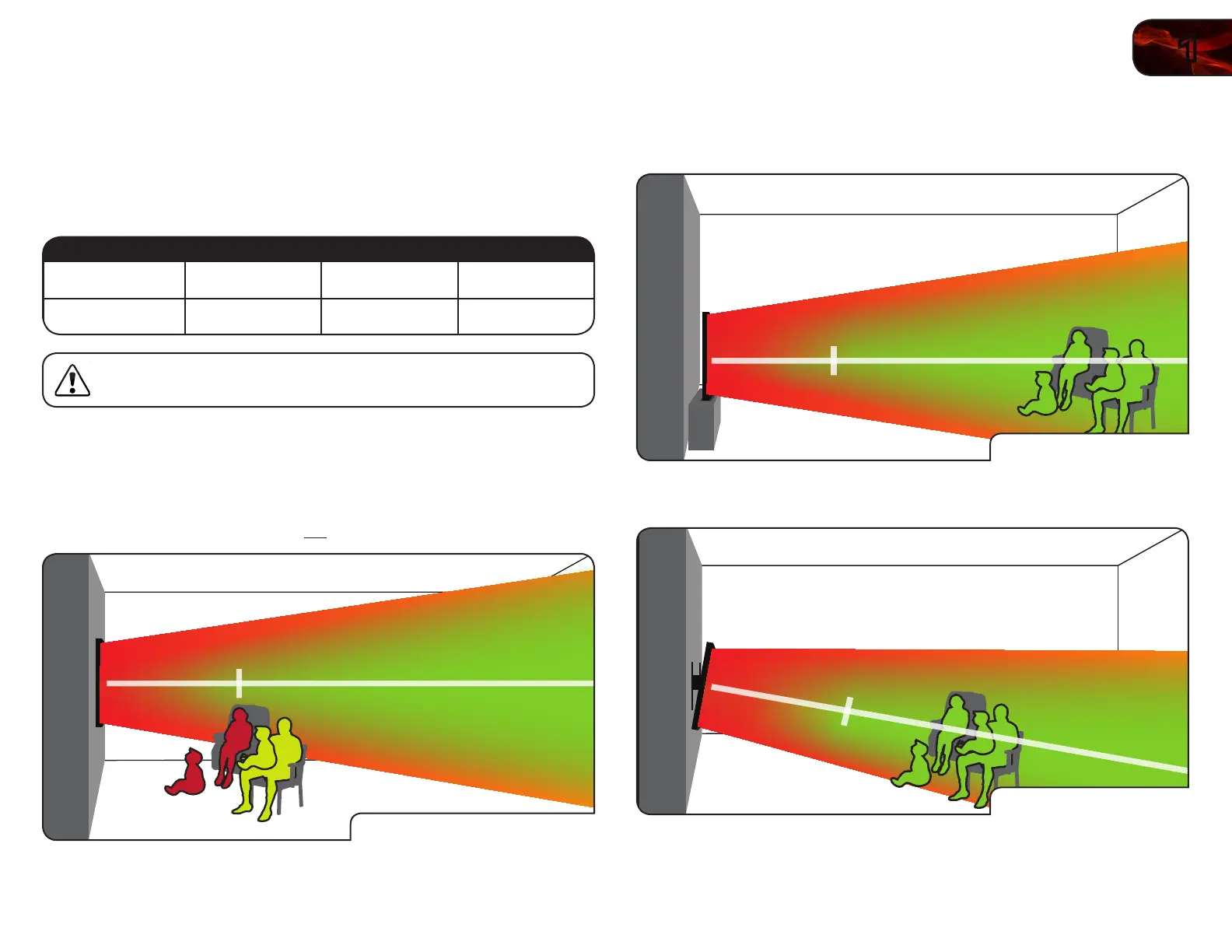

Incorrect 3D Viewing Distance and Angle
In the example below, two of the viewers are sitting too close to the TV for a good
3D effect. In addition, the child on the floor is not seeing the best possible picture
because he/she is looking up at the TV.
The viewers in the example below are not seeing the best 3D picture.
TooClose-Losing3DEffects
Eye Line
Correct 3D Viewing Distance and Angle
In the examples below, all of the viewers are experiencing the best possible 3D
picture quality.
Best3D-TVonStand
Eye Line
In this example, the viewers are sitting at a good distance. They are viewing the
TV straight-on, close to the ideal eye line. They will experience good 3D quality.
Best3D-TiltMounted
Eye Line
In this example, the viewers have mounted the TV on a Tilt Mount. They are at
the correct distance and they are viewing the TV straight-on, close to the ideal
eye line. They will experience good 3D picture quality.

Vizio E3D420VX Specifications

General

Child lock	No
Plug and Play	Yes
Image formats supported	JPEG XR
Video formats supported	MPEG
Display diagonal	42 \
Display technology	LCD
Supported video modes	1080p
Contrast ratio (dynamic)	150000:1
Display number of colors	1.073 billion colors
Supported graphics resolutions	1920 x 1080 (HD 1080)
Certification	CSA, CSA-US, FCC Class B, HDMI V1.4 incl. CEC. ARC, VIZIO PQA, VIZIO AQACSA, CSA-US, FCC Class B, HDMI V1.4 incl. CEC. ARC, VIZIO PQA, VIZIO AQA
Wi-Fi standards	Wi-Fi 4 (802.11n)
Audio (L/R) out	1
HDMI ports quantity	3
SCART ports quantity	0
USB 2.0 ports quantity	2
Product color	Black
Panel mounting interface	200 x 200 mm
Backlight type	CCFL
Power consumption (standby)	1 W
Power consumption (typical)	93 W
RMS rated power	10 W
Tuner type	Digital
Digital signal format system	ATSC

Weight and Dimensions

Depth (without stand)	228 mm
Width (without stand)	1021 mm
Height (without stand)	701 mm
Weight (without stand)	15013 g
