Vizio E3D420VX User Manual

5
13
E3D320VX/E3D420VX/E3D470VX
ChangingtheScreenAspectRatio
The TV can display images in four different modes: Wide, Zoom, Normal, and
Stretch. Each mode displays the picture differently.
To change the screen aspect ratio:
1. Press the MENU button on the remote.
2. Use the Arrow buttons to highlight the Wide icon. Press OK.
3. Use the Arrow buttons to highlight your desired screen mode and
press OK:
• Widestretchesa4:3aspectratiopicturetotheedgesofthescreen.
Sincethepictureisbeingstretched,thedisplayimagemayappear
distorted.Iftheprogramisalreadyformattedforwidescreenviewing
(1.85:1or2.35:1),thenblackbarswillappearonthetopandbottomof
thedisplayimage.
• Zoomexpandsimageswithblackbarstotthescreen.
• Normalpreservesthecontent’soriginalaspectratio.Sincethe4:3
aspectratioisnotlargeenoughtolltheTV’sscreen,blackbarsare
addedtotheleftandrightofthedisplayimage.
• Panoramicexpandsthedisplayimagetollthescreen.Imagesmay
appearwiderthanintended.Ifyouarewatchingwidescreen(1.85:1
or2.35:1)content,blackbarswillstillappearonthetopandbottom
ofthedisplayimage.ThisoptionisonlyavailablewhentheTVis
displayinga480i/480psource.
• Stretchexpandsthedisplayimagetollthescreen.Imagesmay
appearwiderthanintended.Ifyouarewatchingwidescreen(1.85:1
or2.35:1)content,blackbarswillstillappearonthetopandbottom
ofthedisplayimage.ThisoptionisonlyavailablewhentheTVis
displayinga720p/1080i/1080psource.
Setting Up Closed Captioning
Your TV can display closed captions for programs that include them. Closed
captions display a transcription of a program’s dialogue.
If the program you are viewing is not being broadcast with closed
captions, the TV will not display them.
To activate or deactivate closed captions:
1. Press the MENU button on the remote.
The on-screen menu is displayed.

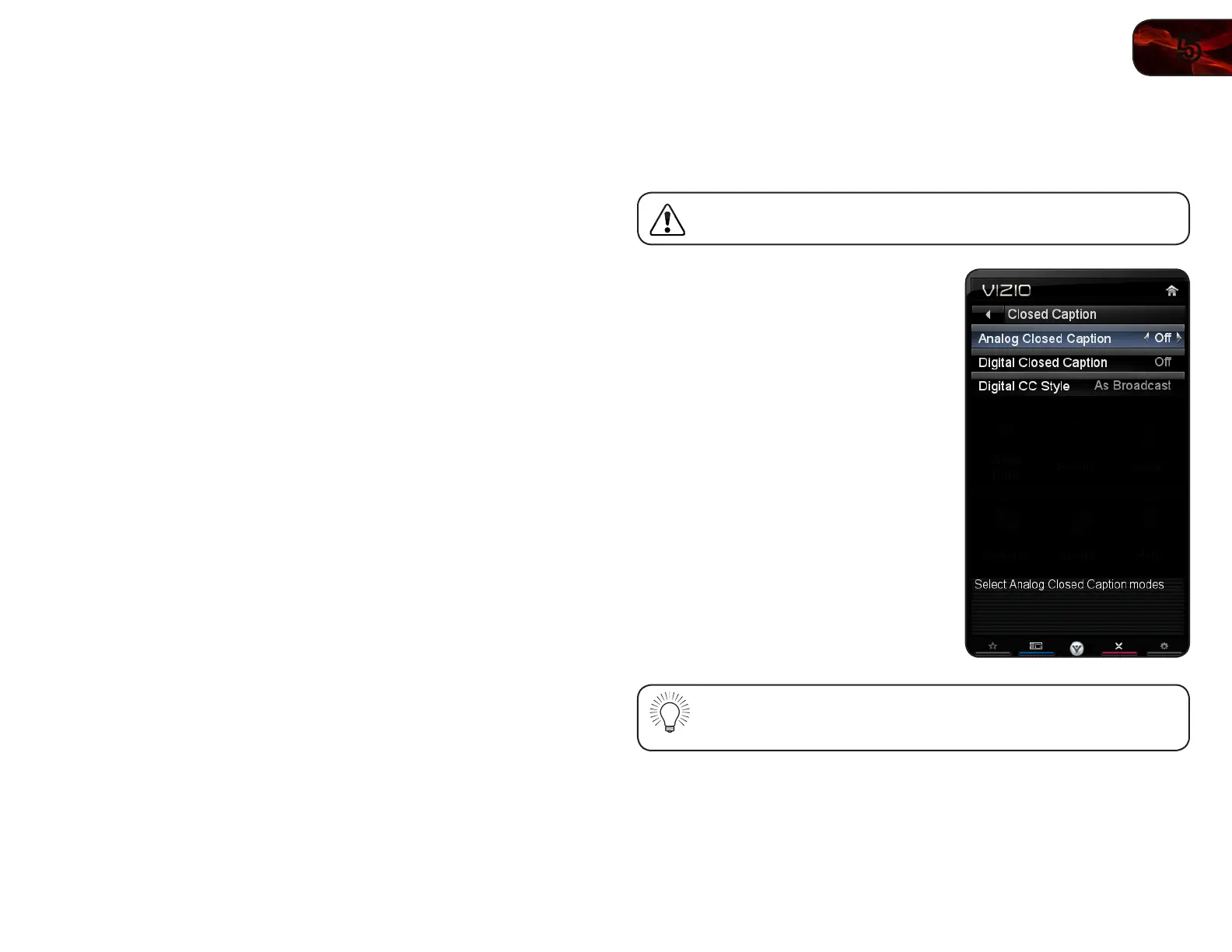

2. Use the Arrow buttons on the remote
to highlight the CC icon and press OK.
The Closed Caption menu is displayed.
3. Use the Arrow buttons on the remote
to highlight the type of closed captions
you wish to see:
• AnalogClosedCaptionfor
analog(NTSC)TVchannels.
• DigitalClosedCaptionfor
digital(ATSC)TVchannels.
4. After highlighting the type of closed
captions you wish to see, use the Left/
Right Arrow buttons on the remote to
select the caption channel you wish to
display, then press EXIT.
Caption channels usually display different languages. For example,
CC1 may display English captions and CC2 may display Spanish
captions.

Vizio E3D420VX Specifications

General

Child lock	No
Plug and Play	Yes
Image formats supported	JPEG XR
Video formats supported	MPEG
Display diagonal	42 \
Display technology	LCD
Supported video modes	1080p
Contrast ratio (dynamic)	150000:1
Display number of colors	1.073 billion colors
Supported graphics resolutions	1920 x 1080 (HD 1080)
Certification	CSA, CSA-US, FCC Class B, HDMI V1.4 incl. CEC. ARC, VIZIO PQA, VIZIO AQACSA, CSA-US, FCC Class B, HDMI V1.4 incl. CEC. ARC, VIZIO PQA, VIZIO AQA
Wi-Fi standards	Wi-Fi 4 (802.11n)
Audio (L/R) out	1
HDMI ports quantity	3
SCART ports quantity	0
USB 2.0 ports quantity	2
Product color	Black
Panel mounting interface	200 x 200 mm
Backlight type	CCFL
Power consumption (standby)	1 W
Power consumption (typical)	93 W
RMS rated power	10 W
Tuner type	Digital
Digital signal format system	ATSC

Weight and Dimensions

Depth (without stand)	228 mm
Width (without stand)	1021 mm
Height (without stand)	701 mm
Weight (without stand)	15013 g
